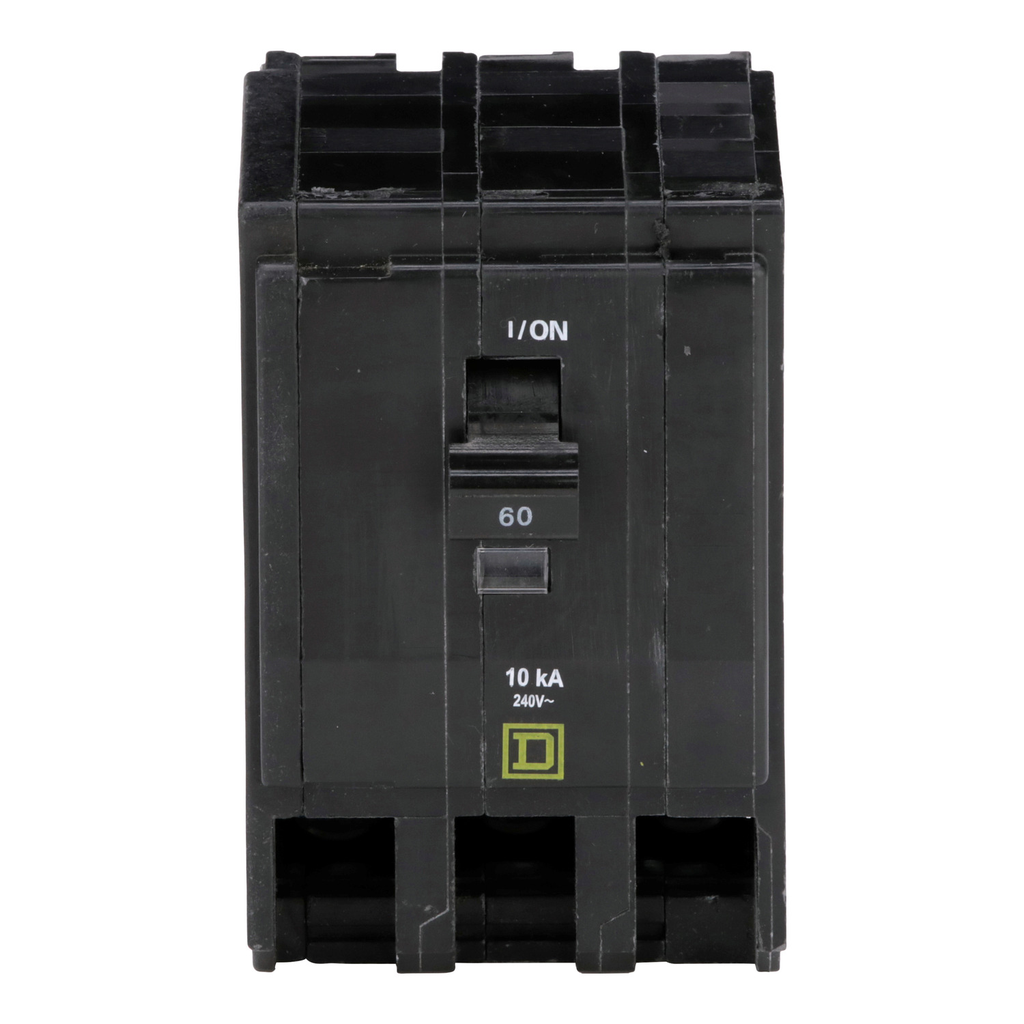

Mini circuit breaker, QO, 60A, 3 pole, 120/240 VAC, 10 kA, plug in mount, ring terminals

Mini circuit breaker, QO, 60A, 3 pole, 120/240 VAC, 10 kA, plug in mount, ring terminals

SQDQO3605273 QO3605273 785901604860
146.92 / EACH
  • Certifications: CSA, UL Listed
  • Circuit Breaker Type: Standard
  • Depth: 2.91 in
  • Height: 3.12 in
  • Line Rated Current: 60 A
  • Mounting Type: Plug-In
  • Short Circuit Current: 10 kA, 5 kA
  • Warranty Length: 18 mth
  • Width: 2.25 in
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick-break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This three pole QO plug in miniature circuit breaker is rated as 60A, 120/240 VAC. This circuit breaker provides 10 kA breaking capacity. This circuit breaker is UL Listed as SWD (switching duty) rated. It is suitable for switching 120 Vac fluorescent lighting loads. A full line of factory installed accessories, such as shunt trips, auxiliary switches and alarm switches are available. The ring tongue connectors will accept one 8 AWG to 2 AWG copper wire. This circuit breaker has a height of 3.12 inches, a width of 2.25 inches and a depth of 2.91 inches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
  • Product Description
  • Specifications
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick-break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This three pole QO plug in miniature circuit breaker is rated as 60A, 120/240 VAC. This circuit breaker provides 10 kA breaking capacity. This circuit breaker is UL Listed as SWD (switching duty) rated. It is suitable for switching 120 Vac fluorescent lighting loads. A full line of factory installed accessories, such as shunt trips, auxiliary switches and alarm switches are available. The ring tongue connectors will accept one 8 AWG to 2 AWG copper wire. This circuit breaker has a height of 3.12 inches, a width of 2.25 inches and a depth of 2.91 inches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
  • Maximum Depth : 2.91 in
  • Product Certifications : UL Listed || CSA
  • Circuit Breaker Application : HACR rated
  • [Ue] Rated Operational Voltage : 120/240 V AC || 240 V AC || 120 V AC || 48 V DC
  • Mounting Mode : plug-in
  • Poles Description : 3P
  • Short-Circuit Current : 10 kA || 5 kA
  • Ambient Air Temperature For Operation : 40 °C
  • Maximum Width : 2.25 in
  • Awg Gauge : AWG 8...AWG 2 copper
  • Maximum Height : 3.12 in
  • Warranty : 18 months
  • Tightening Torque : 4.6-4.6 N.m
  • Range Of Product : QO
  • Breaking Capacity : 10 kA 120/240 V AC 50/60 Hz || 10 kA 240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz || 5 kA 48 V DC
  • Circuit Breaker Type : standard
  • Number Of Spaces Required : 3
  • Electrical Connection : ring tongue
  • Product Or Component Type : miniature circuit-breaker
  • Line Rated Current : 60 A
