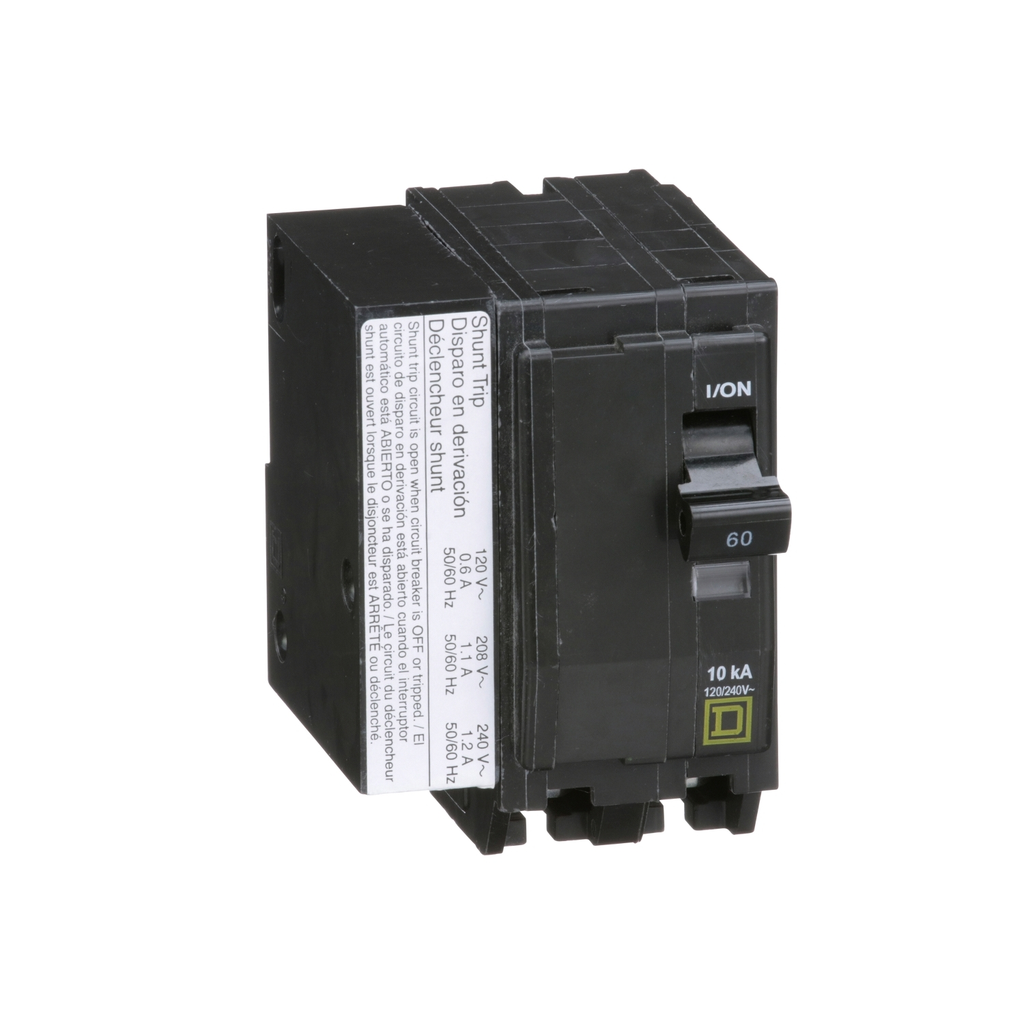

Mini circuit breaker, QO, 60A, 2 pole, 120/240 VAC, 10 kA, plug in mount, AC shunt trip

Mini circuit breaker, QO, 60A, 2 pole, 120/240 VAC, 10 kA, plug in mount, AC shunt trip

SQDQO2601021 QO2601021 785901494034
104.90 / EACH
  • Certifications: CSA, UL Listed
  • Circuit Breaker Type: Standard
  • Depth: 2.91 in
  • Height: 3.12 in
  • Line Rated Current: 60 A
  • Mounting Type: Plug-In
  • Short Circuit Current: 10 kA, 5 kA
  • Warranty Length: 18 mth
  • Width: 2.25 in
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO standard plug on circuit breaker with common trip is rated as 60 A, 120/240 VAC. This breaker has a shut trip. This unit provides 10 kA breaking capacity. A full line of factory installed accessories is also available such auxiliary switches, alarm switches, and shunt trips like the one on this unit. QO breakers use a compact 3/4 inch width design for small system footprint. This QO circuit breaker has a shunt trip. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
  • Product Description
  • Specifications
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO standard plug on circuit breaker with common trip is rated as 60 A, 120/240 VAC. This breaker has a shut trip. This unit provides 10 kA breaking capacity. A full line of factory installed accessories is also available such auxiliary switches, alarm switches, and shunt trips like the one on this unit. QO breakers use a compact 3/4 inch width design for small system footprint. This QO circuit breaker has a shunt trip. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
  • Product Or Component Type : miniature circuit-breaker
  • Tightening Torque : 5-5 N.m 10-25 mm² (AWG 8...AWG 2)
  • Mounting Mode : plug-in
  • Breaking Capacity : 10 kA 120/240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz || 5 kA 48 V DC
  • Short-Circuit Current : 10 kA || 5 kA
  • Maximum Depth : 2.91 in
  • Maximum Width : 2.25 in
  • Circuit Breaker Type : standard
  • Line Rated Current : 60 A
  • Range Of Product : QO
  • Awg Gauge : AWG 8...AWG 2 copper or aluminium
  • Electrical Connection : box lugs
  • [Ue] Rated Operational Voltage : 120/240 V AC || 120 V AC || 48 V DC
  • Ambient Air Temperature For Operation : 40 °C
  • Number Of Spaces Required : 3
  • Warranty : 18 months
  • Maximum Height : 3.12 in
  • Product Certifications : UL Listed || CSA
  • Poles Description : 2P
  • Accessory / Separate Part Type : shunt trip 120/208/240 V AC
  • Circuit Breaker Application : HACR rated
