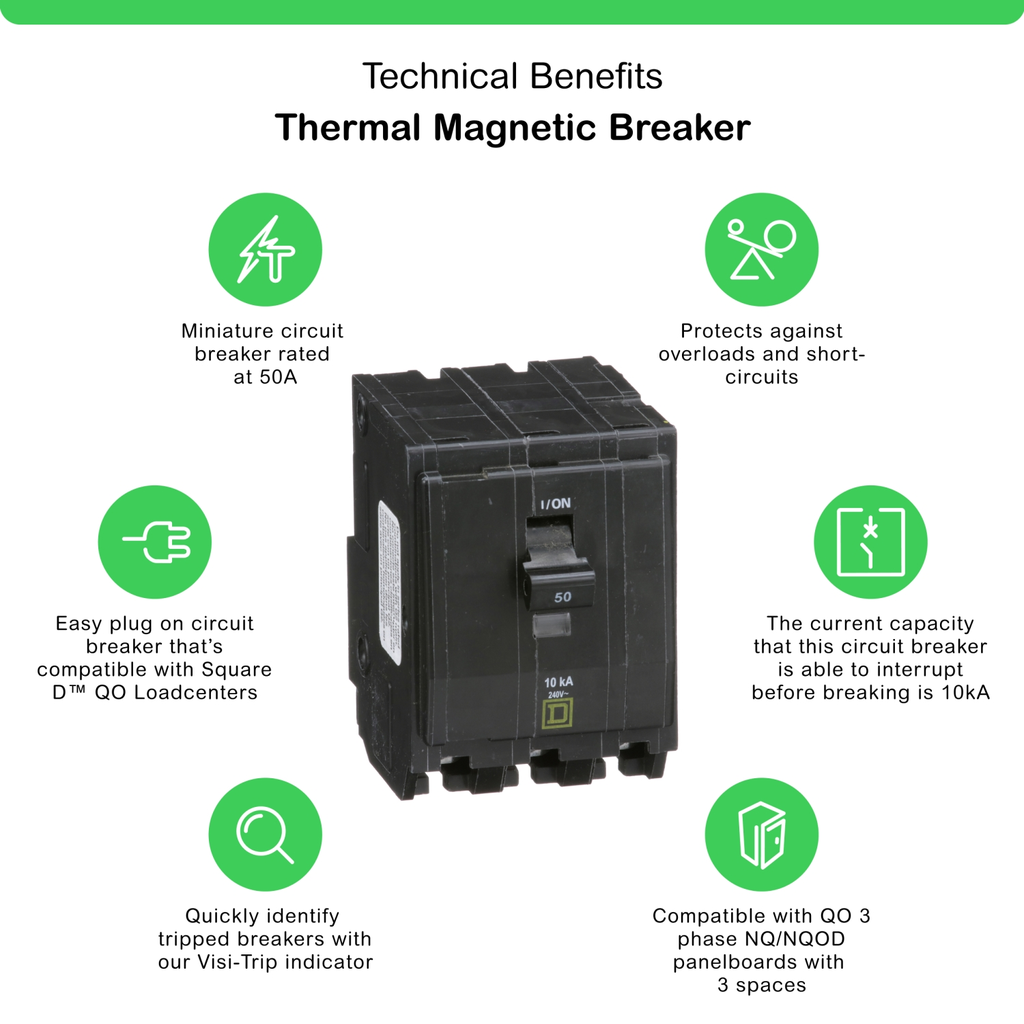

Mini circuit breaker, QO, 50A, 3 pole, 120/240VAC, 10kA, plug in

Mini circuit breaker, QO, 50A, 3 pole, 120/240VAC, 10kA, plug in

SQDQO350 QO350 785901400806
248.00 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Mini circuit breaker, QO, 50A, 3 pole, 120/240VAC, 10kA, plug in-1
  • Depth: 74 mm
  • Warranty Length: 18 mth
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 3 pole QO circuit breaker is rated at 50A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
QTY
  • Product Description
  • Features
  • Specifications
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 3 pole QO circuit breaker is rated at 50A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
  • Features
    • Provides superior circuit protection
    • Reliable and durable
    • Plug-on neutral design and shorter footprint for faster installs
    • Simple design and clear instructions for quick setup
    • Time-saving diagnostics with touch of a button
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
  • Conformance Attributes
    • Product Certifications : UL Listed, CSA
  • Complementary Attributes
    • Line Rated Current : 50 A
  • Important Information Attributes
    • Persona Type Ids : EU, EUA, LC, OM, SC
    • Persona Type Names : End User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
    • Carbon Footprint Of The Distribution Phase A4 : 0.0485750026, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.068823717
    • Carbon Footprint Of The Installation Phase A5 : 0.0000940425, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 2 kg CO2 eq., 2.1998689397
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 17 kg CO2 eq., 17.3042434783
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Manufacturer : Schneider Electric
    • Device Type : LV equipment - Low voltage circuit breaker
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : MCB
    • H And D Enrichment Class 3 : Circuit Breakers
    • H And D Enrichment Class 4 : MCB UL 3P
    • AWG Gauge : AWG 8...AWG 2 copper or aluminium
    • Circuit Breaker Application : HACR rated
    • Circuit Breaker Type : standard
    • Electrical Connection : pressure plate
    • Energy Efficiency Optimized : False
    • Halogen Free Status : Halogen free product
    • Mounting Mode : plug-in
    • Package Weight Lbs : 376.482 g
    • Poles Description : 3P
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : miniature circuit-breaker
    • Range Of Product : QO
    • Returnability : Yes
    • Sustainable Packaging : No
    • Tightening Torque : 5-5 N.m
    • Total Lifecycle Carbon Footprint : 20 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Ue Rated Operational Voltage2 : 240 V AC
    • Medium Desc : Mini circuit breaker, QO, 50A, 3 pole, 120/240VAC, 10kA, plug in
    • Stocking Flag : N
    • Product Kit Identifier : N
    • Pep Code : ENVPEP2111016EN
    • Database Version : 2016-11
    • Pep Verification Date : 2021-11-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Psr Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120V and rated current 20A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1p& 10- Rated breaking capacity 10KA
    • Functional Unit Unit : unit
    • Energy Model Manufacturing A1 A3 2 : Energy model used: Mexico
    • Energy Model Installation A5 2 : Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX
    • Energy Model Use B6 2 : Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX
    • Energy Model End Of Life C1 C4 2 : Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX
    • Global Commercial Status : Commercialised
    • Ue Rated Operational Voltage5 : 240 V AC
  • Environment Attributes Main
    • Take Back : No, Nej
    • China ROHS Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    • EU ROHS Directive : Compliant , Compliant
    • ROHS Exemption Information : Yes
    • Halogene Performance : Halogen free product
    • Recycled Metal Content At Cr Level : 0 %
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 19.62160518
    • Ambient Air Temperature For Operation : 40 °C
    • Environmental Disclosure : ENVPEP2111016EN
    • Halogen Content Performance : Halogen free product
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2111016EN
    • Pep Verification Date : 2021-11-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Psr Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : miniature circuit-breaker
    • Range Of Product : QO
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Depth : 74 mm
