SQUARE D

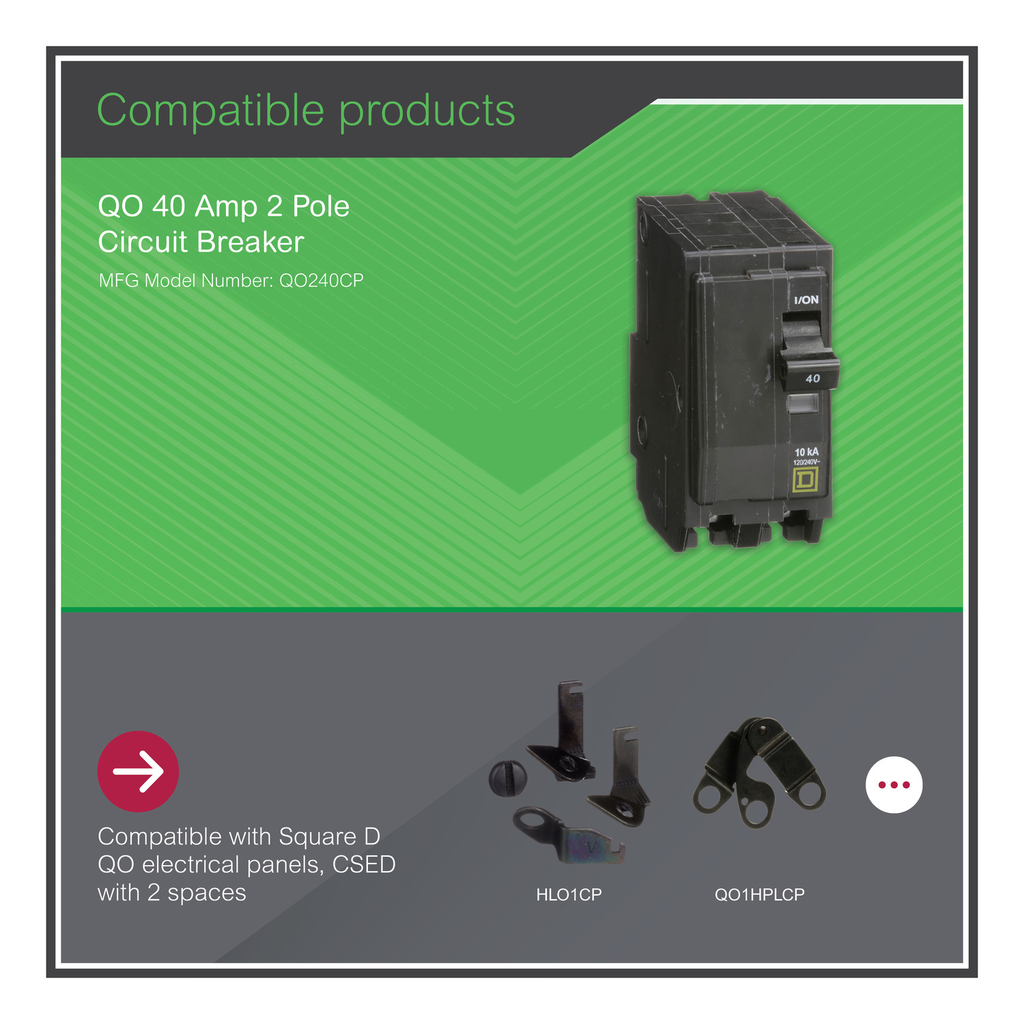

Mini circuit breaker, QO, 40A, 2 pole, 120/240 VAC, 10 kA, plug in mount

BREAKER - 2P 120/240V 40A

SQDQO240 QO240 785901400486
23.50 / EACH
  • Circuit Breaker Type: Standard
  • Country of Origin: Mexico
  • Current: 40 A
  • Depth: 2.91 in, 73.91 mm
  • Height: 3.12 in, 79.25 mm
  • Mounting Type: Plug-in
  • Number of Poles: 2
  • Voltage: 120 V, 120/240 V, 48 V
  • Warranty Length: 18 mth
  • Width: 1.5 in, 38.10 mm
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This QO miniature breaker is rated as 40 A, 120/240 V, and 2 pole. This unit provides 10 kA breaking capacity and plug in mounting. A full line of factory installed accessories, such as shunt trips, auxiliary switches and alarm switches, is also available QO breakers use a compact 3/4 inch width design for small system footprint. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
  • Product Description
  • Specifications
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This QO miniature breaker is rated as 40 A, 120/240 V, and 2 pole. This unit provides 10 kA breaking capacity and plug in mounting. A full line of factory installed accessories, such as shunt trips, auxiliary switches and alarm switches, is also available QO breakers use a compact 3/4 inch width design for small system footprint. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
  • Environment
    • Ambient Rating : 104 °F (40 °C)
    • Certifications : UL Listed || CSA
  • Complementary
    • Wire Size : AWG 8...AWG 2 copper or aluminium
    • Number Of Panel Spaces : 2
    • Interrupt Rating : 10 kA 120/240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz || 5 kA 48 V DC
    • Height : 3.12 in (79.25 mm)
    • Width : 1.5 in (38.10 mm)
    • Depth : 2.91 in (73.91 mm)
    • Tightening Torque : 44.25 lbf.in (5 N.m) 0.02…0.04 in² (10…25 mm²) AWG 8...AWG 2)
  • Main
    • Circuit Breaker Type : Standard
    • Mounting Type : Plug-in
    • Number Of Poles : 2P
    • Ratings : HACR rated
    • Current Rating : 40 A
    • Voltage Rating : 120/240 V AC || 120 V AC || 48 V DC
    • Range : QO
    • Product : Miniature circuit-breaker
    • Electrical Connection : Box lugs
  • Contractual Warranty
    • Warranty : 18 months
  • Ordering And Shipping Details
    • GTIN : 00785901400486
    • Discount Schedule : DE2A
    • Category : 00004 - QO,QOT 10-30A 1P;10-60A 2P
    • Nbr. Of Units In Pkg. : 50
    • Country Of Origin : MX
    • Returnability : Yes
  • Offer Sustainability
    • Mercury Free : Yes
    • Halogen Content Performance : Halogen free product
    • REACh Free Of SVHC : Yes
    • Toxic Heavy Metal Free : Yes
    • EU RoHs Directive : Compliant
    • Green Premium Status : Green Premium product
