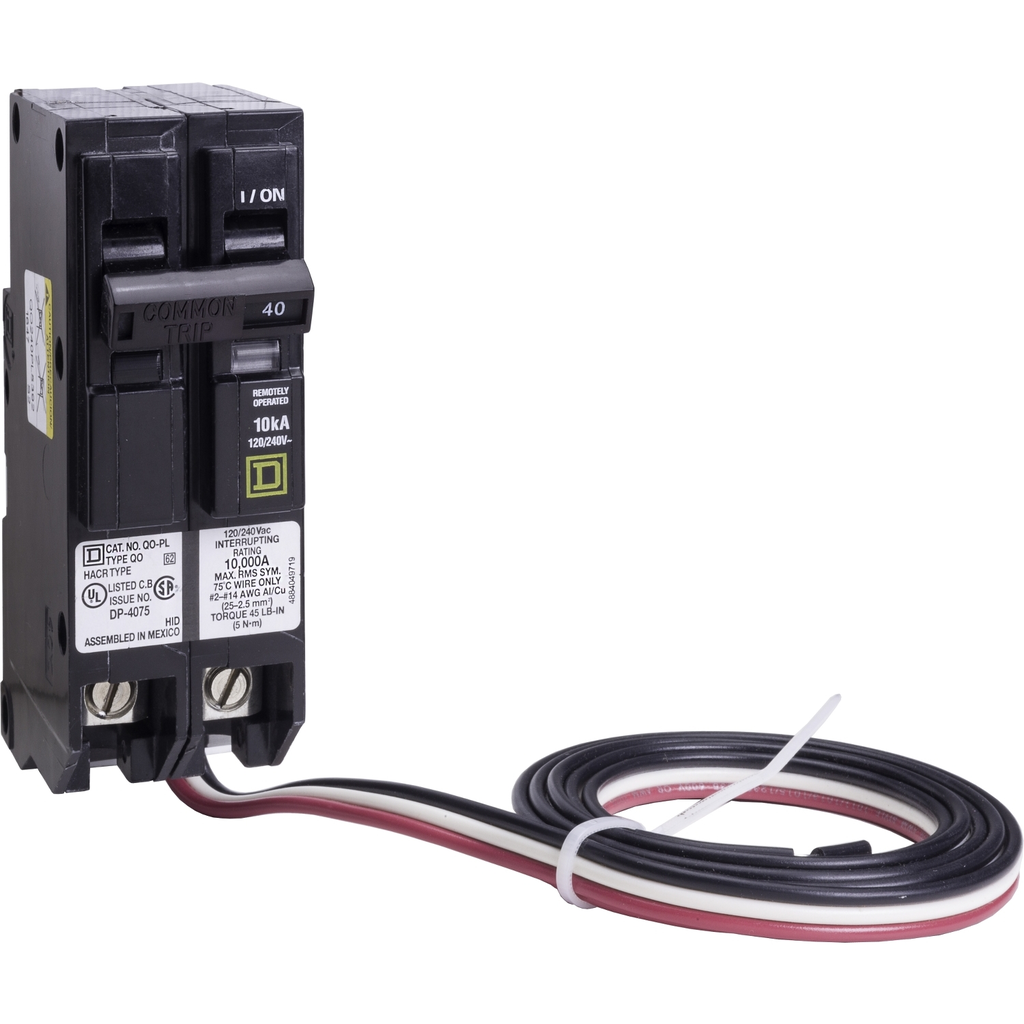

Mini circuit breaker, QO, 40A, 2 pole, 120/240 VAC, 10 kA, Powerlink, plug in mount, 48 in leads

Mini circuit breaker, QO, 40A, 2 pole, 120/240 VAC, 10 kA, Powerlink, plug in mount, 48 in leads

SQDQO240PL5392 QO240PL5392 785901748991
694.84 / EA
  • Certifications: CSA, UL Listed
  • Circuit Breaker Type: Standard
  • Depth: 2.91 in
  • Height: 4.55 in
  • Line Rated Current: 40 A
  • Mounting Type: Plug-In
  • Short Circuit Current: 10 kA
  • Warranty Length: 18 mth
  • Width: 1.5 in
  • Specifications
  • Mounting Mode : plug-in
  • Breaking Capacity : 10 kA 120/240 V AC 50/60 Hz
  • Awg Gauge : AWG 12...AWG 2 aluminium || AWG 14...AWG 2 copper
  • Electrical Connection : box lugs
  • Provided Equipment : 48 in lead
  • Maximum Height : 4.55 in
  • Number Of Spaces Required : 2
  • Warranty : 18 months
  • [Ue] Rated Operational Voltage : 120/240 V AC
  • Circuit Breaker Type : standard
  • Maximum Depth : 2.91 in
  • Poles Description : 2P
  • Ambient Air Temperature For Operation : 40 °C
  • Product Certifications : UL Listed || CSA
  • Range Of Product : QO
  • Short-Circuit Current : 10 kA
  • Circuit Breaker Application : HACR rated
  • Maximum Width : 1.5 in
  • Line Rated Current : 40 A
  • Product Or Component Type : circuit breaker
  • Tightening Torque : 4.6-4.6 N.m
