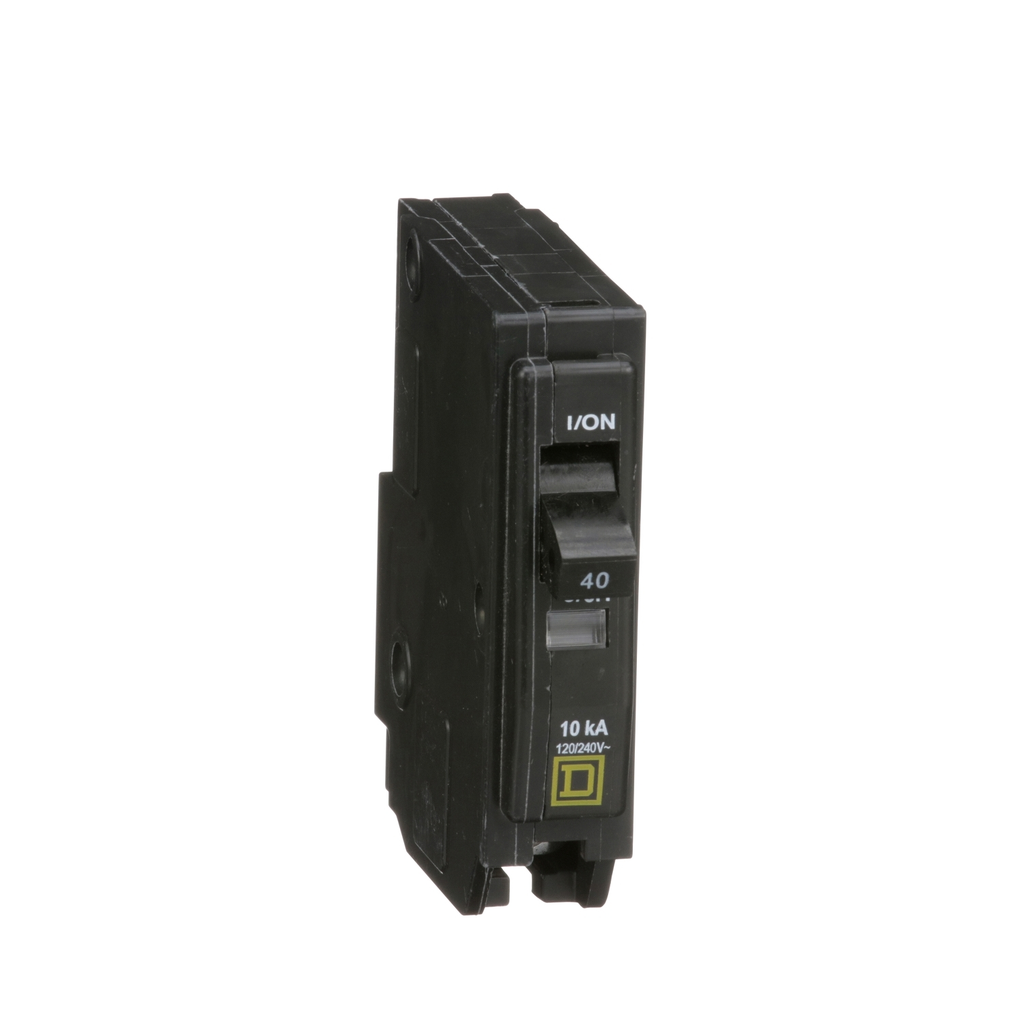

Mini circuit breaker, QO, 40A, 1 pole, 120/240 VAC, 10 kA, plug in mount

Mini circuit breaker, QO, 40A, 1 pole, 120/240 VAC, 10 kA, plug in mount

SQDQO140 QO140 785901400189
22.20 / EACH
  • Certifications: CSA, UL Listed
  • Circuit Breaker Type: Standard
  • Depth: 2.91 in
  • Height: 3.12 in
  • Line Rated Current: 40 A
  • Mounting Type: Plug-In
  • Short Circuit Current: 10 kA, 5 kA
  • Warranty Length: 18 mth
  • Width: 0.75 in
Square D™ QO™ and QOB Miniature Circuit Breakers, QO140, come in plug-in mounted version and in a complete range of amperages and interrupting ranges to fit into various QO distribution panels. UL listed.
  • Product Description
  • Specifications
Square D™ QO™ and QOB Miniature Circuit Breakers, QO140, come in plug-in mounted version and in a complete range of amperages and interrupting ranges to fit into various QO distribution panels. UL listed.
  • Maximum Width : 0.75 in
  • Short-Circuit Current : 10 kA || 5 kA
  • Number Of Spaces Required : 1
  • Poles Description : 1P
  • Product Certifications : UL Listed || CSA
  • Tightening Torque : 5-5 N.m 10-25 mm² (AWG 8...AWG 2)
  • Line Rated Current : 40 A
  • Maximum Depth : 2.91 in
  • Maximum Height : 3.12 in
  • Circuit Breaker Type : standard
  • [Ue] Rated Operational Voltage : 120/240 V AC || 120 V AC || 48 V DC
  • Awg Gauge : AWG 8...AWG 2 copper or aluminium
  • Mounting Mode : plug-in
  • Circuit Breaker Application : HACR rated
  • Warranty : 18 months
  • Breaking Capacity : 10 kA 120/240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz || 5 kA 48 V DC
  • Ambient Air Temperature For Operation : 40 °C
  • Product Or Component Type : miniature circuit-breaker
  • Range Of Product : QO
  • Electrical Connection : box lugs
