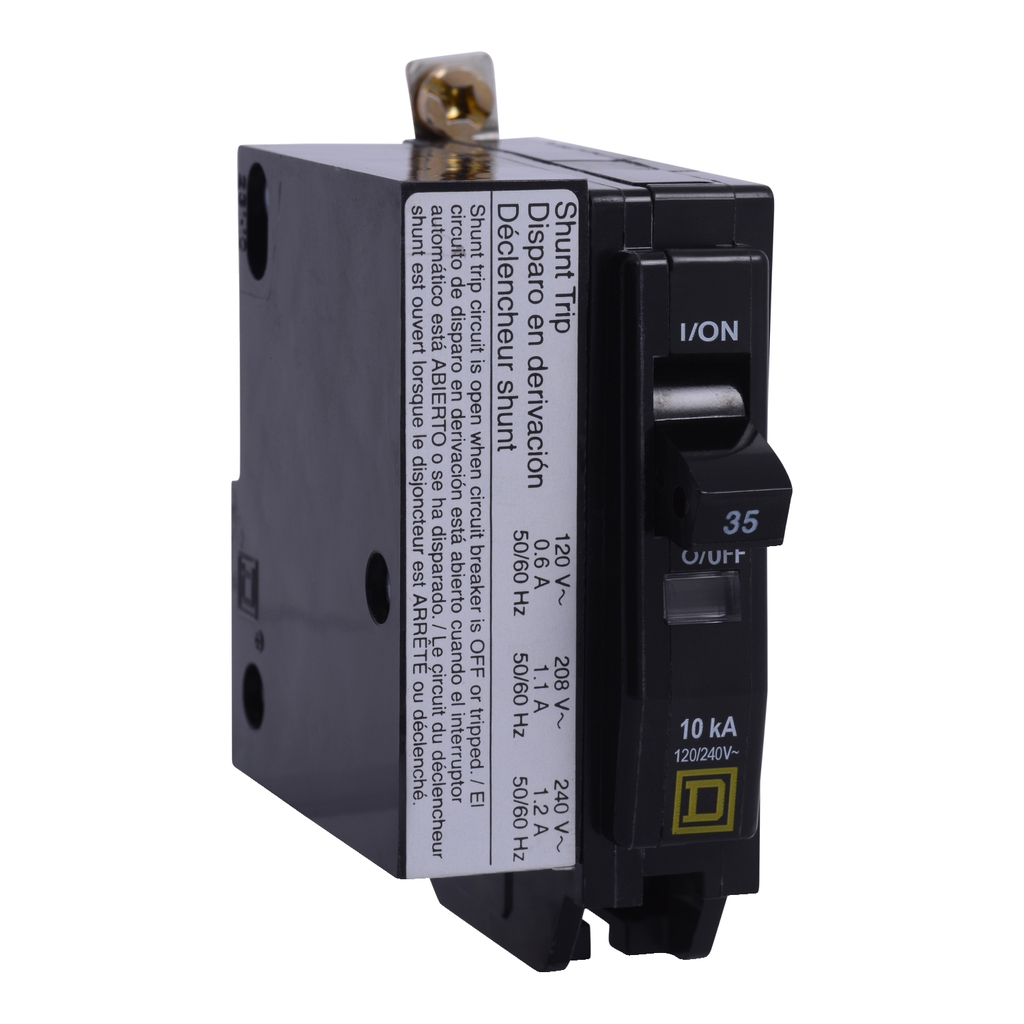

Mini circuit breaker, QO, 40A, 1 pole, 120/240 VAC, 10 kA, bolt on mount, AC shunt trip

Mini circuit breaker, QO, 40A, 1 pole, 120/240 VAC, 10 kA, bolt on mount, AC shunt trip

SQDQOB1401021 QOB1401021 785901494225
213.85 / EACH
  • Certifications: CSA, UL Listed
  • Circuit Breaker Type: Standard
  • Depth: 2.91 in
  • Height: 3.12 in
  • Line Rated Current: 40 A
  • Mounting Type: Bolt-On
  • Short Circuit Current: 10 kA, 5 kA
  • Warranty Length: 18 mth
  • Width: 1.5 in
QO(B) circuit breakers come in plug-on or bolt-on options and a complete range of amperages and interrupting ranges to fit into various QO distribution panels. QO is the “World’s Finest” Industry leading offer since 1955, with features engineered for faster installation, reliability and quality.
  • Specifications
  • Tightening Torque : 5-5 N.m 10-25 mm² (AWG 8...AWG 2)
  • Number Of Spaces Required : 2
  • [Ue] Rated Operational Voltage : 120/240 V AC || 120 V AC || 48 V DC
  • Poles Description : 1P
  • Short-Circuit Current : 10 kA || 5 kA
  • Maximum Width : 1.5 in
  • Circuit Breaker Type : standard
  • Product Or Component Type : miniature circuit-breaker
  • Maximum Height : 3.12 in
  • Electrical Connection : box lugs
  • Maximum Depth : 2.91 in
  • Product Certifications : UL Listed || CSA
  • Range Of Product : QO
  • Circuit Breaker Application : HACR rated
  • Ambient Air Temperature For Operation : 40 °C
  • Awg Gauge : AWG 8...AWG 2 copper or aluminium
  • Warranty : 18 months
  • Mounting Mode : bolt-on
  • Accessory / Separate Part Type : shunt trip 120/208/240 V AC
  • Breaking Capacity : 10 kA 120/240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz || 5 kA 48 V DC
  • Line Rated Current : 40 A
