SQUARE D

Mini circuit breaker, QO, 35A, 3 pole, 120/240VAC, 10kA, plug in, consumer pack

MINIATURE CIRCUIT BREAKER 240V

SQDQO335CP QO335CP 785901945116
241.95 / EA
http://schema.org/OutOfStock

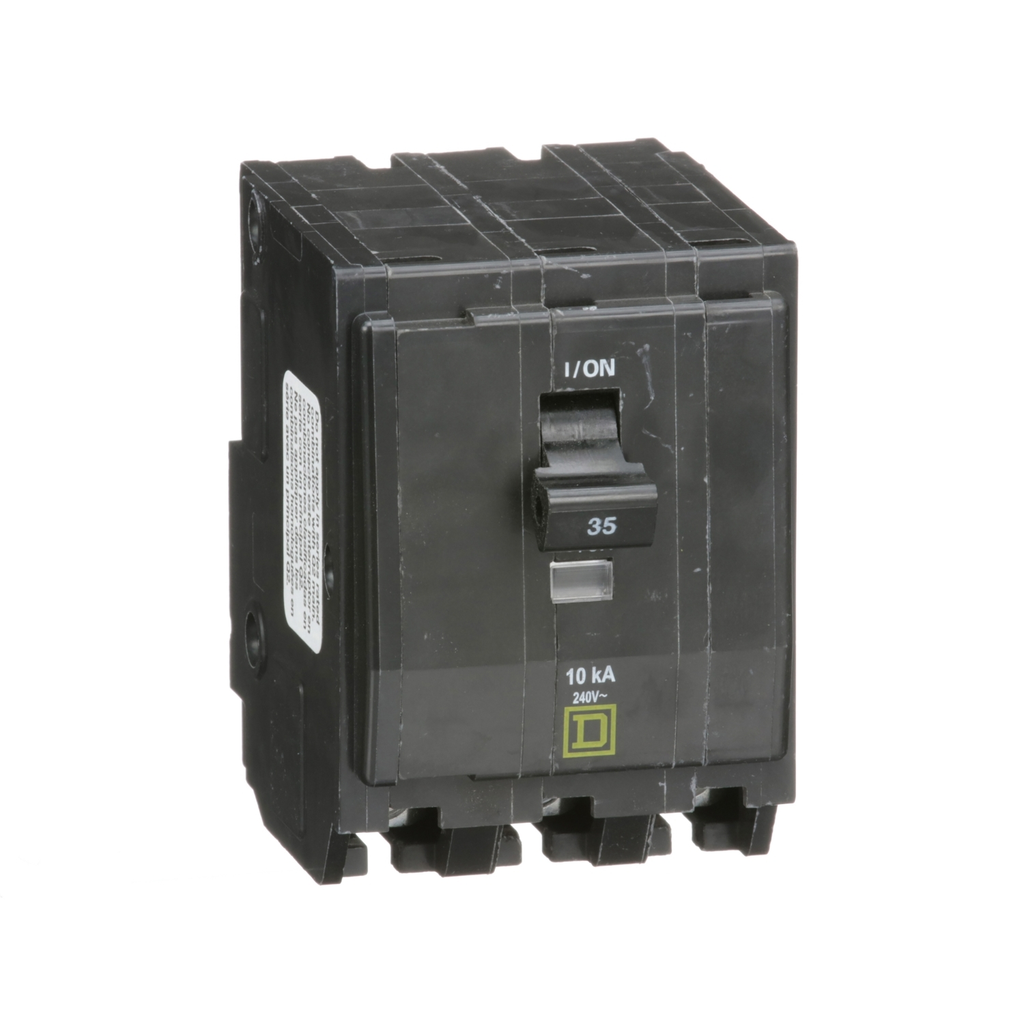

Mayer-DDS-Mini circuit breaker, QO, 35A, 3 pole, 120/240VAC, 10kA, plug in, consumer pack-1
  • Country of Origin: Mexico
  • Depth: 74 mm
  • Height: 76 mm
  • IsSustainable: No
  • Net Weight: 0.376 kg
  • Weight: 0.376 kg
  • Width: 57 mm
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 3 pole QO circuit breaker is rated at 35A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. This product is a consumer pack.
QTY
  • Product Description
  • Features
  • Specifications
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 3 pole QO circuit breaker is rated at 35A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. This product is a consumer pack.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
  • Specifications
    • Country of Origin : Mexico
    • Width : 57 mm
    • Height : 76 mm
    • Weight : 0.376 kg
    • Circuit Breaker Type : standard
    • Range Of Product : QO
    • Product Or Component Type : miniature circuit-breaker
    • Type Of Packing : consumer packaging
    • Circuit Breaker Application : HACR rated
    • Mounting Mode : plug-in
    • Poles Description : 3P
    • Electrical Connection : box lugs
    • Line Rated Current : 35 A
    • [Ue] Rated Operational Voltage : 120/240 V AC || 240 V AC || 120 V AC
  • Complementary
    • Height : 76 mm
    • Tightening Torque : 5-5 N.m 10-25 mm² (AWG 8...AWG 2)
    • Number Of Spaces Required : 3
    • Net Weight : 0.376 kg
    • Breaking Capacity : 10 kA 120/240 V AC || 10 kA 240 V AC || 10 kA 120 V AC
    • Awg Gauge : AWG 8...AWG 2 copper or aluminium
    • Width : 57 mm
    • Depth : 74 mm
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Packaging Without Single Use Plastic : Yes
    • Toxic Heavy Metal Free : Yes
    • Scip Number : af42fb01-813d-40c0-ae28-b8b3299dbc99
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Take-Back : No
    • Eu Rohs Directive : Compliant
  • Environment
    • Product Certifications : UL Listed || CSA
    • Ambient Air Temperature For Operation : 40 °C
