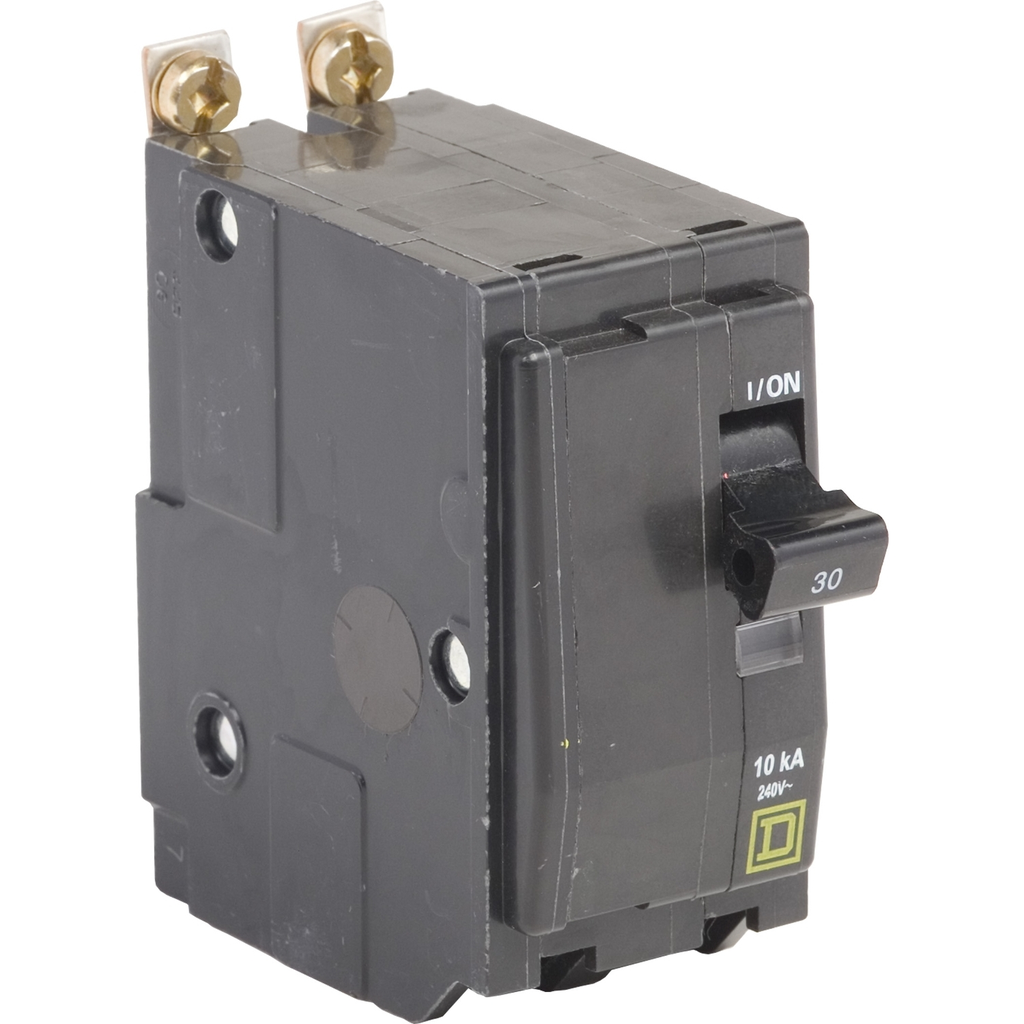

Mini circuit breaker, QO, 30A, 2 pole, 120/240VAC, 10kA, bolt on, 50 deg C

MINI CIRCUIT BREAKER, QO, 30A,

SQDQOB230H35 QOB230H35 3606486144824
271.50 / EA
http://schema.org/OutOfStock
Mayer-DDS-Mini circuit breaker, QO, 30A, 2 pole, 120/240VAC, 10kA, bolt on, 50 deg C-1
  • Country of Origin: Mexico
  • Depth: 74 mm
  • Height: 76 mm
  • Net Weight: 0.268 kg
  • Warranty Length: 18 mth
  • Weight: 0.268 kg
  • Width: 38 mm
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 30A at 120/240VAC. This unit provides 10kA breaking capacity and bolt on mounting. This product is rated for operation at 50 degrees C. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
QTY
  • Product Description
  • Features
  • Specifications
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 30A at 120/240VAC. This unit provides 10kA breaking capacity and bolt on mounting. This product is rated for operation at 50 degrees C. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL Listed || CSA
    • Ambient Air Temperature For Operation : 50 °C
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : X
    • Take-Back : No
    • Eu Rohs Directive : Compliant
  • Complementary
    • Height : 76 mm
    • Tightening Torque : 4.6-4.6 N.m
    • Number Of Spaces Required : 2
    • Net Weight : 0.268 kg
    • Breaking Capacity : 10 kA 120/240 V AC || 10 kA 240 V AC || 10 kA 120 V AC
    • Awg Gauge : AWG 14...AWG 8 copper or aluminium
    • Width : 38 mm
    • Depth : 74 mm
  • Specifications
    • Country of Origin : Mexico
    • Width : 38 mm
    • Height : 76 mm
    • Weight : 0.268 kg
    • Circuit Breaker Type : standard
    • Range Of Product : QO
    • Product Or Component Type : miniature circuit-breaker
    • Circuit Breaker Application : HACR rated
    • Mounting Mode : bolt-on
    • Poles Description : 2P
    • Electrical Connection : pressure plate
    • Line Rated Current : 30 A
    • [Ue] Rated Operational Voltage : 120/240 V AC || 240 V AC || 120 V AC
