SQUARE D

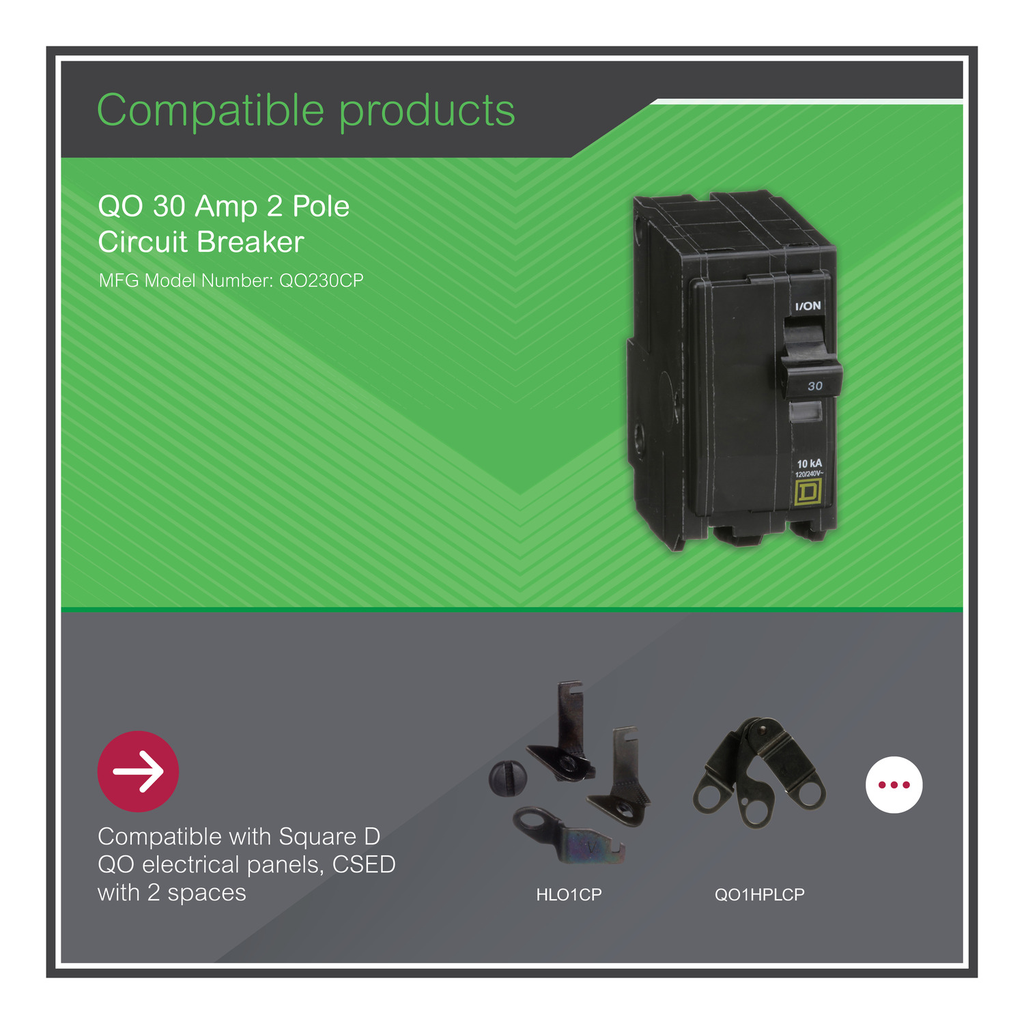

Mini circuit breaker, QO, 30A, 2 pole, 120/240VAC, 10kA, plug in mount

BREAKER - 2P 120/240V 30A

SQDQO230 QO230 785901400424
28.84 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Mini circuit breaker, QO, 30A, 2 pole, 120/240VAC, 10kA, plug in mount-2
  • Certifications: CSA, UL Listed
  • Circuit Breaker Type: Standard
  • Depth: 74 mm
  • Height: 76 mm
  • Line Rated Current: 30 A
  • Mounting Type: Plug-In
  • Net Weight: 0.249 kg
  • Warranty Length: 18 mth
  • Width: 38 mm
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 30A at 120/240VAC. This unit provides 10kA breaking capacity and is plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
QTY
  • Product Description
  • Specifications
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 30A at 120/240VAC. This unit provides 10kA breaking capacity and is plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
  • Environment
    • Product Certifications : UL Listed || CSA
    • Ambient Air Temperature For Operation : 40 °C
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Circularity Profile : N/A
    • Eu Rohs Directive : Compliant with Exemptions
    • Halogen Content Performance : Halogen free product
  • Complementary
    • Height : 76 mm
    • Tightening Torque : 4-4 N.m
    • Number Of Spaces Required : 2
    • Net Weight : 0.249 kg
    • Breaking Capacity : 10 kA 120/240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
    • Awg Gauge : AWG 14...AWG 8 copper or aluminium
    • Width : 38 mm
    • Depth : 74 mm
  • Specifications
    • Circuit Breaker Type : standard
    • Range Of Product : QO
    • Product Or Component Type : miniature circuit-breaker
    • Circuit Breaker Application : HACR rated
    • Mounting Mode : plug-in
    • Poles Description : 2P
    • Electrical Connection : pressure plate
    • Line Rated Current : 30 A
    • [Ue] Rated Operational Voltage : 120/240 V AC || 120 V AC
