SQUARE D

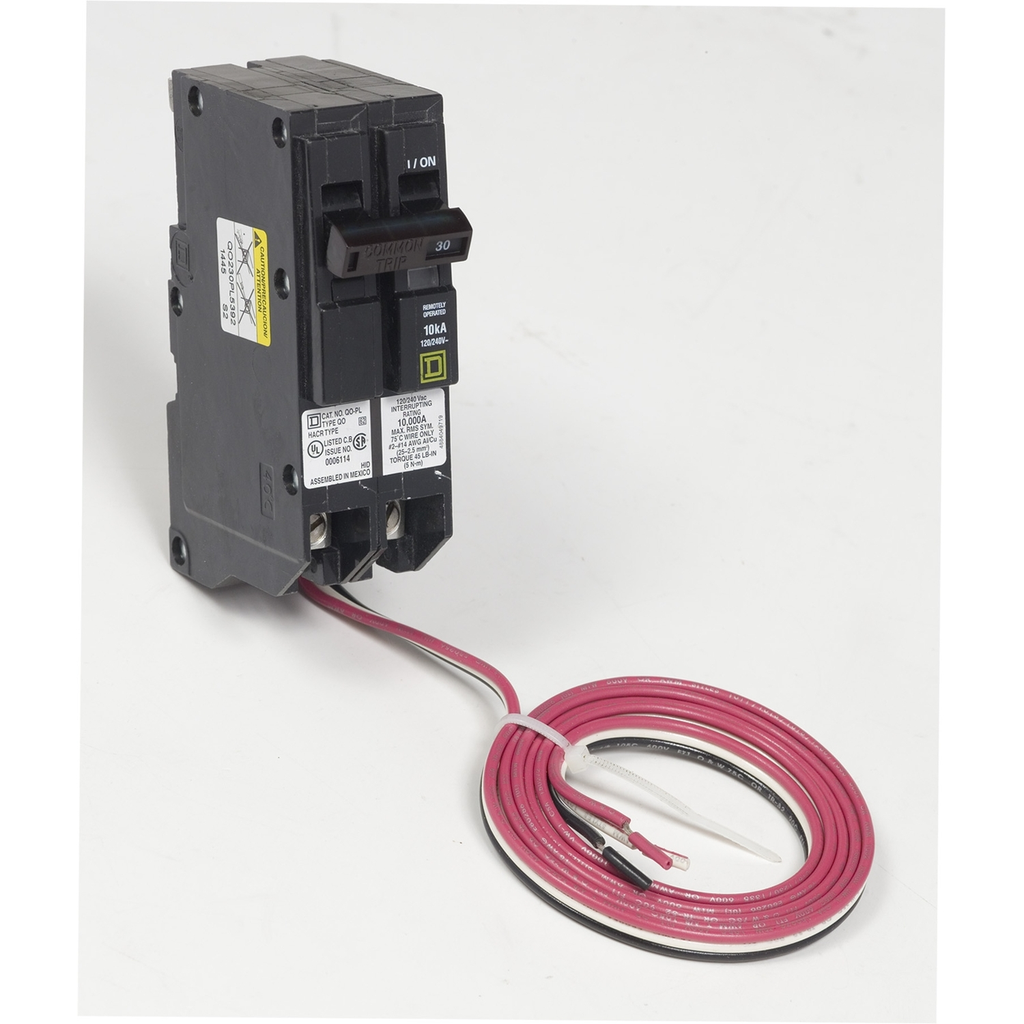

Mini circuit breaker, QO, 30A, 2 pole, 120/240VAC, 10kA, plug in, Powerlink, 48in leads

MINIATURE CIRCUIT BREAKER 120/

SQDQO230PL5392 QO230PL5392 785901741954
369.87 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Mini circuit breaker, QO, 30A, 2 pole, 120/240VAC, 10kA, plug in, Powerlink, 48in leads-1
  • Depth: 74 mm
  • Warranty Length: 18 mth
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 30A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. This product has a Powerlink feature and 48in leads. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
QTY
  • Product Description
  • Features
  • Specifications
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 30A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. This product has a Powerlink feature and 48in leads. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
  • Prop 65
    • WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
  • Features
    • Provides superior circuit protection
    • Reliable and durable
    • Plug-on neutral design and shorter footprint for faster installs
    • Simple design and clear instructions for quick setup
    • Time-saving diagnostics with touch of a button
  • Conformance Attributes
    • Product Certifications : UL Listed, CSA
  • Complementary Attributes
    • Line Rated Current : 30 A
  • Important Information Attributes
    • Persona Type Ids : EU, LC, OM
    • Persona Type Names : End User, Contractor, Original Equipment Manufacturer
    • AWG Gauge : AWG 12...AWG 2 aluminium, AWG 14...AWG 2 copper
    • Ue Rated Operational Voltage2 : 120/240 V AC, 120 V AC
    • Ue Rated Operational Voltage5 : 120/240 V AC, 120 V AC
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Manufacturer : Schneider Electric
    • Device Type : LV equipment - Low voltage circuit breaker
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : COMMERCIAL
    • Market Segmentation : Commercial
    • H And D Domain : Safety
    • H And D Subrange : COM
    • H And D Enrichment Assignment : yes
    • H And D Enrichment Function : MCB ENRICHMENT
    • H And D Enrichment Class 3 : Circuit Breakers
    • H And D Enrichment Class 4 : MCB w. integrated control
    • Circuit Breaker Application : HACR rated
    • Circuit Breaker Type : standard
    • Electrical Connection : box lugs
    • Energy Efficiency Optimized : False
    • Halogen Free Status : Halogen free product
    • Mounting Mode : plug-in
    • Package Weight Lbs : 417.305 g
    • Poles Description : 2P
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : miniature circuit-breaker
    • Provided Equipment : 48 in lead
    • Range Of Product : QO
    • Returnability : Yes
    • Sustainable Packaging : No
    • Tightening Torque : 4-4 N.m
    • Medium Desc : Mini circuit breaker, QO, 30A, 2 pole, 120/240VAC, 10kA, plug in, Powerlink, 48in leads
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Pep Code : ENVPEP2111016EN
    • Global Commercial Status : Commercialised
  • Environment Attributes Main
    • Take Back : No, Nej
    • China ROHS Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    • EU ROHS Directive : Compliant , Compliant
    • ROHS Exemption Information : Yes
    • Halogene Performance : Halogen free product
    • Recycled Metal Content At Cr Level : 0 %
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : 40 °C
    • Environmental Disclosure : ENVPEP2111016EN
    • Halogen Content Performance : Halogen free product
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2111016EN
  • General Attributes
    • Product Or Component Type : miniature circuit-breaker
    • Provided Equipment : 48 in lead
    • Range Of Product : QO
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Depth : 74 mm
