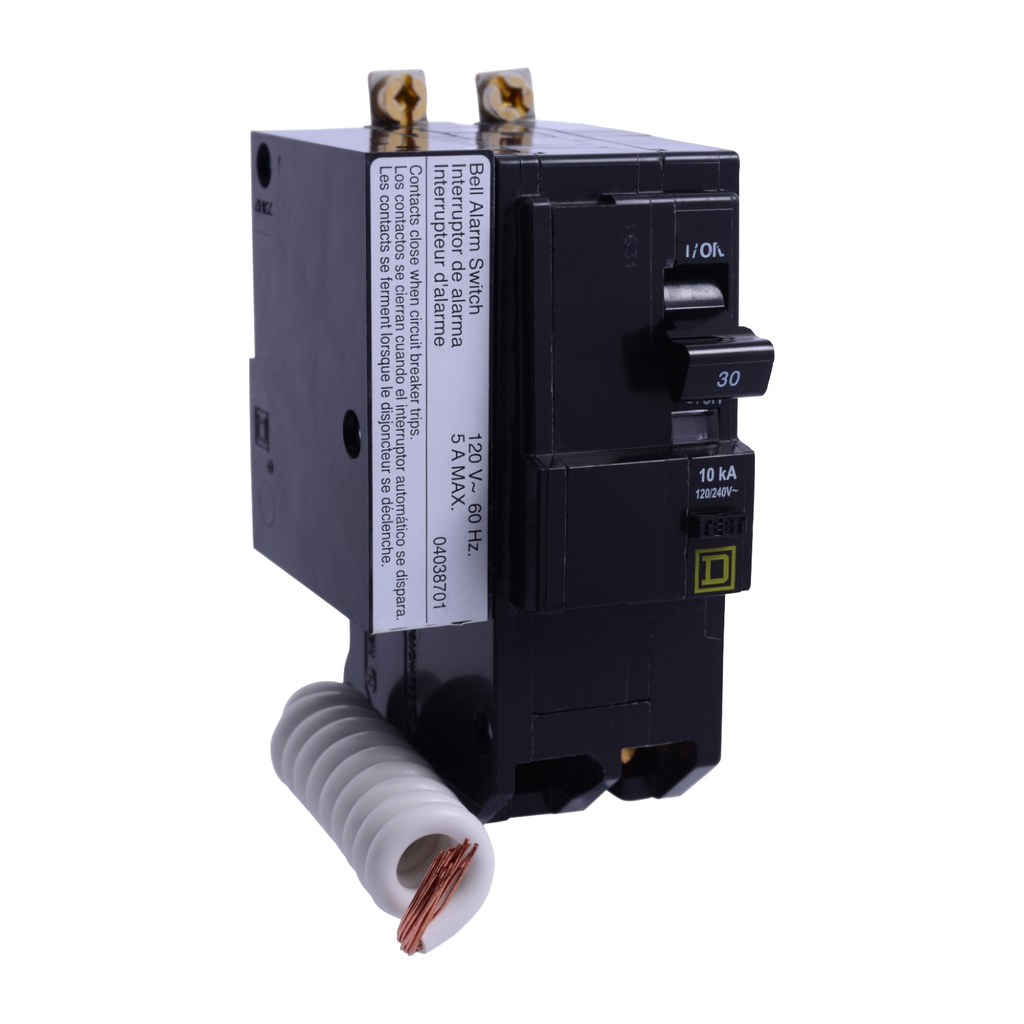

Mini circuit breaker, QO, 30A, 2 pole, 120/240 VAC, 10 kA, 30mA grd fault B, bolt on mount, alarm switch

Mini circuit breaker, QO, 30A, 2 pole, 120/240 VAC, 10 kA, 30mA grd fault B, bolt on mount, alarm switch

SQDQOB230EPD2100 QOB230EPD2100 785901088738
728.84 / EACH
  • Certifications: CSA, UL Listed
  • Circuit Breaker Type: Ground Fault Protecting Class B 30 MA
  • Depth: 2.91 in
  • Height: 4.12 in
  • Line Rated Current: 30 A
  • Mounting Type: Bolt-On
  • Short Circuit Current: 10 kA
  • Warranty Length: 18 mth
  • Width: 2.25 in
Square D™ QO™ and QOB Miniature Circuit Breakers, QOB230EPD2100, come in bolt-on mounted version and in a complete range of amperages and interrupting ranges to fit into various QO distribution panels. Are designed to provide ground fault protection of equipment. UL listed.
  • Product Description
  • Specifications
Square D™ QO™ and QOB Miniature Circuit Breakers, QOB230EPD2100, come in bolt-on mounted version and in a complete range of amperages and interrupting ranges to fit into various QO distribution panels. Are designed to provide ground fault protection of equipment. UL listed.
  • Circuit Breaker Type : ground fault protecting class B 30 mA
  • Awg Gauge : AWG 14...AWG 8 copper || AWG 12...AWG 8 aluminium
  • Circuit Breaker Application : not rated
  • [Ue] Rated Operational Voltage : 120/240 V AC || 120 V AC
  • Warranty : 18 months
  • Electrical Connection : pressure plate
  • Line Rated Current : 30 A
  • Ambient Air Temperature For Operation : 40 °C
  • Mounting Mode : bolt-on
  • Maximum Height : 4.12 in
  • Breaking Capacity : 10 kA 120/240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
  • Maximum Width : 2.25 in
  • Poles Description : 2P
  • Tightening Torque : 4.6-4.6 N.m 2.5-10 mm² (AWG 16...AWG 14) || 4.6-4.6 N.m 4-20 mm² (AWG 12...AWG 4)
  • Product Certifications : UL Listed || CSA
  • Short-Circuit Current : 10 kA
  • Maximum Depth : 2.91 in
  • Number Of Spaces Required : 3
  • Range Of Product : QO
  • Product Or Component Type : miniature circuit-breaker
  • Accessory / Separate Part Type : alarm switch 120 V AC 1A
