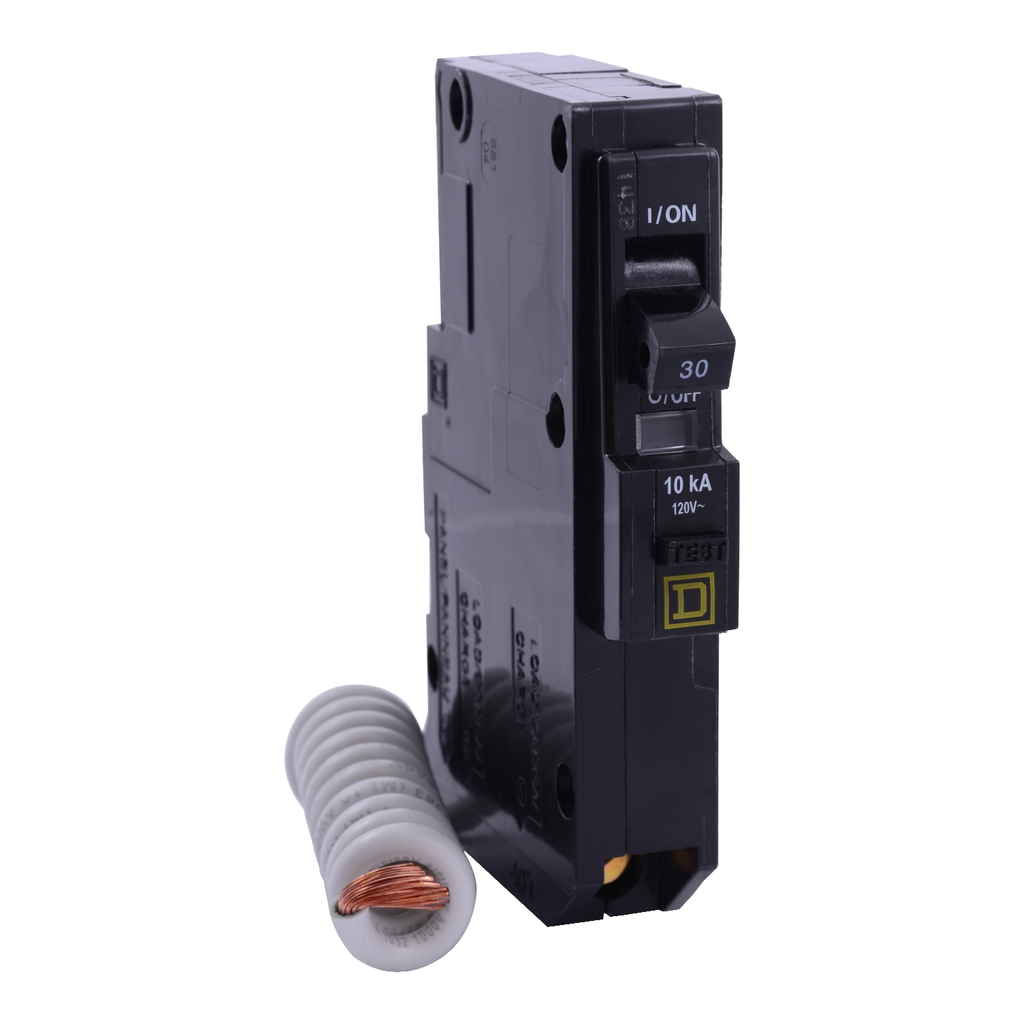

Mini circuit breaker, QO, 30A, 1 pole, 120VAC, 10kA, plug in, 30mA grd fault B [TAA]

MINIATURE CIRCUIT BREAKER 120V

SQDQO130EPD QO130EPD 785901763871
420.25 / EACH
http://schema.org/OutOfStock
Mini circuit breaker, QO, 30A, 1 pole, 120VAC, 10kA, plug in, 30mA grd fault B [TAA]
  • Country of Origin: Mexico
  • Depth: 74 mm
  • Height: 105 mm
  • Net Weight: 0.240 kg
  • Warranty Length: 18 mth
  • Weight: 0.240 kg
  • Width: 19 mm
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 1 pole QO circuit breaker is rated at 30A at 120VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes a 30mA ground fault B protection. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
QTY
  • Product Description
  • Features
  • Specifications
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 1 pole QO circuit breaker is rated at 30A at 120VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes a 30mA ground fault B protection. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
  • Prop 65
    • WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL Listed || CSA
    • Ambient Air Temperature For Operation : 40 °C
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2212005
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Circularity Profile : ENVEOLI2212005
    • Take-Back : No
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 39.3393334759
  • Complementary
    • Height : 105 mm
    • Tightening Torque : 4-4 N.m || 4.6-4.6 N.m 4-20 mm² (AWG 12...AWG 4)
    • Number Of Spaces Required : 1
    • Net Weight : 0.240 kg
    • Breaking Capacity : 10 kA 120 V AC
    • Awg Gauge : AWG 14...AWG 8 copper || AWG 12...AWG 8 aluminium
    • Width : 19 mm
    • Depth : 74 mm
  • Specifications
    • Country of Origin : Mexico
    • Width : 19 mm
    • Height : 105 mm
    • Weight : 0.240 kg
    • Circuit Breaker Type : ground fault protecting class B 30 mA
    • Range Of Product : QO
    • Product Or Component Type : miniature circuit-breaker
    • Circuit Breaker Application : not rated
    • Mounting Mode : plug-in
    • Poles Description : 1P
    • Electrical Connection : pressure plate
    • Line Rated Current : 30 A
    • [Ue] Rated Operational Voltage : 120 V AC
