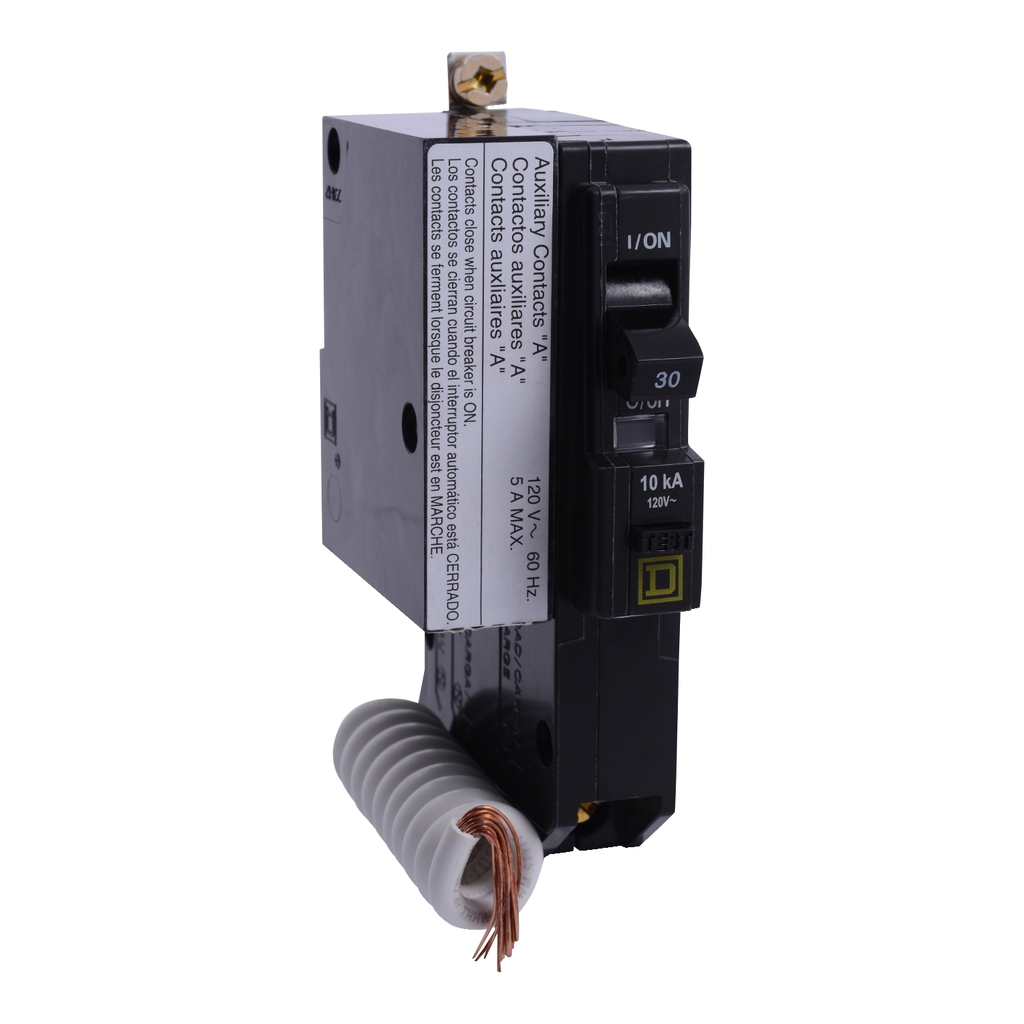

Mini circuit breaker, QO, 30A, 1 pole, 120 VAC, 10 kA, 30mA grd fault B, bolt on mount, aux switch 1A

Mini circuit breaker, QO, 30A, 1 pole, 120 VAC, 10 kA, 30mA grd fault B, bolt on mount, aux switch 1A

SQDQOB130EPD1200 QOB130EPD1200 785901088561
497.68 / EACH
  • Certifications: CSA, UL Listed
  • Circuit Breaker Type: Ground Fault Protecting Class B 30 MA
  • Depth: 2.91 in
  • Height: 4.12 in
  • Line Rated Current: 30 A
  • Mounting Type: Bolt-On
  • Short Circuit Current: 10 kA
  • Warranty Length: 18 mth
  • Width: 1.5 in
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This QOB miniature breaker is rated as 30 A, 120 V, and 1 pole. This unit provides 10 kA breaking capacity and bolt on mounting. A full line of factory installed accessories is also available such auxiliary switches, alarm switches, and shunt trips. This unit has a factory installed equipment protection device and aux switch 1A. QO breakers use a compact 3/4 inch width design for small system footprint. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
  • Product Description
  • Specifications
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This QOB miniature breaker is rated as 30 A, 120 V, and 1 pole. This unit provides 10 kA breaking capacity and bolt on mounting. A full line of factory installed accessories is also available such auxiliary switches, alarm switches, and shunt trips. This unit has a factory installed equipment protection device and aux switch 1A. QO breakers use a compact 3/4 inch width design for small system footprint. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
  • Maximum Width : 1.5 in
  • Awg Gauge : AWG 14...AWG 8 copper || AWG 12...AWG 8 aluminium
  • Short-Circuit Current : 10 kA
  • Mounting Mode : bolt-on
  • Warranty : 18 months
  • Maximum Height : 4.12 in
  • Ambient Air Temperature For Operation : 40 °C
  • Range Of Product : QO
  • Circuit Breaker Type : ground fault protecting class B 30 mA
  • Line Rated Current : 30 A
  • Number Of Spaces Required : 2
  • Circuit Breaker Application : not rated
  • Product Or Component Type : miniature circuit-breaker
  • Breaking Capacity : 10 kA 120 V AC 50/60 Hz
  • Maximum Depth : 2.91 in
  • Product Certifications : UL Listed || CSA
  • Tightening Torque : 4.6-4.6 N.m 2.5-10 mm² (AWG 16...AWG 14) || 4.6-4.6 N.m 4-20 mm² (AWG 12...AWG 4)
  • Poles Description : 1P
  • Electrical Connection : pressure plate
  • [Ue] Rated Operational Voltage : 120 V AC
  • Accessory / Separate Part Type : auxiliary switch 120 V AC 1A
