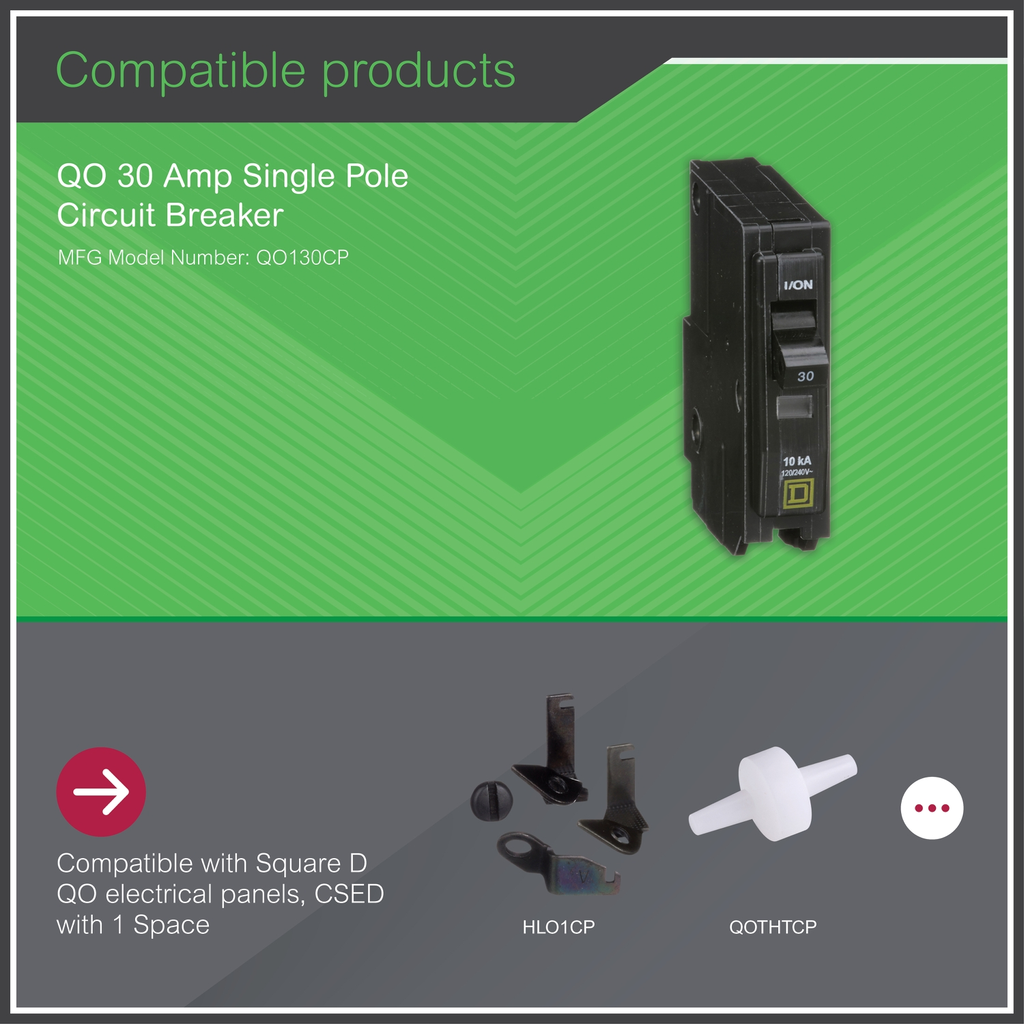

Mini circuit breaker, QO, 30A, 1 pole, 120/240 VAC, 10 kA, plug in mount

Mini circuit breaker, QO, 30A, 1 pole, 120/240 VAC, 10 kA, plug in mount

SQDQO130 QO130 785901400141
11.92 / EACH
  • Certifications: CSA, UL Listed
  • Circuit Breaker Type: Standard
  • Depth: 2.91 in
  • Height: 3 in
  • Line Rated Current: 30 A
  • Mounting Type: Plug-In
  • Short Circuit Current: 10 kA
  • Warranty Length: 18 mth
  • Width: 0.75 in
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This QO miniature breaker is rated as 30 A, 120/240 V, and 1 pole. This unit provides 10 kA breaking capacity and plug in mounting. A full line of factory installed accessories, such as shunt trips, auxiliary switches and alarm switches, is also available QO breakers use a compact 3/4 inch width design for small system footprint. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
  • Product Description
  • Specifications
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This QO miniature breaker is rated as 30 A, 120/240 V, and 1 pole. This unit provides 10 kA breaking capacity and plug in mounting. A full line of factory installed accessories, such as shunt trips, auxiliary switches and alarm switches, is also available QO breakers use a compact 3/4 inch width design for small system footprint. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
  • Tightening Torque : 5-5 N.m 10-25 mm² (AWG 8...AWG 2)
  • Maximum Height : 3 in
  • Maximum Width : 0.75 in
  • Warranty : 18 months
  • Electrical Connection : pressure plate
  • Mounting Mode : plug-in
  • Product Or Component Type : miniature circuit-breaker
  • Range Of Product : QO
  • Circuit Breaker Application : HACR rated
  • Product Certifications : UL Listed || CSA
  • [Ue] Rated Operational Voltage : 120 V AC || 120/240 V AC
  • Number Of Spaces Required : 1
  • Ambient Air Temperature For Operation : 40 °C
  • Circuit Breaker Type : standard
  • Breaking Capacity : 10 kA 120 V AC 50/60 Hz || 10 kA 120/240 V AC 50/60 Hz
  • Line Rated Current : 30 A
  • Short-Circuit Current : 10 kA
  • Maximum Depth : 2.91 in
  • Awg Gauge : AWG 14...AWG 8 copper or aluminium
  • Poles Description : 1P
