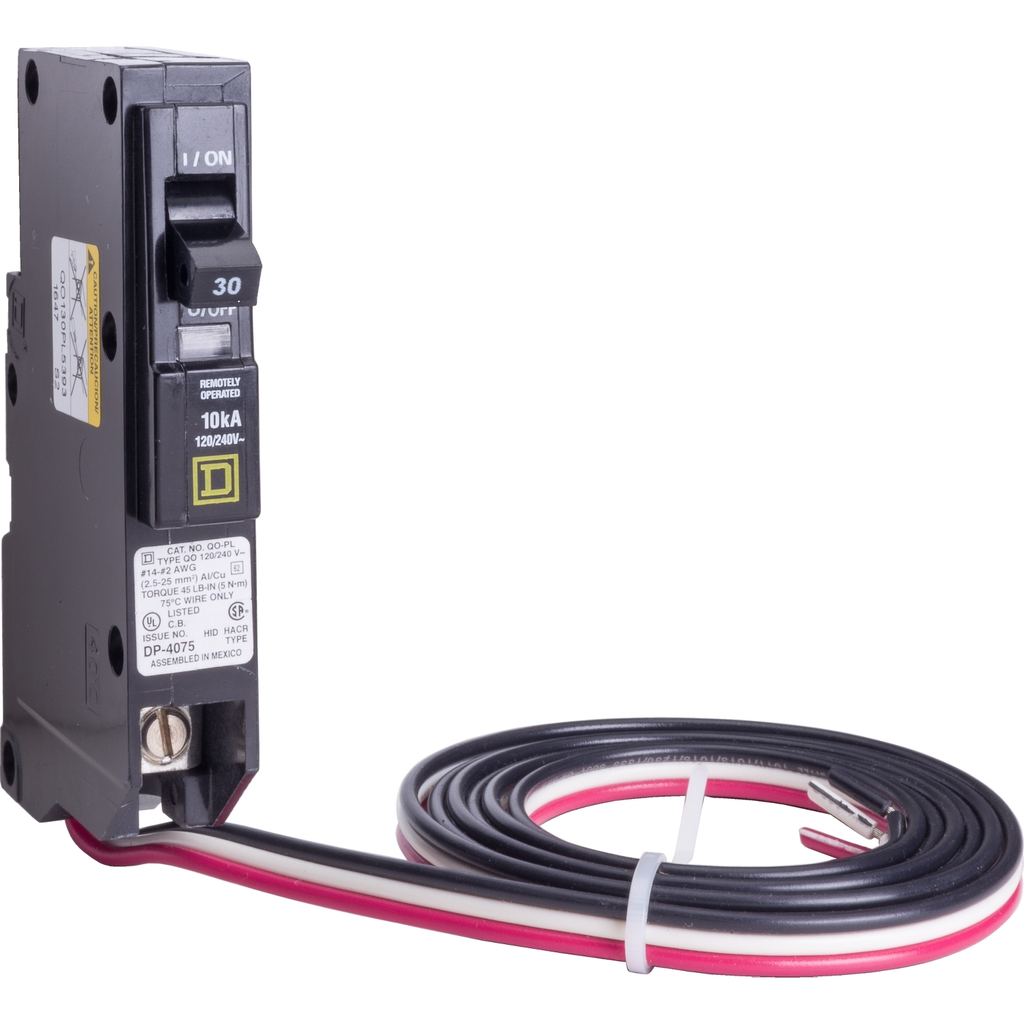

Mini circuit breaker, QO, 30A, 1 pole, 120/240 VAC, 10 kA, Powerlink, plug in mount, 60 in leads

Mini circuit breaker, QO, 30A, 1 pole, 120/240 VAC, 10 kA, Powerlink, plug in mount, 60 in leads

SQDQO130PL5393 QO130PL5393 785901404736
267.50 / EACH
  • Certifications: CSA, UL Listed
  • Circuit Breaker Type: Standard
  • Depth: 2.91 in
  • Height: 4.55 in
  • Line Rated Current: 30 A
  • Mounting Type: Plug-In
  • Short Circuit Current: 10 kA
  • Warranty Length: 18 mth
  • Width: 0.75 in
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick-break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This one pole QO plug in miniature circuit breaker is rated as 30A, 120/240 VAC. This circuit breaker provides 10 kA breaking capacity. This circuit breaker is UL Listed as SWD (switching duty) rated. It is suitable for switching 120 Vac fluorescent lighting loads. A full line of factory installed accessories, such as shunt trips, auxiliary switches and alarm switches are available. This circuit breaker has Powerlink and has 60 inch leads. The box lug connectors will accept one 14 AWG to 2 AWG copper or 12 AWG to 2 AWG aluminum wire. This circuit breaker has a height of 4.55 inches, a width of 0.75 inch and a depth of 2.91 inches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
  • Product Description
  • Specifications
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick-break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This one pole QO plug in miniature circuit breaker is rated as 30A, 120/240 VAC. This circuit breaker provides 10 kA breaking capacity. This circuit breaker is UL Listed as SWD (switching duty) rated. It is suitable for switching 120 Vac fluorescent lighting loads. A full line of factory installed accessories, such as shunt trips, auxiliary switches and alarm switches are available. This circuit breaker has Powerlink and has 60 inch leads. The box lug connectors will accept one 14 AWG to 2 AWG copper or 12 AWG to 2 AWG aluminum wire. This circuit breaker has a height of 4.55 inches, a width of 0.75 inch and a depth of 2.91 inches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
  • Circuit Breaker Type : standard
  • Maximum Width : 0.75 in
  • Short-Circuit Current : 10 kA
  • Awg Gauge : AWG 12...AWG 2 aluminium || AWG 14...AWG 2 copper
  • Tightening Torque : 4.6-4.6 N.m
  • Circuit Breaker Application : HACR rated
  • Range Of Product : QO
  • Mounting Mode : plug-in
  • Provided Equipment : 60 in lead
  • [Ue] Rated Operational Voltage : 120/240 V AC
  • Breaking Capacity : 10 kA 120/240 V AC 50/60 Hz
  • Electrical Connection : box lugs
  • Line Rated Current : 30 A
  • Ambient Air Temperature For Operation : 40 °C
  • Number Of Spaces Required : 1
  • Poles Description : 1P
  • Warranty : 18 months
  • Maximum Depth : 2.91 in
  • Product Certifications : UL Listed || CSA
  • Product Or Component Type : circuit breaker
  • Maximum Height : 4.55 in
