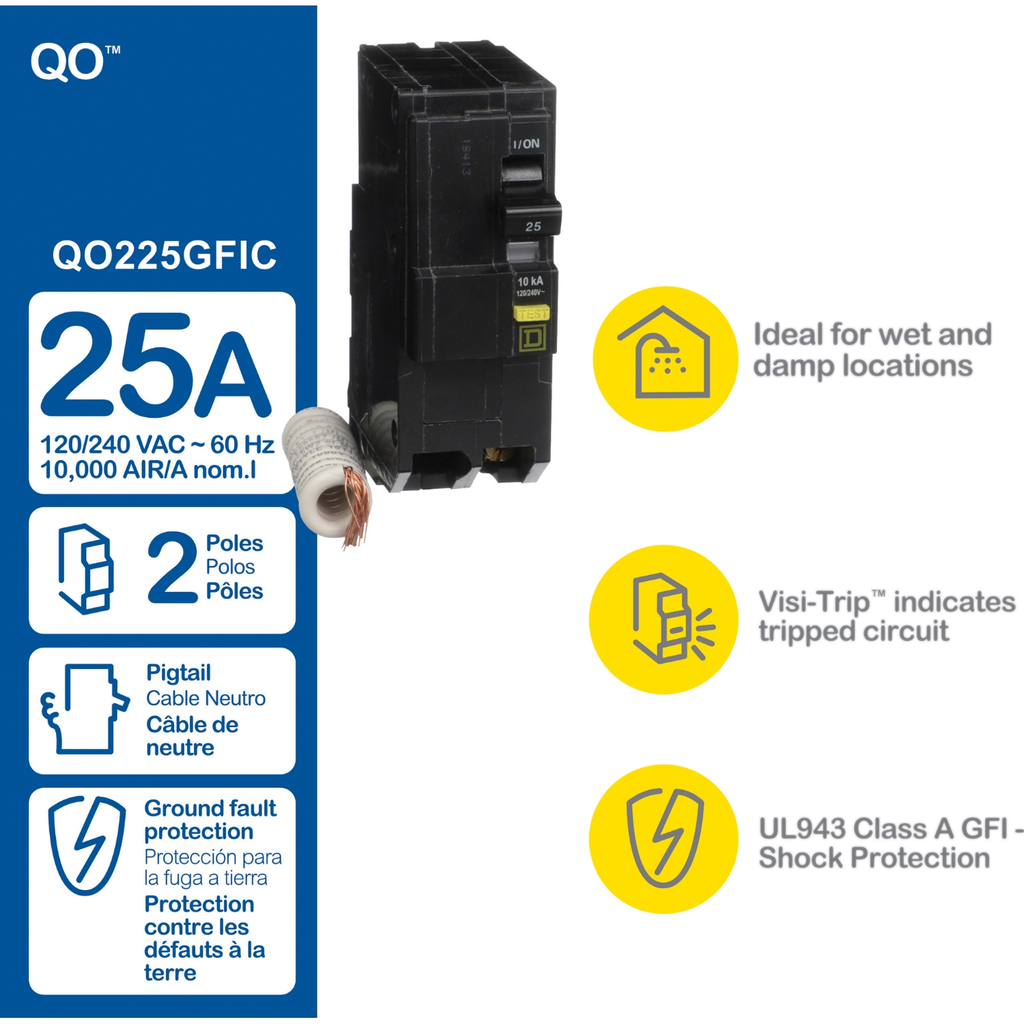

Mini circuit breaker, QO, 25A, 2 pole, 120/240VAC, 10kA, plug in, 6mA grd fault A, pigtail [TAA]

MINIATURE CIRCUIT BREAKER 120/

SQDQO225GFI QO225GFI 785901562962
148.29 / EACH
http://schema.org/OutOfStock
  • Country of Origin: USA
  • Depth: 74 mm
  • Height: 105 mm
  • Net Weight: 0.426 kg
  • Warranty Length: 18 mth
  • Weight: 0.426 kg
  • Width: 38 mm
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 25A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
QTY
  • Product Description
  • Features
  • Specifications
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 25A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL Listed || CSA
    • Ambient Air Temperature For Operation : 40 °C
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2212005
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Circularity Profile : ENVEOLI2212005
    • Take-Back : No
    • Eu Rohs Directive : Compliant with Exemptions
  • Complementary
    • Height : 105 mm
    • Tightening Torque : 4-4 N.m || 4.6-4.6 N.m 4-20 mm² (AWG 12...AWG 4)
    • Number Of Spaces Required : 2
    • Net Weight : 0.426 kg
    • Breaking Capacity : 10 kA 120/240 V AC || 10 kA 120 V AC
    • Awg Gauge : AWG 14...AWG 8 copper || AWG 12...AWG 8 aluminium
    • Width : 38 mm
    • Depth : 74 mm
  • Specifications
    • Country of Origin : United States
    • Width : 38 mm
    • Height : 105 mm
    • Weight : 0.426 kg
    • Circuit Breaker Type : ground fault protecting class A 6 mA
    • Range Of Product : QO
    • Product Or Component Type : miniature circuit-breaker
    • Circuit Breaker Application : not rated
    • Mounting Mode : plug-in
    • Poles Description : 2P
    • Electrical Connection : pressure plate
    • Line Rated Current : 25 A
    • [Ue] Rated Operational Voltage : 120/240 V AC || 120 V AC
