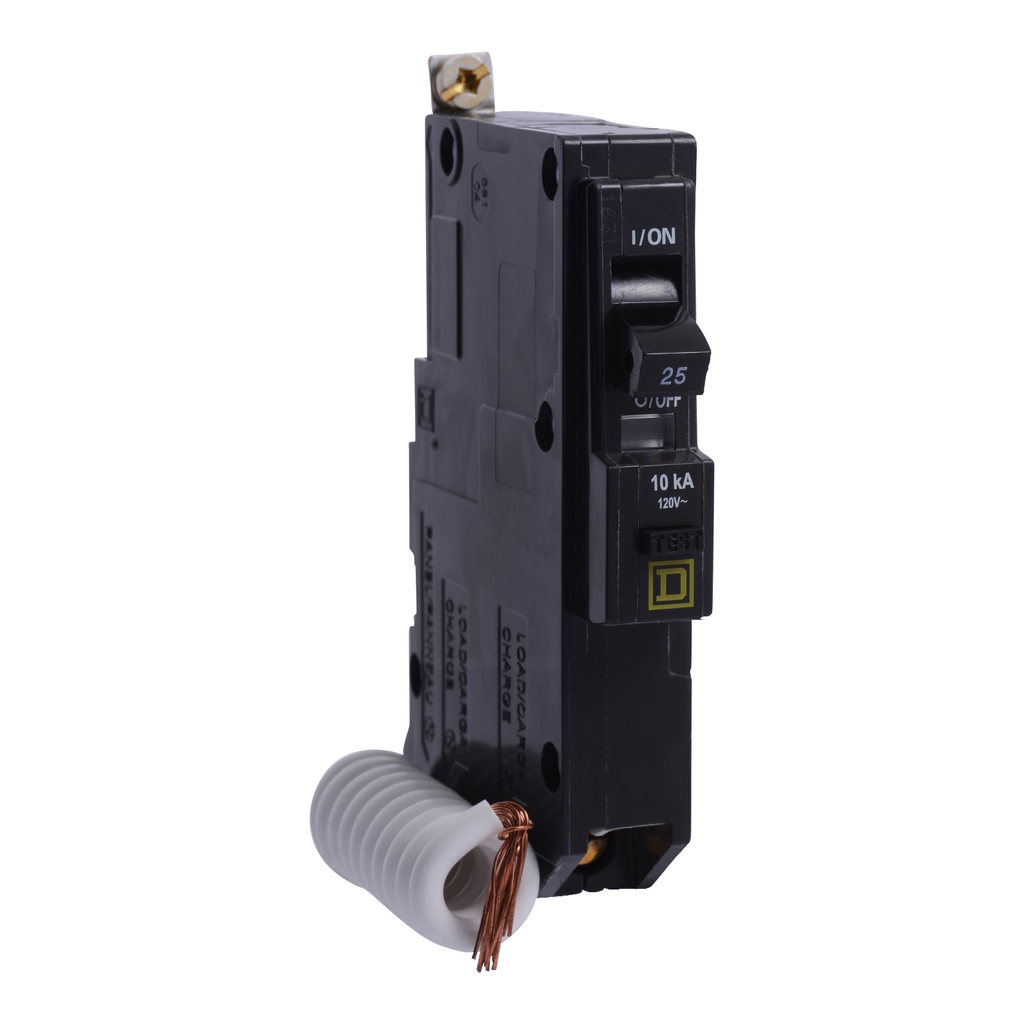

Mini circuit breaker, QO, 25A, 1 pole, 120 VAC, 10 kA, 30mA grd fault B, bolt on mount

Mini circuit breaker, QO, 25A, 1 pole, 120 VAC, 10 kA, 30mA grd fault B, bolt on mount

SQDQOB125EPD QOB125EPD 785901362807
378.02 / EACH
  • Certifications: CSA, UL Listed
  • Circuit Breaker Type: Ground Fault Protecting Class B 30 MA
  • Depth: 2.91 in
  • Height: 4.12 in
  • Line Rated Current: 25 A
  • Mounting Type: Bolt-On
  • Short Circuit Current: 10 kA
  • Warranty Length: 18 mth
  • Width: 0.75 in
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick-break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This one pole QO bolt on miniature circuit breaker is rated as 25A, 120 VAC. This circuit breaker provides 10 kA breaking capacity. This circuit breaker is UL Listed as SWD (switching duty) rated. It is suitable for switching 120 Vac fluorescent lighting loads. A full line of factory installed accessories, such as shunt trips, auxiliary switches and alarm switches are available. This circuit breaker has Class B 30mA ground fault with a pigtail. The pressure plate connectors will accept one 14 AWG to 8 AWG copper or 12 AWG to 8 AWG aluminum wire. This circuit breaker has a height of 4.12 inches, a width of 0.75 inch and a depth of 2.91 inches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
  • Product Description
  • Specifications
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick-break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This one pole QO bolt on miniature circuit breaker is rated as 25A, 120 VAC. This circuit breaker provides 10 kA breaking capacity. This circuit breaker is UL Listed as SWD (switching duty) rated. It is suitable for switching 120 Vac fluorescent lighting loads. A full line of factory installed accessories, such as shunt trips, auxiliary switches and alarm switches are available. This circuit breaker has Class B 30mA ground fault with a pigtail. The pressure plate connectors will accept one 14 AWG to 8 AWG copper or 12 AWG to 8 AWG aluminum wire. This circuit breaker has a height of 4.12 inches, a width of 0.75 inch and a depth of 2.91 inches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
  • Ambient Air Temperature For Operation : 40 °C
  • Tightening Torque : 4.6-4.6 N.m 2.5-10 mm² (AWG 16...AWG 14) || 4.6-4.6 N.m 4-20 mm² (AWG 12...AWG 4)
  • [Ue] Rated Operational Voltage : 120 V AC
  • Product Or Component Type : miniature circuit-breaker
  • Short-Circuit Current : 10 kA
  • Warranty : 18 months
  • Maximum Width : 0.75 in
  • Poles Description : 1P
  • Mounting Mode : bolt-on
  • Line Rated Current : 25 A
  • Maximum Depth : 2.91 in
  • Electrical Connection : pressure plate
  • Awg Gauge : AWG 14...AWG 8 copper || AWG 12...AWG 8 aluminium
  • Breaking Capacity : 10 kA 120 V AC 50/60 Hz
  • Range Of Product : QO
  • Product Certifications : UL Listed || CSA
  • Maximum Height : 4.12 in
  • Number Of Spaces Required : 1
  • Circuit Breaker Type : ground fault protecting class B 30 mA
  • Circuit Breaker Application : not rated
