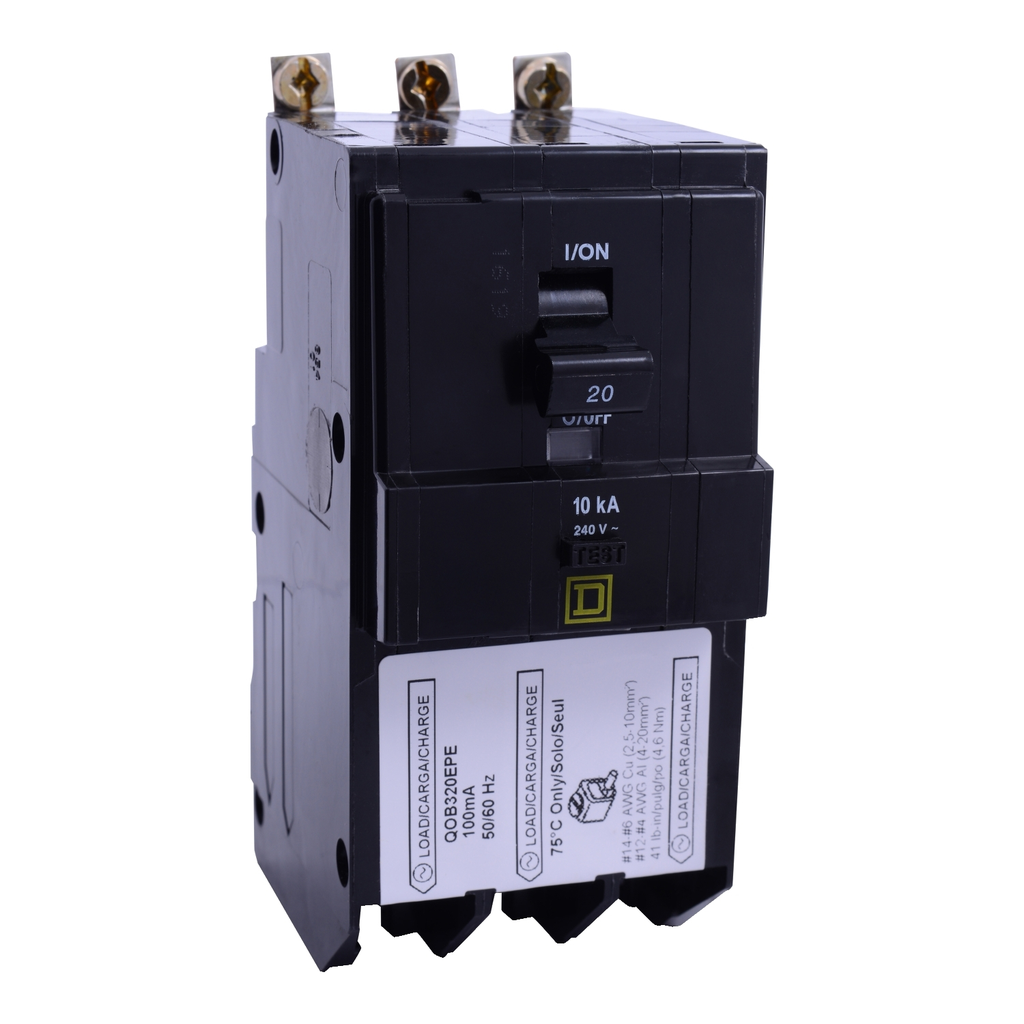

Mini circuit breaker, QO, 20A, 3 pole, 240VAC, 10kA, bolt on, 100mA grd fault B [TAA]

MINI CIRCUIT BREAKER, QO, 20A,

SQDQOB320EPE QOB320EPE SQDQOB320EPE
0.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-Mini circuit breaker, QO, 20A, 3 pole, 240VAC, 10kA, bolt on, 100mA grd fault B [TAA]-1
  • Depth: 74 mm
  • Warranty Length: 18 mth
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 3 pole QO circuit breaker is rated at 20A at 240VAC. This unit provides 10kA breaking capacity and bolt on mounting. This product includes a 100mA ground fault B protection. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
QTY
  • Product Description
  • Features
  • Specifications
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 3 pole QO circuit breaker is rated at 20A at 240VAC. This unit provides 10kA breaking capacity and bolt on mounting. This product includes a 100mA ground fault B protection. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Features
    • Provides superior circuit protection
    • Reliable and durable
    • Plug-on neutral design and shorter footprint for faster installs
    • Simple design and clear instructions for quick setup
    • This product is TAA compliant.
  • Conformance Attributes
    • Product Certifications : UL Listed, CSA
  • Complementary Attributes
    • Line Rated Current : 20 A
  • Important Information Attributes
    • Persona Type Ids : EU, LC, OM
    • Persona Type Names : End User, Contractor, Original Equipment Manufacturer
    • AWG Gauge : AWG 14...AWG 8 copper, AWG 12...AWG 8 aluminium
    • Tightening Torque : 4-4 N.m, 4.6-4.6 N.m 4-20 mm² (AWG 12...AWG 4)
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-19
    • Manufacturer : Schneider Electric
    • Device Type : LV equipment - Low voltage circuit breaker
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2212005
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : COMMERCIAL
    • Market Segmentation : Commercial
    • H And D Domain : Safety
    • H And D Subrange : COM
    • H And D Enrichment Assignment : yes
    • H And D Enrichment Function : EPD
    • H And D Enrichment Class 3 : Earth leakage protection devices
    • H And D Enrichment Class 4 : EPD
    • Circuit Breaker Application : not rated
    • Circuit Breaker Type : ground fault protecting class B 100 mA
    • Electrical Connection : pressure plate
    • Energy Efficiency Optimized : False
    • Mounting Mode : bolt-on
    • Package Weight Lbs : 603.278 g
    • Poles Description : 3P
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : miniature circuit-breaker
    • Range Of Product : QO
    • Returnability : Yes
    • Sustainable Packaging : No
    • Ue Rated Operational Voltage2 : 240 V AC
    • Medium Desc : Mini circuit breaker, QO, 20A, 3 pole, 240VAC, 10kA, bolt on, 100mA grd fault B [TAA]
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Pep Code : ENVPEP2212005EN
    • Global Commercial Status : Commercialised
    • Ue Rated Operational Voltage5 : 240 V AC
  • Environment Attributes Main
    • Take Back : No, Nej
    • China ROHS Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    • EU ROHS Directive : Compliant By Exemption , Compliant with Exemptions
    • ROHS Exemption Information : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : 40 °C
    • Circularity Profile : ENVEOLI2212005
    • Environmental Disclosure : ENVPEP2212005EN
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2212005EN
  • General Attributes
    • Product Or Component Type : miniature circuit-breaker
    • Range Of Product : QO
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Compliance : TAA Compliant
    • Depth : 74 mm
