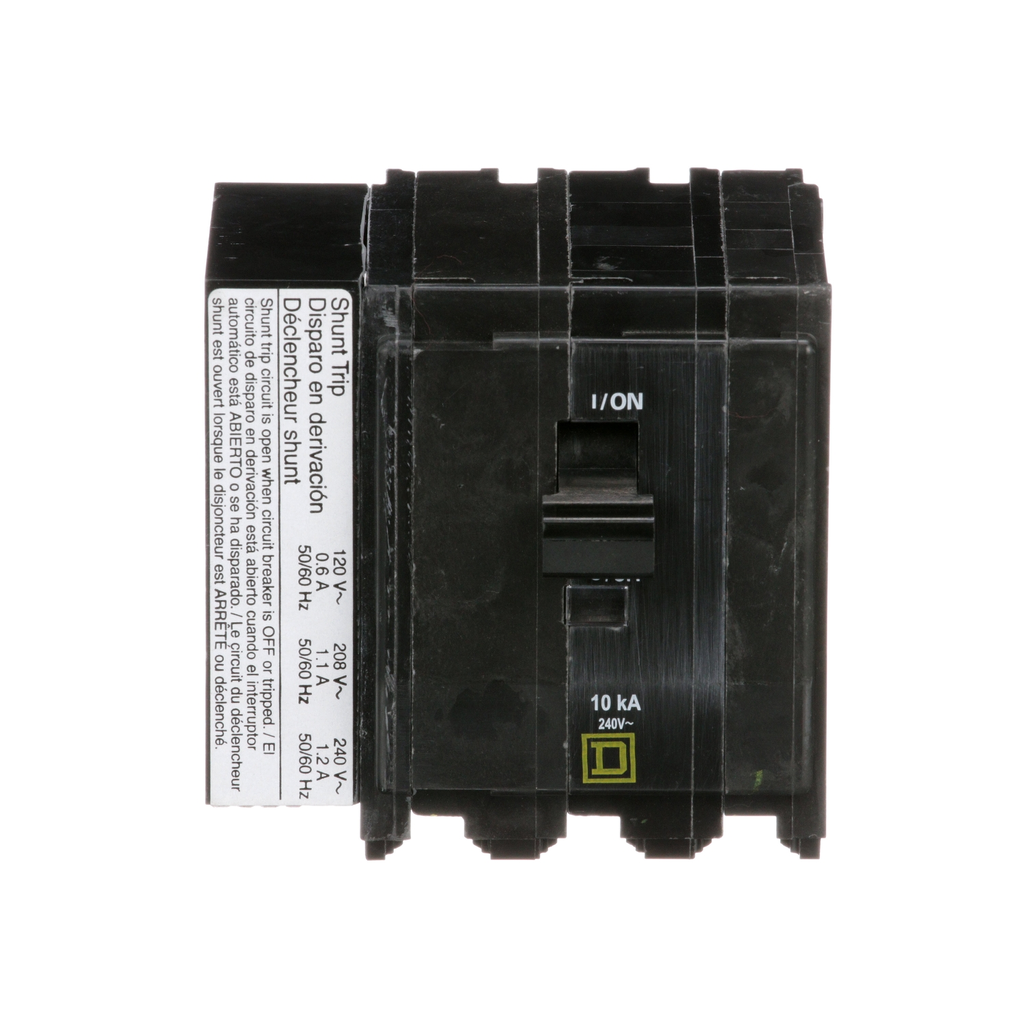

Mini circuit breaker, QO, 20A, 3 pole, 120/240 VAC, 10 kA, plug in mount, AC shunt trip

Mini circuit breaker, QO, 20A, 3 pole, 120/240 VAC, 10 kA, plug in mount, AC shunt trip

SQDQO3201021 QO3201021 785901494096
216.91 / EACH
  • Certifications: CSA, UL Listed
  • Circuit Breaker Type: Standard
  • Depth: 2.91 in
  • Height: 3 in
  • Line Rated Current: 20 A
  • Mounting Type: Plug-In
  • Short Circuit Current: 10 kA, 5 kA
  • Warranty Length: 18 mth
  • Width: 3 in
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick-break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This three pole QO plug in miniature circuit breaker is rated as 20A, 120/240 VAC. This circuit breaker provides 10 kA breaking capacity. This circuit breaker is UL Listed as SWD (switching duty) rated. It is suitable for switching 120 Vac fluorescent lighting loads. A full line of factory installed accessories, such as shunt trips, auxiliary switches and alarm switches are available. This circuit breaker has 120/208/240 VAC 50/60 Hz shunt trip. The pressure plate connectors will accept one 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.00 inches, a width of 3.00 inches and a depth of 2.91 inches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
  • Product Description
  • Specifications
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick-break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This three pole QO plug in miniature circuit breaker is rated as 20A, 120/240 VAC. This circuit breaker provides 10 kA breaking capacity. This circuit breaker is UL Listed as SWD (switching duty) rated. It is suitable for switching 120 Vac fluorescent lighting loads. A full line of factory installed accessories, such as shunt trips, auxiliary switches and alarm switches are available. This circuit breaker has 120/208/240 VAC 50/60 Hz shunt trip. The pressure plate connectors will accept one 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.00 inches, a width of 3.00 inches and a depth of 2.91 inches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
  • Breaking Capacity : 10 kA 120/240 V AC 50/60 Hz || 10 kA 240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz || 5 kA 48 V DC
  • Warranty : 18 months
  • Circuit Breaker Type : standard
  • Ambient Air Temperature For Operation : 40 °C
  • Maximum Depth : 2.91 in
  • Accessory / Separate Part Type : shunt trip 120/208/240 V AC
  • Product Or Component Type : miniature circuit-breaker
  • Short-Circuit Current : 10 kA || 5 kA
  • Maximum Height : 3 in
  • Number Of Spaces Required : 4
  • Product Certifications : UL Listed || CSA
  • Mounting Mode : plug-in
  • Range Of Product : QO
  • Electrical Connection : pressure plate
  • Circuit Breaker Application : HACR rated
  • Poles Description : 3P
  • Awg Gauge : AWG 14...AWG 8 copper or aluminium
  • [Ue] Rated Operational Voltage : 120/240 V AC || 240 V AC || 120 V AC || 48 V DC
  • Tightening Torque : 5-5 N.m 10-25 mm² (AWG 8...AWG 2)
  • Line Rated Current : 20 A
  • Maximum Width : 3 in
