SQUARE D

Mini circuit breaker, QO, 20A, 2 pole, 120/240VAC, 65kA, bolt on, fungal treatment

MINI CIRCUIT BREAKER, QO, 20A,

SQDQHB220FT QHB220FT 3606486145067
397.28 / EA
http://schema.org/OutOfStock

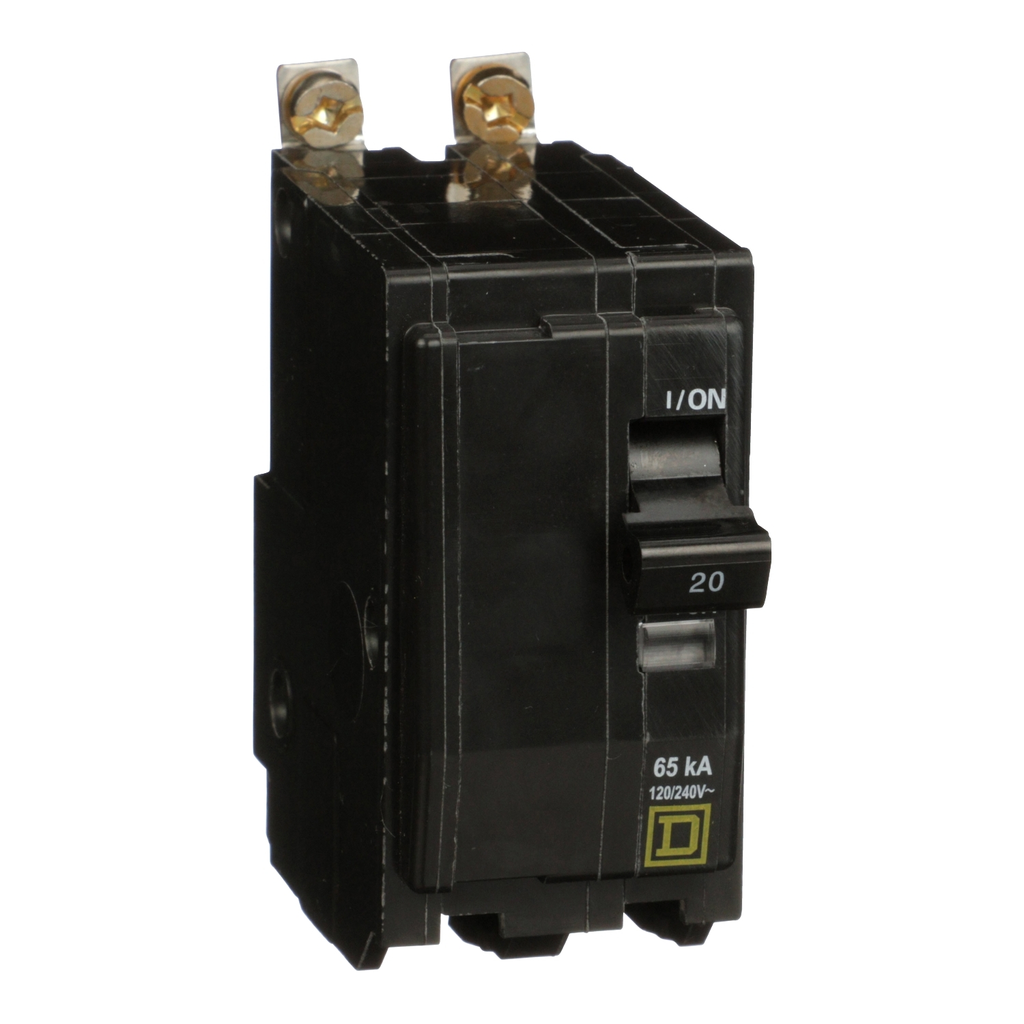

Mayer-DDS-Mini circuit breaker, QO, 20A, 2 pole, 120/240VAC, 65kA, bolt on, fungal treatment-1
  • Warranty Length: 18 mth
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 65kA breaking capacity and bolt on mounting. This product includes a fungal treatment. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
QTY
  • Product Description
  • Specifications
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 65kA breaking capacity and bolt on mounting. This product includes a fungal treatment. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
  • Complementary Attributes
    • UE Rated Operational Voltage : 120/240 V AC, 120/240 V AC, 120 V AC, 120 V AC
  • Important Information Attributes
    • AWG Gauge : AWG 14...AWG 8 copper or aluminium, AWG 14...AWG 8 copper or aluminium
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Device Type : LV equipment - Low voltage circuit breaker
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • With Recycled Cardboard : No
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • H And D Domain : Safety
    • H And D Subrange : COM
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : MCB
    • H And D Enrichment Class 3 : Circuit Breakers
    • H And D Enrichment Class 4 : MCB UL 2P
    • Circuit Breaker Type : standard
    • Energy Efficiency Optimized : False
    • Package Weight Lbs : 254.012 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : miniature circuit-breaker
    • Range Of Product : QO
    • Returnability : No
    • Sustainable Packaging : No
    • Tightening Torque : 4.6-4.6 N.m
    • Pep Code : ENVPEP2111016EN
    • Product Kit Identifier : N
  • Environment Attributes Main
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2111016EN
    • EU ROHS Directive : Compliant
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2111016EN
  • General Attributes
    • Product Or Component Type : miniature circuit-breaker
    • Range Of Product : QO
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
