SQUARE D

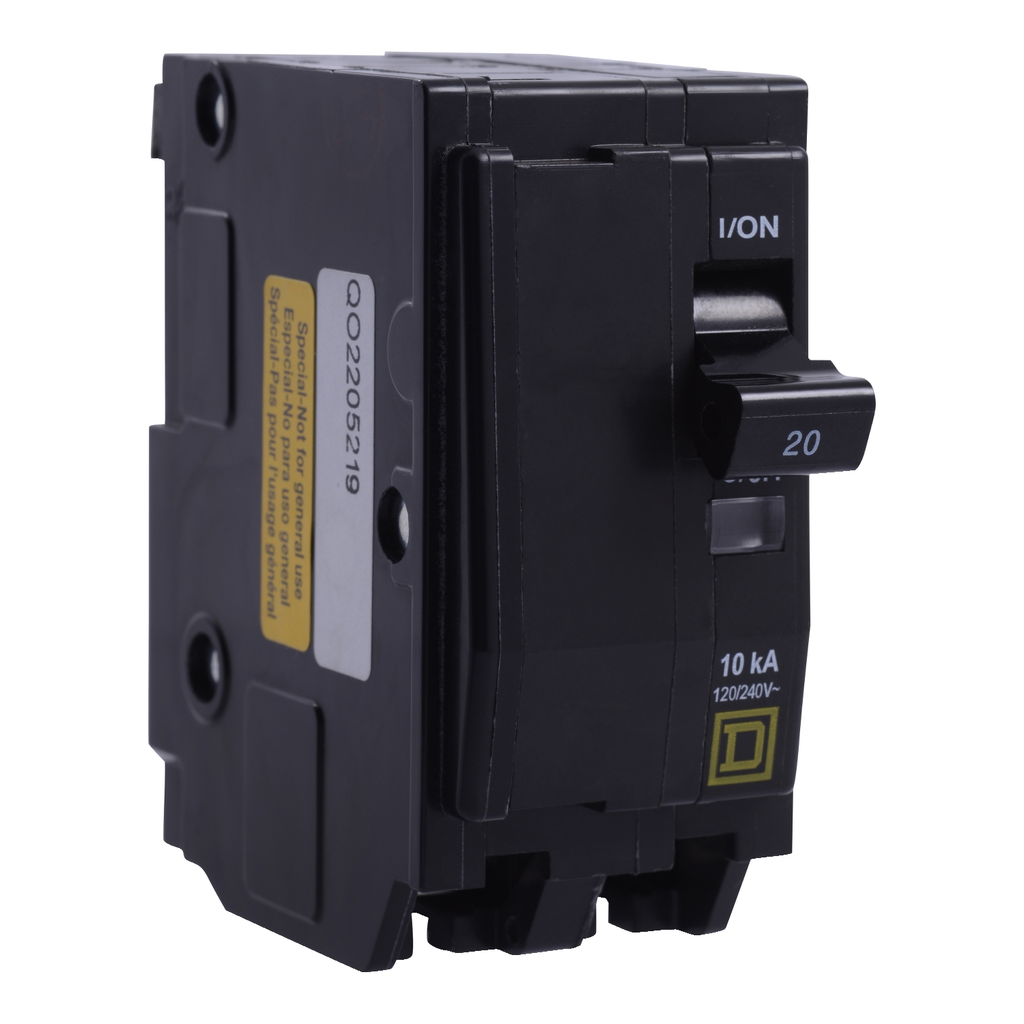

Mini circuit breaker, QO, 20A, 2 pole, 120/240VAC, 10kA, plug in, high amp lugs

MINIATURE CIRCUIT BREAKER 120/

SQDQO2205219 QO2205219 785901322986
48.44 / EA
http://schema.org/OutOfStock
Mayer-DDS-Mini circuit breaker, QO, 20A, 2 pole, 120/240VAC, 10kA, plug in, high amp lugs-1
  • Depth: 74 mm
  • Height: 76 mm
  • Net Weight: 0.268 kg
  • Warranty Length: 18 mth
  • Weight: 0.268 kg
  • Width: 38 mm
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes high amp lugs. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
QTY
  • Product Description
  • Specifications
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes high amp lugs. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
  • Environment
    • Product Certifications : UL Listed || CSA
    • Ambient Air Temperature For Operation : 40 °C
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2111016
    • Halogen Content Performance : Halogen free product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Take-Back : No
    • Eu Rohs Directive : Compliant
  • Complementary
    • Height : 76 mm
    • Tightening Torque : 4-4 N.m
    • Number Of Spaces Required : 2
    • Net Weight : 0.268 kg
    • Breaking Capacity : 10 kA 120/240 V AC || 10 kA 120 V AC
    • Awg Gauge : AWG 8...AWG 2 copper or aluminium
    • Width : 38 mm
    • Depth : 74 mm
  • Specifications
    • Country of Origin : Mexico
    • Width : 38 mm
    • Height : 76 mm
    • Weight : 0.268 kg
    • Circuit Breaker Type : standard
    • Range Of Product : QO
    • Product Or Component Type : miniature circuit-breaker
    • Circuit Breaker Application : HACR rated
    • Mounting Mode : plug-in
    • Poles Description : 2P
    • Electrical Connection : high ampere lugs
    • Line Rated Current : 20 A
    • [Ue] Rated Operational Voltage : 120/240 V AC || 120 V AC
