Mini circuit breaker, QO, 20A, 2 pole, 120/240VAC, 10kA, bolt on, combo ARC fault, pigtail [TAA]

MINIATURE CIRCUIT BREAKER 120V

SQDQOB220CAFI QOB220CAFI 785901809371
668.65 / EA
http://schema.org/OutOfStock

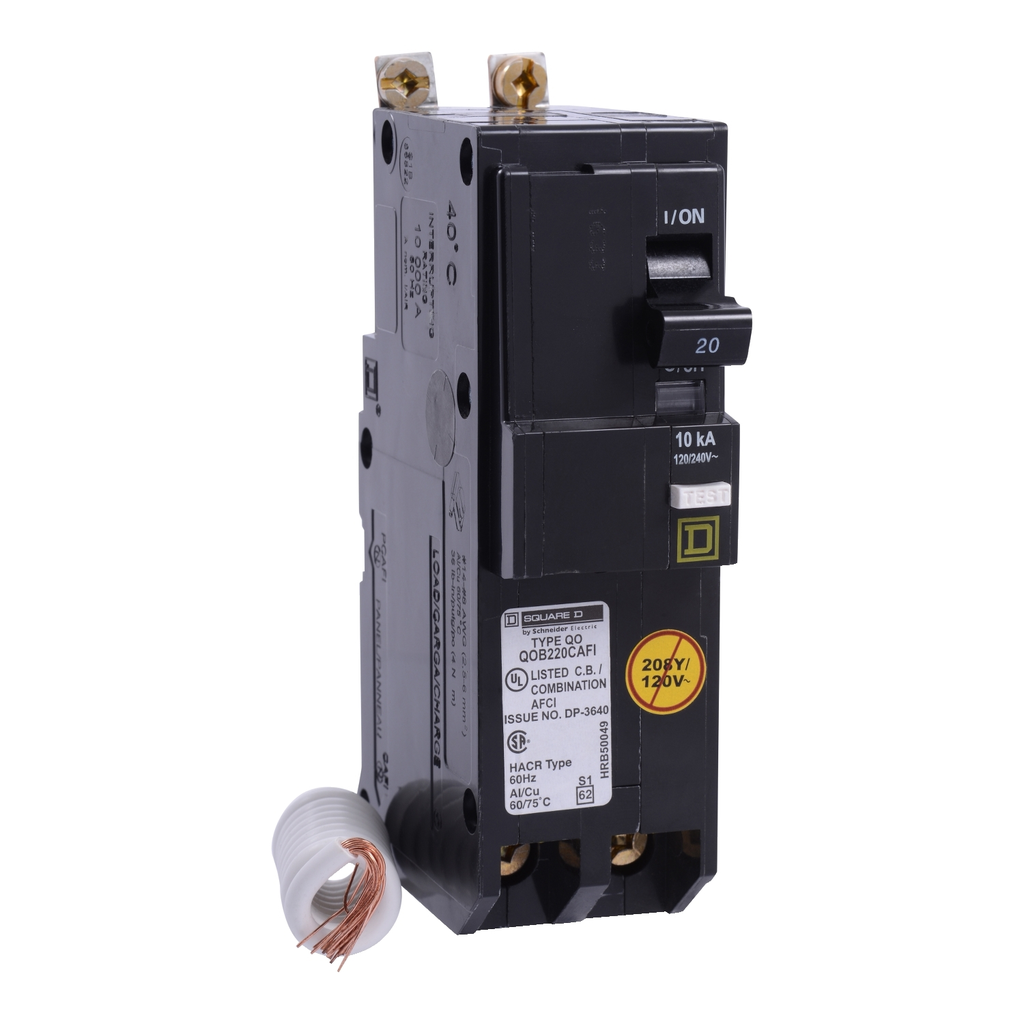

Mayer-DDS-Mini circuit breaker, QO, 20A, 2 pole, 120/240VAC, 10kA, bolt on, combo ARC fault, pigtail [TAA]-2
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 10kA breaking capacity and bolt on mounting. This product includes a combination arc fault with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
QTY
  • Product Description
  • Features
  • Specifications
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 10kA breaking capacity and bolt on mounting. This product includes a combination arc fault with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
  • Prop 65
    • WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
  • Complementary Attributes
    • UE Rated Operational Voltage : 120/240 V AC, 120/240 V AC, 120 V AC, 120 V AC
  • Important Information Attributes
    • Persona Type Ids : EU, LC
    • Persona Type Names : End User, Contractor
    • AWG Gauge : AWG 14...AWG 8 copper or aluminium, AWG 14...AWG 8 copper or aluminium, AWG 14...AWG 10 copper, AWG 14...AWG 10 copper
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-19
    • Device Type : LV equipment - Low voltage circuit breaker
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2212005
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : L - LOB initialized
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : COMMERCIAL
    • Market Segmentation : Commercial
    • H And D Domain : Safety
    • H And D Subrange : COM
    • H And D Enrichment Assignment : yes
    • H And D Enrichment Function : AFCI
    • Circuit Breaker Type : combination ARC-fault
    • Energy Efficiency Optimized : False
    • Package Weight Lbs : 431 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : miniature circuit-breaker
    • Range Of Product : QO
    • Returnability : No
    • Sustainable Packaging : No
    • Tightening Torque : 4-4 N.m
    • Relationship Type : cross-selling relationship
    • Pep Code : ENVPEP2212005EN
    • Product Kit Identifier : N
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI2212005
    • Environmental Disclosure : ENVPEP2212005EN
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2212005EN
  • General Attributes
    • Product Or Component Type : miniature circuit-breaker
    • Range Of Product : QO
  • Specifications
    • Compliance : TAA
