Mini circuit breaker, QO, 20A, 2 pole, 120/240VAC, 10kA, bolt on, 30mA grd fault B, alarm switch [TAA]

MINIATURE CIRCUIT BREAKER 120/

SQDQOB220EPD2100 QOB220EPD2100 785901088714
823.08 / EACH
http://schema.org/OutOfStock
Mini circuit breaker, QO, 20A, 2 pole, 120/240VAC, 10kA, bolt on, 30mA grd fault B, alarm switch [TAA]
  • Country of Origin: USA
  • Depth: 74 mm
  • Height: 105 mm
  • Net Weight: 0.526 kg
  • Warranty Length: 18 mth
  • Weight: 0.526 kg
  • Width: 57 mm
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 10kA breaking capacity and bolt on mounting. This product includes a 30mA ground fault B protection and a alarm switch. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
QTY
  • Product Description
  • Features
  • Specifications
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 10kA breaking capacity and bolt on mounting. This product includes a 30mA ground fault B protection and a alarm switch. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
  • Prop 65
    • WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL Listed || CSA
    • Ambient Air Temperature For Operation : 40 °C
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2212005
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Circularity Profile : ENVEOLI2212005
    • Take-Back : No
    • Eu Rohs Directive : Compliant with Exemptions
  • Complementary
    • Height : 105 mm
    • Tightening Torque : 4-4 N.m || 4.6-4.6 N.m 4-20 mm² (AWG 12...AWG 4)
    • Number Of Spaces Required : 3
    • Net Weight : 0.526 kg
    • Breaking Capacity : 10 kA 120/240 V AC || 10 kA 120 V AC
    • Awg Gauge : AWG 14...AWG 8 copper || AWG 12...AWG 8 aluminium
    • Width : 57 mm
    • Depth : 74 mm
  • Specifications
    • Country of Origin : United States
    • Width : 57 mm
    • Height : 105 mm
    • Weight : 0.526 kg
    • Circuit Breaker Type : ground fault protecting class B 30 mA
    • Range Of Product : QO

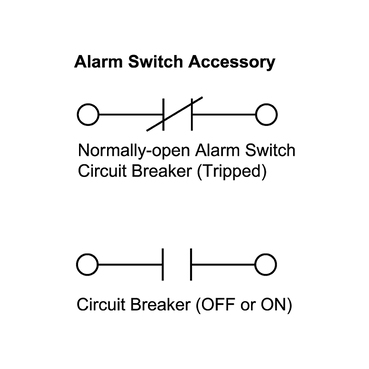

    • Accessory / Separate Part Type : alarm switch 120 V AC 1A
    • Product Or Component Type : miniature circuit-breaker
    • Circuit Breaker Application : not rated
    • Mounting Mode : bolt-on
    • Poles Description : 2P
    • Electrical Connection : pressure plate
    • Line Rated Current : 20 A
    • [Ue] Rated Operational Voltage : 120/240 V AC || 120 V AC
