SQUARE D

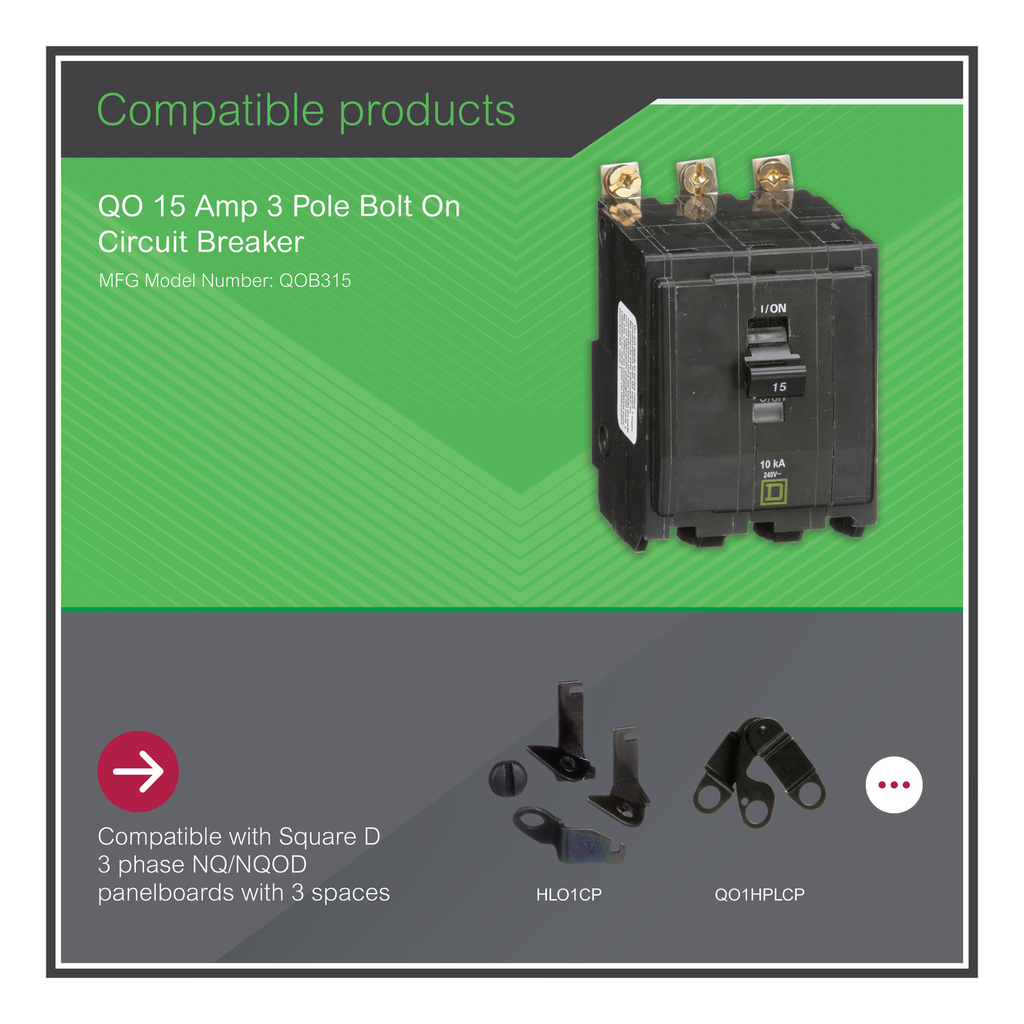

Mini circuit breaker, QO, 15A, 3 pole, 120/240VAC, 10kA, bolt on

BREAKER - 3P 240V 15A

SQDQOB315 QOB315 785901417064
325.42 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Mini circuit breaker, QO, 15A, 3 pole, 120/240VAC, 10kA, bolt on-2
  • Country of Origin: USA
  • Depth: 74 mm
  • Height: 76 mm
  • Net Weight: 0.386 kg
  • Warranty Length: 18 mth
  • Weight: 0.386 kg
  • Width: 57 mm
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 3 pole QO circuit breaker is rated at 15A at 120/240VAC. This unit provides 10kA breaking capacity and bolt on mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
QTY
  • Product Description
  • Specifications
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 3 pole QO circuit breaker is rated at 15A at 120/240VAC. This unit provides 10kA breaking capacity and bolt on mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
  • Environment
    • Product Certifications : UL Listed || CSA
    • Ambient Air Temperature For Operation : 40 °C
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2111016
    • Halogen Content Performance : Halogen free product
    • Packaging Without Single Use Plastic : Yes
    • Toxic Heavy Metal Free : Yes
    • Scip Number : af42fb01-813d-40c0-ae28-b8b3299dbc99
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Reach Free Of Svhc : Yes
    • Circularity Profile : N/A
    • Take-Back : No
    • Eu Rohs Directive : Compliant
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 19.6801913771
  • Complementary
    • Height : 76 mm
    • Tightening Torque : 4-4 N.m
    • Number Of Spaces Required : 3
    • Net Weight : 0.386 kg
    • Breaking Capacity : 10 kA 120/240 V AC || 10 kA 240 V AC || 10 kA 120 V AC
    • Awg Gauge : AWG 14...AWG 8 copper or aluminium
    • Width : 57 mm
    • Depth : 74 mm
  • Specifications
    • Country of Origin : United States
    • Width : 57 mm
    • Height : 76 mm
    • Weight : 0.386 kg
    • Circuit Breaker Type : standard
    • Range Of Product : QO
    • Product Or Component Type : miniature circuit-breaker
    • Circuit Breaker Application : HACR rated
    • Mounting Mode : bolt-on
    • Poles Description : 3P
    • Electrical Connection : pressure plate
    • Line Rated Current : 15 A
    • [Ue] Rated Operational Voltage : 120/240 V AC || 240 V AC || 120 V AC
