SQUARE D

Mini circuit breaker, QO, 15A, 2 pole, 120/240VAC, 10kA, plug in, combo ARC fault, pigtail [TAA]

MINIATURE CIRCUIT BREAKER 120V

SQDQO215CAFI QO215CAFI 785901388517
132.32 / EACH
http://schema.org/OutOfStock

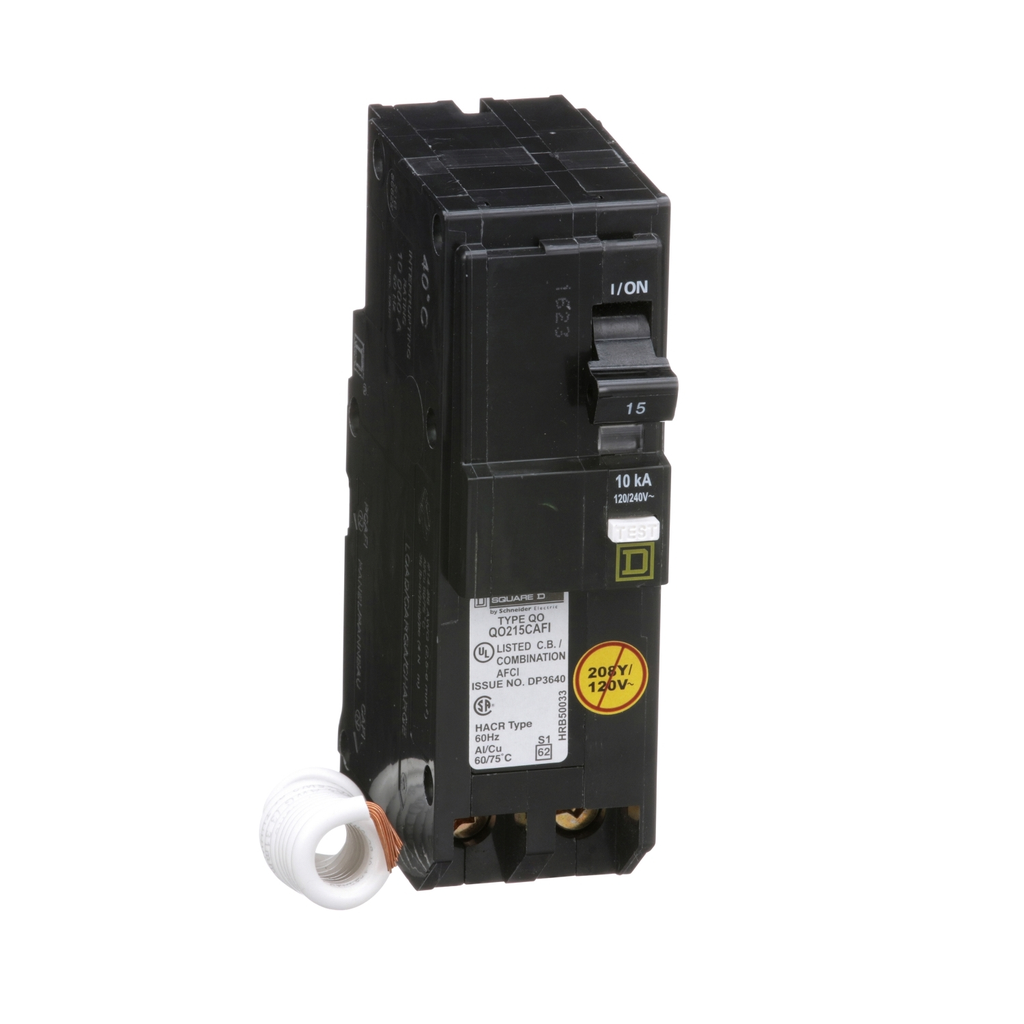

Mayer-DDS-Mini circuit breaker, QO, 15A, 2 pole, 120/240VAC, 10kA, plug in, combo ARC fault, pigtail [TAA]-2
  • Country of Origin: USA
  • Depth: 74 mm
  • Height: 121 mm
  • Net Weight: 0.431 kg
  • Weight: 0.431 kg
  • Width: 38 mm
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 15A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes a combination arc fault with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
QTY
  • Product Description
  • Features
  • Specifications
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 15A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes a combination arc fault with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
  • Prop 65
    • WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
  • Specifications
    • Country of Origin : United States
    • Width : 38 mm
    • Height : 121 mm
    • Weight : 0.431 kg
    • Connections - Terminals : pigtail neutral
    • Circuit Breaker Type : combination ARC-fault
    • Range Of Product : QO
    • Product Or Component Type : miniature circuit-breaker
    • Circuit Breaker Application : HACR rated
    • Mounting Mode : plug-in
    • Poles Description : 2P
    • Electrical Connection : pressure plate
    • Line Rated Current : 15 A
    • [Ue] Rated Operational Voltage : 120/240 V AC || 120 V AC
  • Complementary
    • Height : 121 mm
    • Tightening Torque : 4-4 N.m
    • Number Of Spaces Required : 2
    • Net Weight : 0.431 kg
    • Breaking Capacity : 10 kA 120/240 V AC || 10 kA 120 V AC
    • Awg Gauge : AWG 14...AWG 8 copper || AWG 12...AWG 8 aluminium
    • Width : 38 mm
    • Depth : 74 mm
  • Environmental data
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : Yes
    • California Proposition 65 : WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
    • Take-Back : No
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 41.9866613306
  • Environment
    • Product Certifications : UL Listed || CSA
    • Ambient Air Temperature For Operation : 40 °C
