SQUARE D

Mini circuit breaker, QO, 15A, 2 pole, 120/240VAC, 10kA, plug in, 30mA grd fault B [TAA]

MINIATURE CIRCUIT BREAKER 120/

SQDQO215EPD QO215EPD 785901120735
748.89 / EACH
http://schema.org/OutOfStock

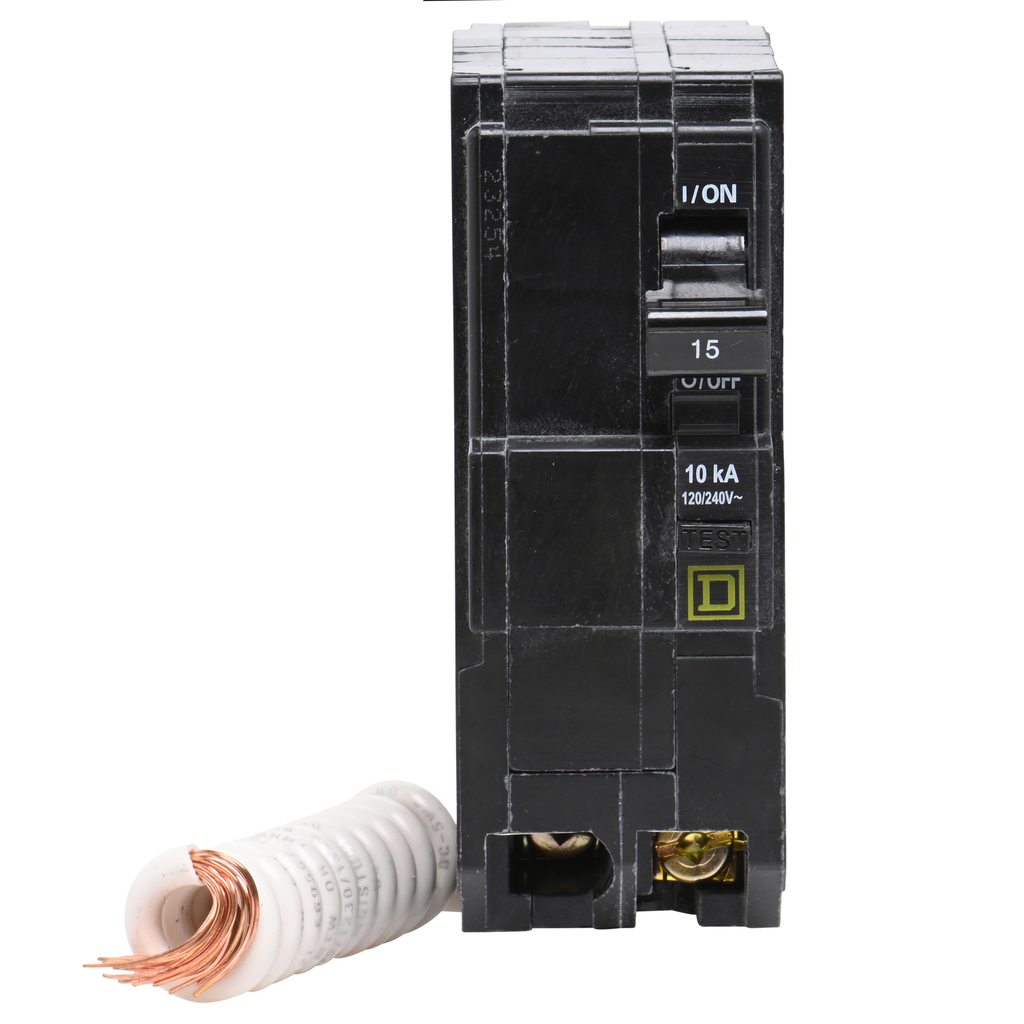

Mayer-DDS-Mini circuit breaker, QO, 15A, 2 pole, 120/240VAC, 10kA, plug in, 30mA grd fault B [TAA]-2
  • Country of Origin: USA
  • Depth: 74 mm
  • Height: 105 mm
  • Net Weight: 0.400 kg
  • Warranty Length: 18 mth
  • Weight: 0.400 kg
  • Width: 38 mm
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 15A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes a 30mA ground fault B protection. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
QTY
  • Product Description
  • Features
  • Specifications
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 15A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes a 30mA ground fault B protection. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
  • Prop 65
    • WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL Listed || CSA
    • Ambient Air Temperature For Operation : 40 °C
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : No
    • Environmental Disclosure : ENVPEP2212005
    • Packaging Without Single Use Plastic : Yes
    • California Proposition 65 : WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
    • Circularity Profile : ENVEOLI2212005
    • Take-Back : No
  • Complementary
    • Height : 105 mm
    • Tightening Torque : 4-4 N.m || 4.6-4.6 N.m 4-20 mm² (AWG 12...AWG 4)
    • Number Of Spaces Required : 2
    • Net Weight : 0.400 kg
    • Breaking Capacity : 10 kA 120/240 V AC || 10 kA 120 V AC
    • Awg Gauge : AWG 14...AWG 8 copper || AWG 12...AWG 8 aluminium
    • Width : 38 mm
    • Depth : 74 mm
  • Specifications
    • Country of Origin : United States
    • Width : 38 mm
    • Height : 105 mm
    • Weight : 0.400 kg
    • Circuit Breaker Type : ground fault protecting class B 30 mA
    • Range Of Product : QO
    • Product Or Component Type : miniature circuit-breaker
    • Circuit Breaker Application : not rated
    • Mounting Mode : plug-in
    • Poles Description : 2P
    • Electrical Connection : pressure plate
    • Line Rated Current : 15 A
    • [Ue] Rated Operational Voltage : 120/240 V AC || 120 V AC
