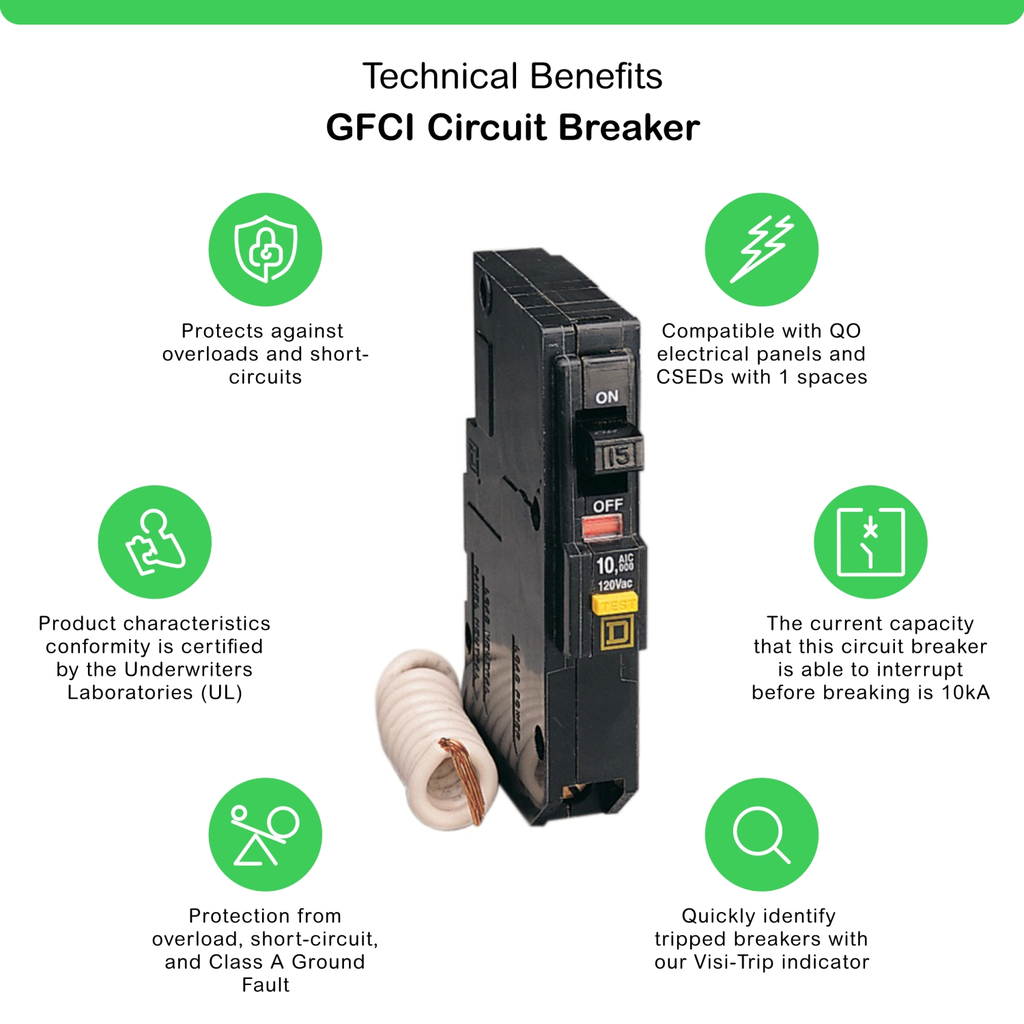

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 1 pole QO circuit breaker is rated at 15A at 120VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.

• Prop 65
• WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

• Complementary Attributes
• UE Rated Operational Voltage : 120 V AC, 120 V AC
• Important Information Attributes
• Persona Type Ids : EU, EUA, LC, OM, SC
• Persona Type Names : End User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
• AWG Gauge : AWG 14...AWG 8 copper, AWG 14...AWG 8 copper, AWG 12...AWG 8 aluminium, AWG 12...AWG 8 aluminium
• Circuit Breaker Type : ground fault protecting class A 6 mA, ground fault protecting class A 6 mA, ground fault protecting class A 6 mA
• Tightening Torque : 4-4 N.m, 4.6-4.6 N.m 4-20 mm² (AWG 12...AWG 4), 4.6-4.6 N.m 4-20 mm² (AWG 12...AWG 4), 4.6-4.6 N.m 4-20 mm² (AWG 12...AWG 4)
• Carbon Footprint Of The Distribution Phase A4 : 0.0589116444, 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.0476642732
• Carbon Footprint Of The Installation Phase A5 : 0.0016075448, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 2 kg CO2 eq., 1.785270314
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 37 kg CO2 eq., 37.375
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-19
• HTML Description : Square D QO Mini CB, QO, 15 A, 1P, 120 V, 10 kA, Plug in, GF
• Manufacturer : Schneider Electric
• Device Type : LV equipment - Low voltage circuit breaker
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2212005
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : L - LOB initialized
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : RESIDENTIAL
• Market Segmentation : Residential
• H And D Domain : Safety
• H And D Subrange : RESI
• H And D Enrichment Assignment : yes
• H And D Enrichment Function : GFCI
• H And D Enrichment Class 3 : Earth leakage protection devices
• H And D Enrichment Class 4 : GFCI
• Energy Efficiency Optimized : False
• Package Weight Lbs : 231.34 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : miniature circuit-breaker
• Range Of Product : QO
• Returnability : Yes
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 39 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2212005EN
• Pep Verification Date : 2023-08-01
• PCR Version : PCR-ed3-EN-2015 04 02
• PSR Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent external review
• Functional Unit Description : Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120 VAC and rated current 15A In. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1 Pole;& 10- Rated breaking capacity 10 kA;
• Functional Unit Unit : unit
• Product Kit Identifier : N
• Environment Attributes Main
• EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
• ROHS Exemption Information : Yes
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Carbon Footprint : 39.2684537763
• Circularity Profile : ENVEOLI2212005
• Environmental Disclosure : ENVPEP2212005EN
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : Yes
• Pep Code : ENVPEP2212005EN
• Pep Verification Date : 2023-08-01
• PCR Version : PCR-ed3-EN-2015 04 02
• PSR Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Product Or Component Type : miniature circuit-breaker
• Range Of Product : QO
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Compliance : TAA
