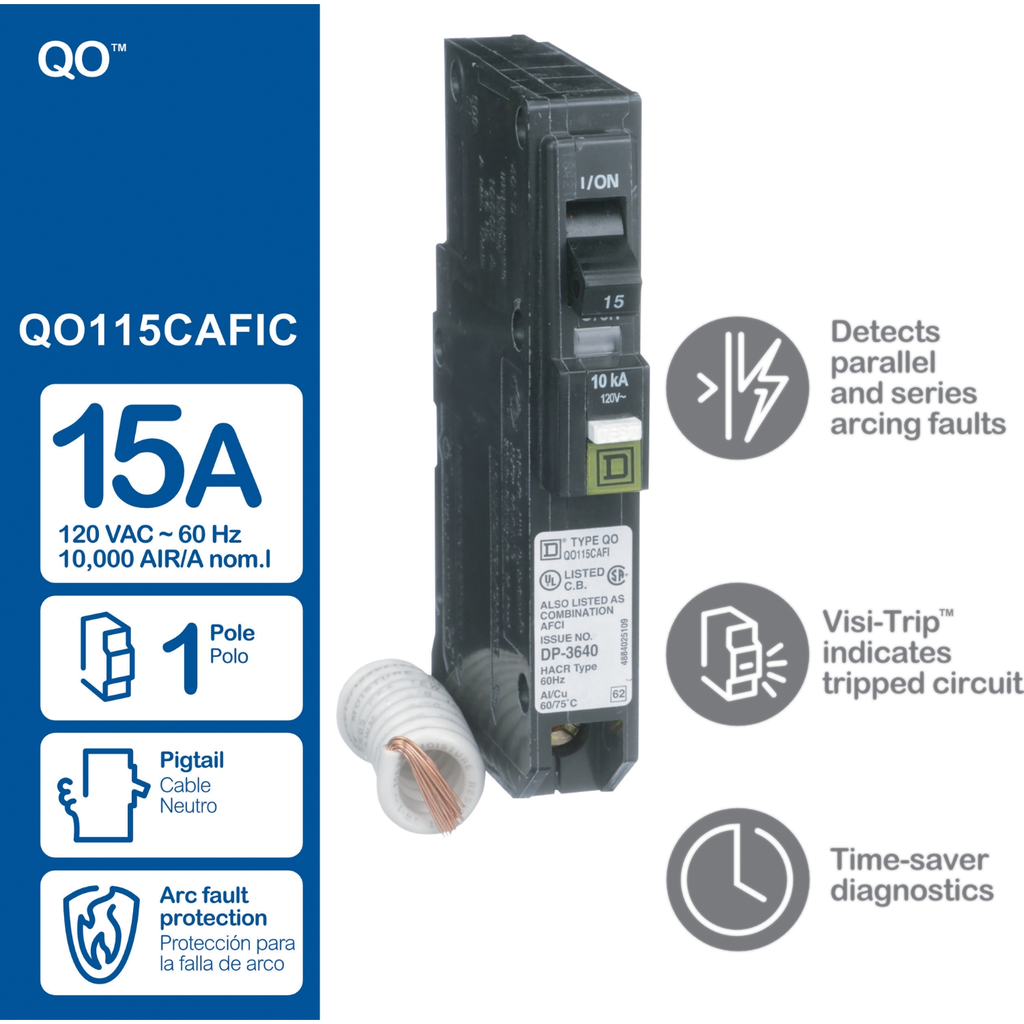

Mini circuit breaker, QO, 15A, 1 pole, 120/240 VAC, 10 kA, combo arc fault, pigtail, plug in mount

Mini circuit breaker, QO, 15A, 1 pole, 120/240 VAC, 10 kA, combo arc fault, pigtail, plug in mount

SQDQO115CAFI QO115CAFI 785901438236
53.48 / EACH
  • Circuit Breaker Type: Combination ARC-fault
  • Country of Origin: Mexico
  • Current: 15 A
  • Depth: 2.91 in, 73.91 mm
  • Height: 120.65 mm, 4.75 in
  • Mounting Type: Plug-in
  • Number of Poles: 1
  • Voltage: 120 V, 120/240 V
  • Warranty Length: 18 mth
  • Width: 0.75 in, 19.05 mm
Square D™ QO™ and QOB Miniature Circuit Breakers, QO115CAFI, come in plug-in mounted version and in a complete range of amperages and interrupting ranges to fit into various QO distribution panels. Equipped with Combination ground and Arc-fault interrupter (Pigtail Neutral). UL listed.
  • Product Description
  • Specifications
Square D™ QO™ and QOB Miniature Circuit Breakers, QO115CAFI, come in plug-in mounted version and in a complete range of amperages and interrupting ranges to fit into various QO distribution panels. Equipped with Combination ground and Arc-fault interrupter (Pigtail Neutral). UL listed.
  • Contractual Warranty
    • Warranty : 18 months
  • Complementary
    • Depth : 2.91 in (73.91 mm)
    • Wire Size : AWG 14...AWG 8 copper || AWG 12...AWG 8 aluminium
    • Interrupt Rating : 10 kA 120/240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
    • Number Of Panel Spaces : 1
    • Height : 4.75 in (120.65 mm)
    • Width : 0.75 in (19.05 mm)
  • Offer Sustainability
    • Green Premium Status : Green Premium product
    • Mercury Free : Yes
    • EU RoHs Directive : Compliant
  • Environment
    • Ambient Rating : 104 °F (40 °C)
    • Certifications : UL Listed || CSA
  • Main
    • Number Of Poles : 1P
    • Connections Terminals : Pigtail neutral
    • Product : Miniature circuit-breaker
    • Circuit Breaker Type : Combination ARC-fault
    • Electrical Connection : Pressure plate
    • Range : QO
    • Mounting Type : Plug-in
    • Current Rating : 15 A
    • Ratings : HACR rated
    • Voltage Rating : 120/240 V AC || 120 V AC
  • Ordering And Shipping Details
    • Returnability : Yes
    • Nbr. Of Units In Pkg. : 1
    • Category : 06303 - QO SINGLE POLE ARC FAULT CIRCUIT BREAKER
    • Country Of Origin : MX
    • Discount Schedule : DE2A
    • GTIN : 00785901438236
