SQUARE D

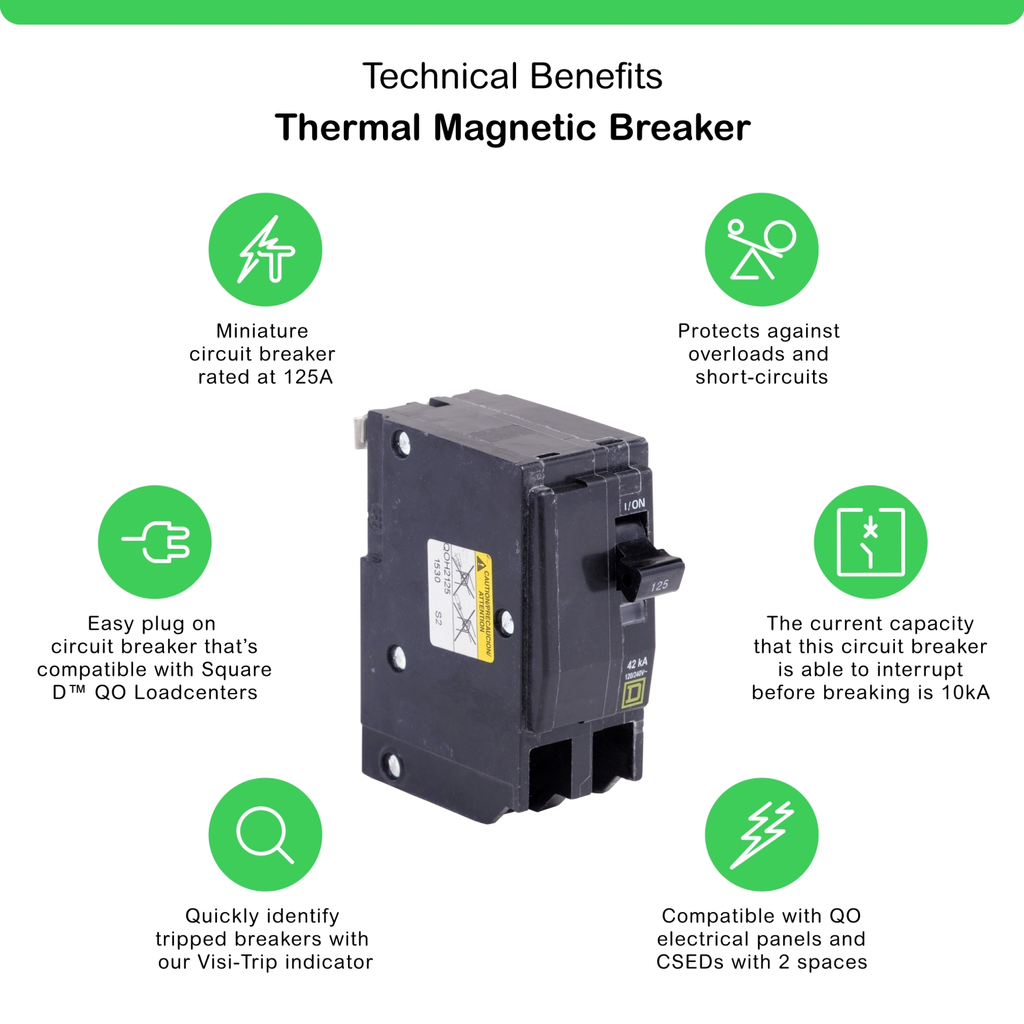

Mini circuit breaker, QO, 125A, 2 pole, 120/240 VAC, 10 kA, plug in mount

BREAKER - 2P 120/240V 125A

SQDQO2125 QO2125 785901031093
142.43 / EACH
  • Certifications: CSA, UL Listed
  • Circuit Breaker Type: Standard
  • Depth: 2.91 in
  • Height: 3.5 in
  • Line Rated Current: 125 A
  • Mounting Type: Plug-In
  • Short Circuit Current: 10 kA
  • Width: 1.5 in
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO standard plug on circuit breaker with common trip is rated as 125 A, 120/240 VAC. This unit provides 10 kA breaking capacity. A full line of factory installed accessories, such as shunt trips, auxiliary switches and alarm switches, is also available QO breakers use a compact 3/4 inch width design for small system footprint. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
  • Product Description
  • Specifications
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO standard plug on circuit breaker with common trip is rated as 125 A, 120/240 VAC. This unit provides 10 kA breaking capacity. A full line of factory installed accessories, such as shunt trips, auxiliary switches and alarm switches, is also available QO breakers use a compact 3/4 inch width design for small system footprint. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
  • Breaking Capacity : 10 kA 120/240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
  • Poles Description : 2P
  • Line Rated Current : 125 A
  • Tightening Torque : 4.6-4.6 N.m
  • Ambient Air Temperature For Operation : 40 °C
  • Maximum Depth : 2.91 in
  • Circuit Breaker Application : HACR rated
  • Range Of Product : QO
  • [Ue] Rated Operational Voltage : 120/240 V AC || 120 V AC
  • Circuit Breaker Type : standard
  • Maximum Height : 3.5 in
  • Maximum Width : 1.5 in
  • Mounting Mode : plug-in
  • Electrical Connection : box lugs
  • Product Certifications : UL Listed || CSA
  • Short-Circuit Current : 10 kA
  • Awg Gauge : AWG 4...AWG 2/0 copper or aluminium
  • Product Or Component Type : miniature circuit-breaker
  • Number Of Spaces Required : 2
