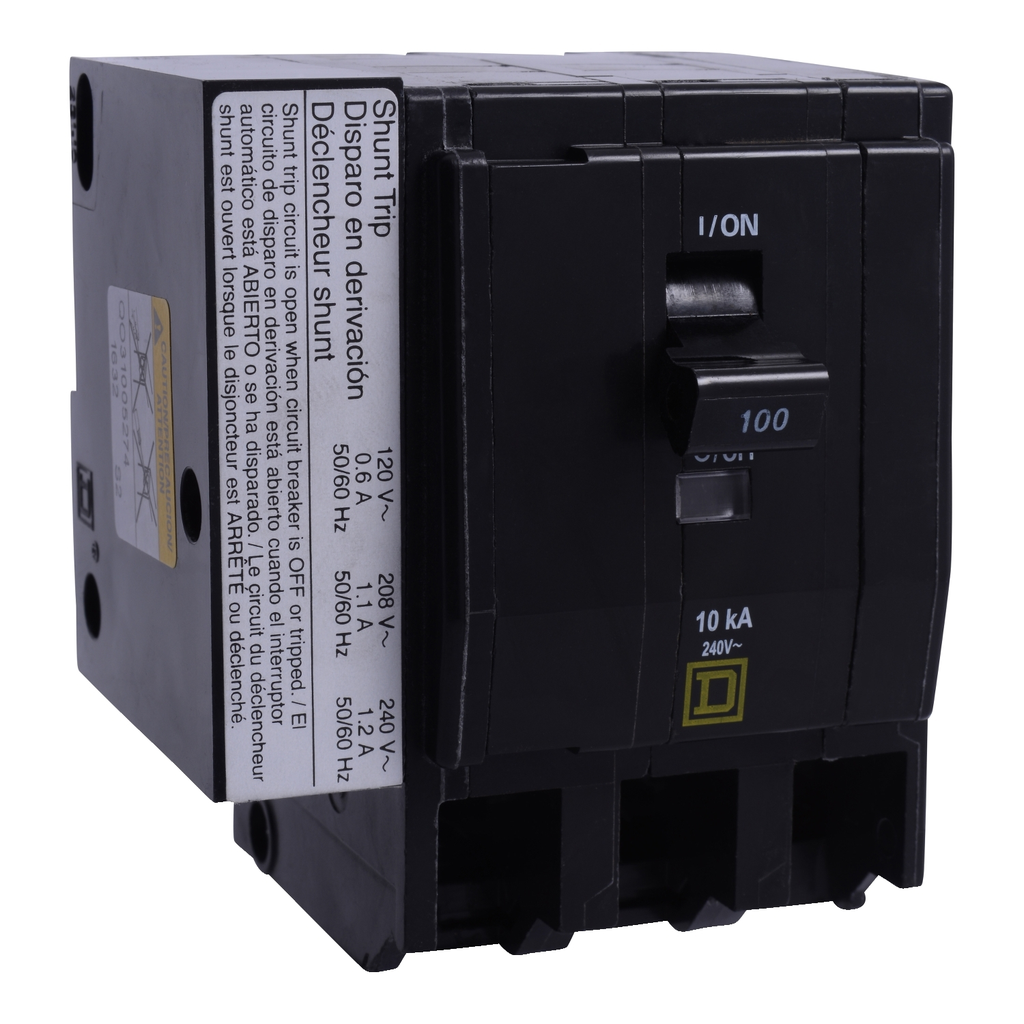

Mini circuit breaker, QO, 100A, 3 pole, 120/240VAC, 10kA, plug in, AC shunt, ring

MINI CIRCUIT BREAKER, QO, 100A

SQDQO31005274 QO31005274 3606486146231
423.38 / EA
http://schema.org/OutOfStock
Mayer-DDS-Mini circuit breaker, QO, 100A, 3 pole, 120/240VAC, 10kA, plug in, AC shunt, ring-1
  • Country of Origin: USA
  • Depth: 74 mm
  • Height: 89 mm
  • Net Weight: 0.617 kg
  • Warranty Length: 18 mth
  • Weight: 0.617 kg
  • Width: 57 mm
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 3 pole QO circuit breaker is rated at 100A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes an AC shunt trip and ring terminals. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
QTY
  • Product Description
  • Features
  • Specifications
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 3 pole QO circuit breaker is rated at 100A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes an AC shunt trip and ring terminals. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL Listed || CSA
    • Ambient Air Temperature For Operation : 40 °C
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Halogen Content Performance : Halogen free product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Take-Back : No
    • Eu Rohs Directive : Compliant
  • Complementary
    • Height : 89 mm
    • Tightening Torque : 5.6-5.6 N.m
    • Number Of Spaces Required : 4
    • Net Weight : 0.617 kg
    • Breaking Capacity : 10 kA 120/240 V AC || 10 kA 240 V AC || 10 kA 120 V AC
    • Awg Gauge : AWG 4...AWG 2/0 copper or aluminium
    • Width : 57 mm
    • Depth : 74 mm
  • Specifications
    • Country of Origin : United States
    • Width : 57 mm
    • Height : 89 mm
    • Weight : 0.617 kg
    • Circuit Breaker Type : standard
    • Range Of Product : QO
    • Accessory / Separate Part Type : shunt trip 120/208/240 V AC
    • Product Or Component Type : miniature circuit-breaker
    • Circuit Breaker Application : HACR rated
    • Mounting Mode : plug-in
    • Poles Description : 3P
    • Electrical Connection : ring tongue
    • Line Rated Current : 100 A
    • [Ue] Rated Operational Voltage : 120/240 V AC || 240 V AC || 120 V AC
