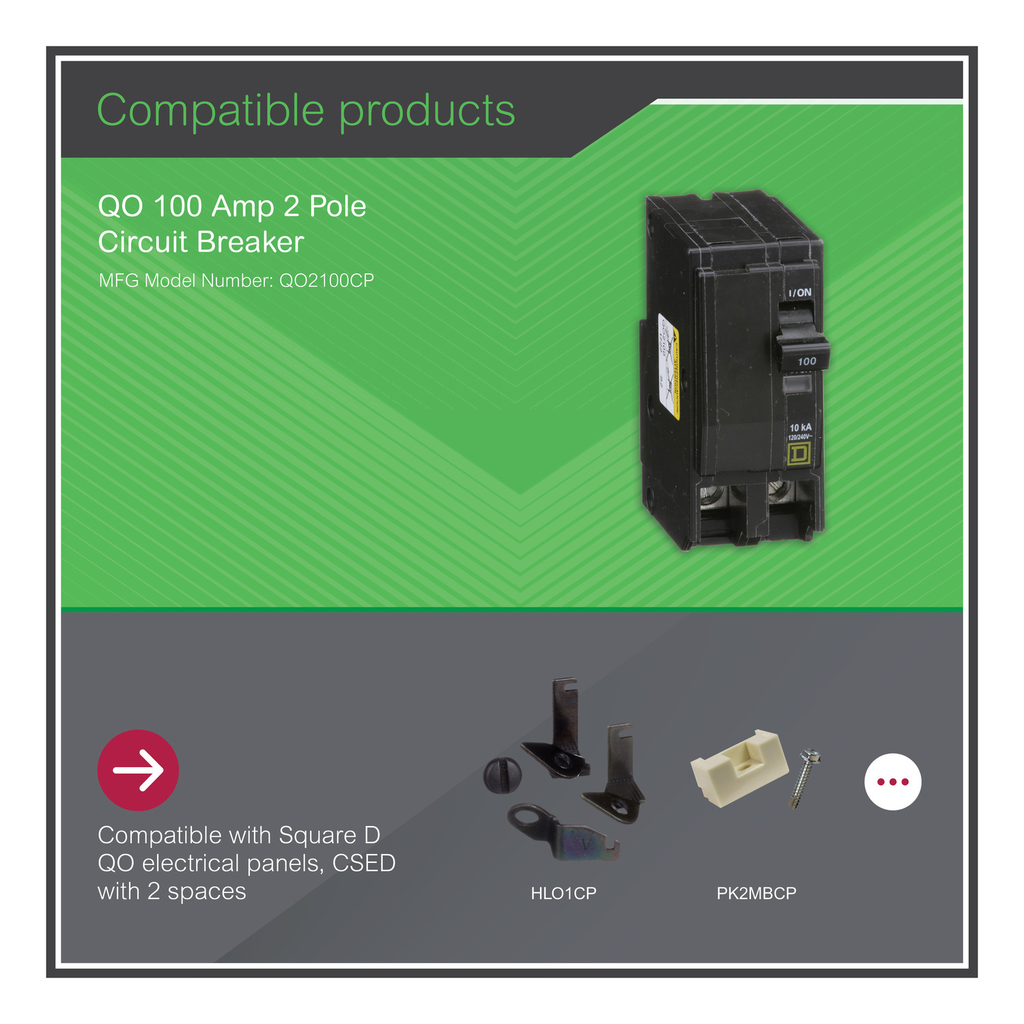

Mini circuit breaker, QO, 100A, 2 pole, 120/240 VAC, 10 kA, plug in mount

Mini circuit breaker, QO, 100A, 2 pole, 120/240 VAC, 10 kA, plug in mount

SQDQO2100 QO2100 785901501305
97.36 / EACH
  • Circuit Breaker Type: Standard
  • Country of Origin: Mexico
  • Current: 100 A
  • Depth: 2.91 in, 73.91 mm
  • Height: 3.5 in, 88.90 mm
  • Mounting Type: Plug-in
  • Number of Poles: 2
  • Voltage: 120 V, 120/240 V
  • Warranty Length: 18 mth
  • Width: 1.5 in, 38.10 mm
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO standard plug on circuit breaker with common trip is rated as 100 A, 120/240 VAC. This unit provides 10 kA breaking capacity. A full line of factory installed accessories, such as shunt trips, auxiliary switches and alarm switches, is also available QO breakers use a compact 3/4 inch width design for small system footprint. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
  • Product Description
  • Specifications
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO standard plug on circuit breaker with common trip is rated as 100 A, 120/240 VAC. This unit provides 10 kA breaking capacity. A full line of factory installed accessories, such as shunt trips, auxiliary switches and alarm switches, is also available QO breakers use a compact 3/4 inch width design for small system footprint. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
  • Contractual Warranty
    • Warranty : 18 months
  • Main
    • Product : Miniature circuit-breaker
    • Mounting Type : Plug-in
    • Number Of Poles : 2P
    • Range : QO
    • Ratings : HACR rated
    • Current Rating : 100 A
    • Voltage Rating : 120/240 V AC || 120 V AC
    • Electrical Connection : Box lugs
    • Circuit Breaker Type : Standard
  • Ordering And Shipping Details
    • Category : 00104 - QO 35-70A 1P;70-125A 2P CB
    • Returnability : Yes
    • GTIN : 00785901501305
    • Country Of Origin : MX
    • Nbr. Of Units In Pkg. : 1
    • Discount Schedule : DE2A
  • Environment
    • Ambient Rating : 104 °F (40 °C)
    • Certifications : UL Listed || CSA
  • Complementary
    • Width : 1.5 in (38.10 mm)
    • Tightening Torque : 40.71 lbf.in (4.6 N.m)
    • Height : 3.5 in (88.90 mm)
    • Depth : 2.91 in (73.91 mm)
    • Wire Size : AWG 4...AWG 2/0 copper or aluminium
    • Number Of Panel Spaces : 2
    • Interrupt Rating : 10 kA 120/240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
  • Offer Sustainability
    • Halogen Content Performance : Halogen free product
    • Mercury Free : Yes
    • REACh Free Of SVHC : Yes
    • EU RoHs Directive : Compliant
    • Toxic Heavy Metal Free : Yes
    • Green Premium Status : Green Premium product
