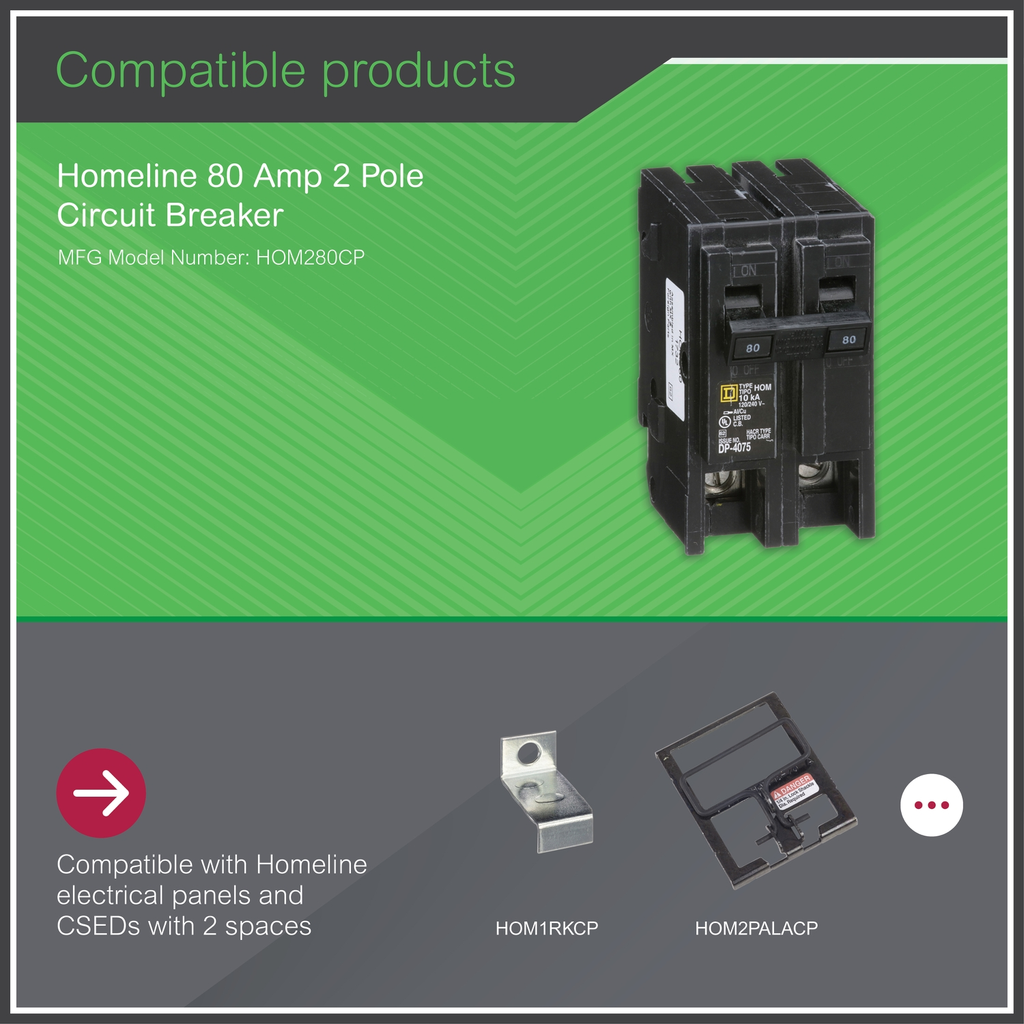

What are Homeline Breakers and what are the common applications they are used in? Homeline one- and two-pole plug-on thermal-magnetic circuit breakers provide overcurrent protection and switching on residential and light commercial electrical systems. They are designed for use in Homeline load centers and combination service entrance devices (CSEDs) and are commonly used to protect lighting, receptacle, appliance, HVAC, and other branch circuits in residential applications. What are the standard features and characteristics of Homeline breakers? Homeline circuit breakers feature thermal-magnetic protection against overloads and short circuits and are designed for fast plug-on installation. The box lugs will accept a wire range of 4 AWG to 2/0 AWG copper or aluminum wire. They are UL listed as HACR Type. What are the additional benefits of Homeline breakers? This is a two pole 80A standard pigtail breaker. This is UL Listed for compliance with applicable safety standards.

• Features
• Homeline™ Circuit Breakers are apart of the Square D™ making them compatible with Homeline™ electrical panels and CSEDs
• Designed to protect against equipment overloads and short-circuits
• For residential and commercial use
• Product characteristics conformity is certified by the Underwriters Laboratories (UL)
• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Line Rated Current : 80 A
• Ue Rated Operational Voltage : 120/240 V AC
• Important Information Attributes
• Persona Type Ids : EU, EUA, LC, OM, SC
• Persona Type Names : End User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
• Carbon Footprint Of The Distribution Phase A4 : 0.0981813261, 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.0802007399
• Carbon Footprint Of The Installation Phase A5 : 0.0003902908, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 2 kg CO2 eq., 1.6078978779
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 22 kg CO2 eq., 21.872
• Local Data Status : Publishable
• Local Publishable Date : 2026-09-16
• Return Indicator : Y
• Device Type : LV equipment - Low voltage circuit breaker
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Use Carbon Footprint : 21.872
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : Outside of Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 2534
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : No
• China Rohs Label : 1
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : RESIDENTIAL
• Market Segmentation : Residential
• Product Kit Identifier : N
• Awg Gauge : 1 x 4 AWG...2/0 AWG ( aluminium/copper )
• Circuit Breaker Application : HACR rated
• Circuit Breaker Type : standard
• Electrical Connection : screw clamp terminals
• Energy Efficiency Optimized : False
• Mounting Mode : plug-in
• Number Of Poles : 2P
• Number Of Spaces Required : 2
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : miniature circuit-breaker
• Range Of Product : Homeline
• Returnability : Yes
• Software Version : EIME v5.9.1
• Sustainable Packaging : Yes
• Tightening Torque : 4.8-4.8 N.m 4-50 mm² (4 AWG...2/0 kcmil)
• Total Lifecycle Carbon Footprint : 24 kg CO2 eq.
• Database Version : 2016-11
• Data Source : extrapolated product
• Height Nominal : 3.13 in
• Width Nominal : 2 in
• Certificate Agency : UL Listed
• Nbr. Of Units In Pkg. : 1
• Customs Code : 8536200040
• Short Circuit Current : 10 kA
• Warranty In Months : 18
• Functional Unit Description : Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120/240 VAC and rated current 20A In. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1 Pole;& 10- Rated breaking capacity 10 kA;
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Reference Lifetime In Y : 20
• Energy Consumption On Product Lifetime In Kwh : 30.222
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 23.6586702347
• Ambient Air Temperature For Operation : 40 °C
• Environmental Disclosure : ENVPEP1308001EN
• Eu Rohs Directive : Compliant
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1308001EN
• Pep Verification Date : 2021-12-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : miniature circuit-breaker
• Range Of Product : Homeline
• ETIM
• ETIM 8 : EC000042
• ETIM 9 : EC000042
• ETIM 10 : EC000042
• Contractual Warranty Attributes
• Warranty : Lifetime
• Specifications
• Country of Origin : Mexico
• Weight : 385.554 g
• Depth : 2.98 in
