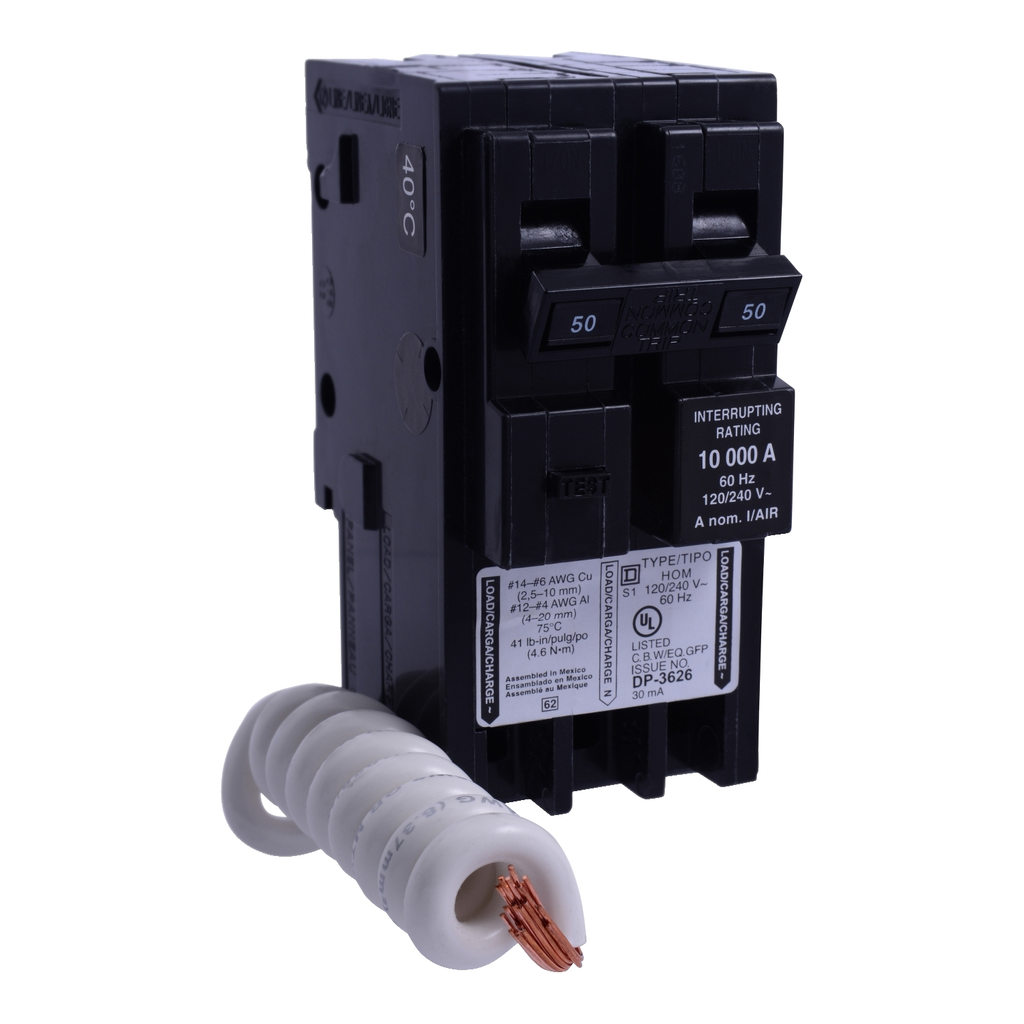

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 50A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. This Homeline circuit breaker has Class B equipment protection ground fault protection. This Homeline circuit breakers has 30mA equipment ground fault protection. The electrical connection is a clamp terminal that will accept 1 wire. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. HOM Homeline miniature circuit breakers are UL Listed.

• Circuit Breaker Type
• ground fault protecting class B 30 mA
• Prop 65
• WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• Persona Type Names
• End User
• Consumer
• Contractor
• Electrician
• Persona Type Ids
• EU
• EUA
• LC
• SC
• Tightening Torque
• 4.6-4.6 N.m 2.5-10 mm² (AWG 16...AWG 14)
• 4.6-4.6 N.m 4-20 mm² (AWG 12...AWG 4)
• AWG Gauge
• 1 x AWG 8...AWG 2 ( aluminium/copper )
• UE Rated Operational Voltage
• 120/240 V AC

• Important Information Attributes
• B2B Bullet Point 1 : Homeline™ GFCI MCB are designed to protect against irregular electrical current
• B2B Bullet Point 2 : Compatible with Homeline™ electrical panel and CSEDs
• B2B Bullet Point 3 : Protects against overload, short curcuits, and ground faults with a current greater than 6mA
• B2B Bullet Point 4 : Conforms to the electrical characteristics stated in the data sheet per the Underwriters Laboratories (UL)
• B2B Bullet Point 5 : This product is TAA compliant.
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-18
• Device Type : LV equipment - Low voltage circuit breaker
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2212005
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 2532
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : RESIDENTIAL
• Market Segmentation : Residential
• H And D Domain : Safety
• H And D Subrange : RESI
• H And D Enrichment Assignment : yes
• H And D Enrichment Function : EPD
• H And D Enrichment Class 3 : Earth leakage protection devices
• H And D Enrichment Class 4 : EPD
• Energy Efficiency Optimized : False
• Halogen Free Status : Halogen free product
• Number Of Spaces Required : 2
• Package Weight Lbs : 548.847 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : miniature circuit-breaker
• Range Of Product : Homeline
• Returnability : No
• Sustainable Packaging : No
• Pep Code : ENVPEP2212005
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : miniature circuit-breaker
• Range Of Product : Homeline
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=398117&lang=en-us
• Take Back : No
• Halogene Performance : Halogen free product
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Circularity Profile : ENVEOLI2212005
• Environmental Disclosure : ENVPEP2212005
• EU ROHS Directive : Compliant with Exemptions
• Halogen Content Performance : Halogen free product
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2212005
• Contractual Warranty Attributes
• Warranty Period : Lifetime
• Warranty : Lifetime
• Specifications
• Country of Origin : Mexico
• Compliance : TAA
