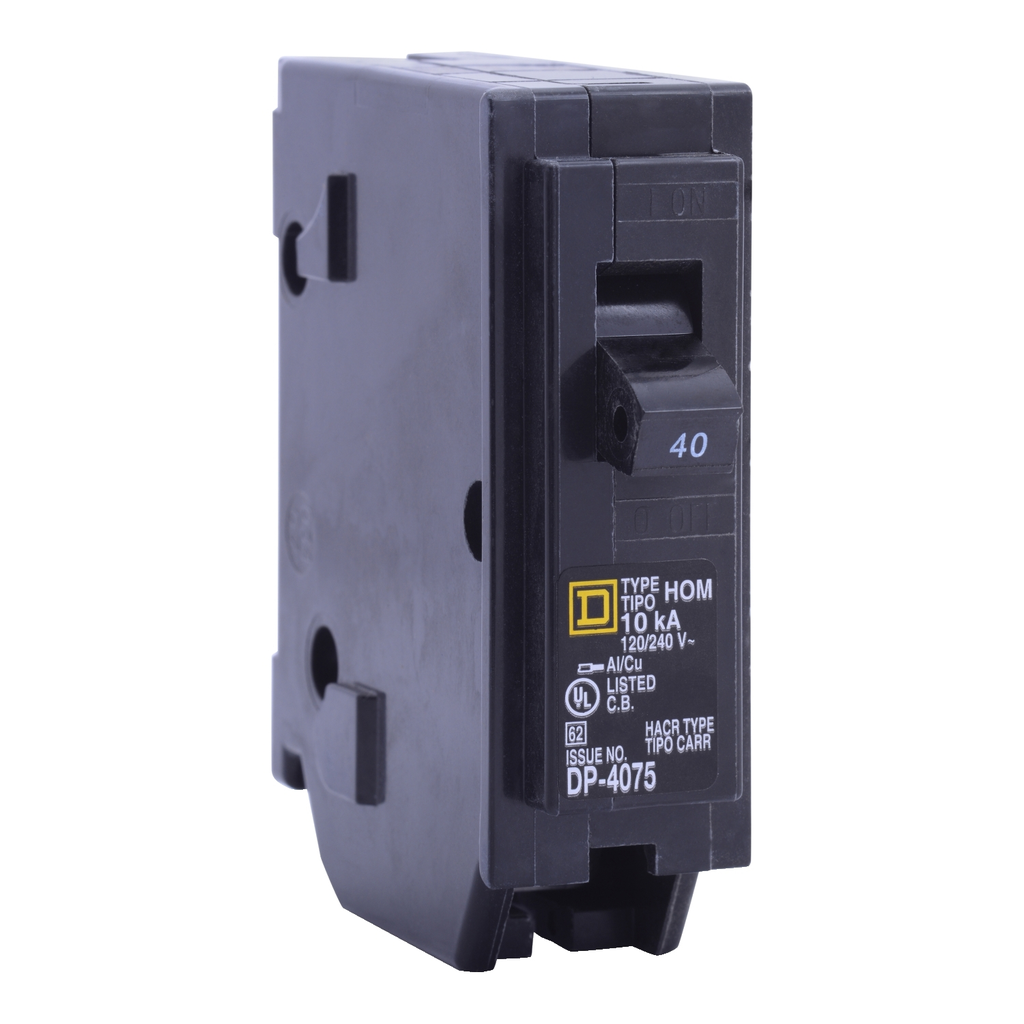

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides

• Carbon Footprint Of The Installation Phase A5
• 0.0001561157
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0 kg CO2 eq.
• 0.0320801712
• Ue Rated Operational Voltage
• 120/240 V AC
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 0.6 kg CO2 eq.
• 0.6431566489
• Accessories
• HOM1HT
• HOMTHT
• QO1LO
• HOM2HBD
• HOM1PA
• HOM2PALA
• QOM1PA
• Persona Type Names
• End User
• Contractor
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 22 kg CO2 eq.
• 21.872
• Persona Type Ids
• EU
• LC
• Carbon Footprint Of The Distribution Phase A4
• 0.0392723776
• 0 kg CO2 eq.
• Tightening Torque
• 4.6-4.6 N.m (AWG 8...AWG 2)
• AWG Gauge
• 1 x AWG 8...AWG 2 ( aluminium/copper )

• Conformance Attributes
• Product Certifications : UL Listed
• Complementary Attributes
• Line Rated Current : 50 A
• Important Information Attributes
• Country Id : US
• B2B Bullet Point 1 : Miniature circuit breaker rated at 50A
• B2B Bullet Point 2 : Product characteristics conformity is certified by the Underwriters Laboratories (UL)
• B2B Bullet Point 3 : The current capacity that this circuit breaker is able to interrupt before breaking is 10kA
• B2B Bullet Point 4 : Product characteristics conformity is certified by the Underwriters Laboratories (UL)
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-18
• Html Descr : MINIATURE CIRCUIT BREAKERCurrent Rating : 50 AVoltage Rating : 120 V ACNumber of Poles : 1PShort Circuit Current Rating : 10 kACircuit Breaker Type : Standard
• Manufacturer : Schneider Electric
• Device Type : LV equipment - Low voltage circuit breaker
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Manufacturing Carbon Footprint : 0.6431566489
• Distribution Carbon Footprint : 0.0392723776
• Installation Carbon Footprint : 0.0001561157
• Use Carbon Footprint : 21.872
• End Of Life Carbon Footprint : 0.0320801712
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 2534
• ROHS Eur Full Compliance Status : Compliant
• ROHS Eur Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• China ROHS Label : 1
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : A - SELECTED - PCE ONLY (Migration)
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : RESIDENTIAL
• Market Segmentation : Residential
• H And D Domain : Safety
• H And D Subrange : RESI
• H And D Enrichment Assignment : no
• H And D Enrichment Function : MCB
• H And D Enrichment Class 3 : Circuit Breakers
• H And D Enrichment Class 4 : MCB UL 1P
• Circuit Breaker Application : HACR rated
• Circuit Breaker Type : standard
• Electrical Connection : box lugs
• Energy Efficiency Optimized : False
• Mounting Mode : plug-in
• Number Of Spaces Required : 1
• Package Weight Lbs : 154.221 g
• Poles Description : 1P
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : miniature circuit-breaker
• Range Of Product : Homeline
• Returnability : Yes
• Short Circuit Current : 10 kA
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 23 kg CO2 eq.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 22.5866653135
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : miniature circuit-breaker
• Range Of Product : Homeline
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=398049&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 22.5866653135
• Ambient Air Temperature For Operation : 40 °C
• Environmental Disclosure : ENVPEP1308001
• Eu Rohs Directive : Compliant
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : Lifetime
• Warranty : Lifetime
• Specifications
• Country of Origin : Mexico
• Height : 3.13 in
• Width : 1 in
• Depth : 2.98 in
