SQUARE D

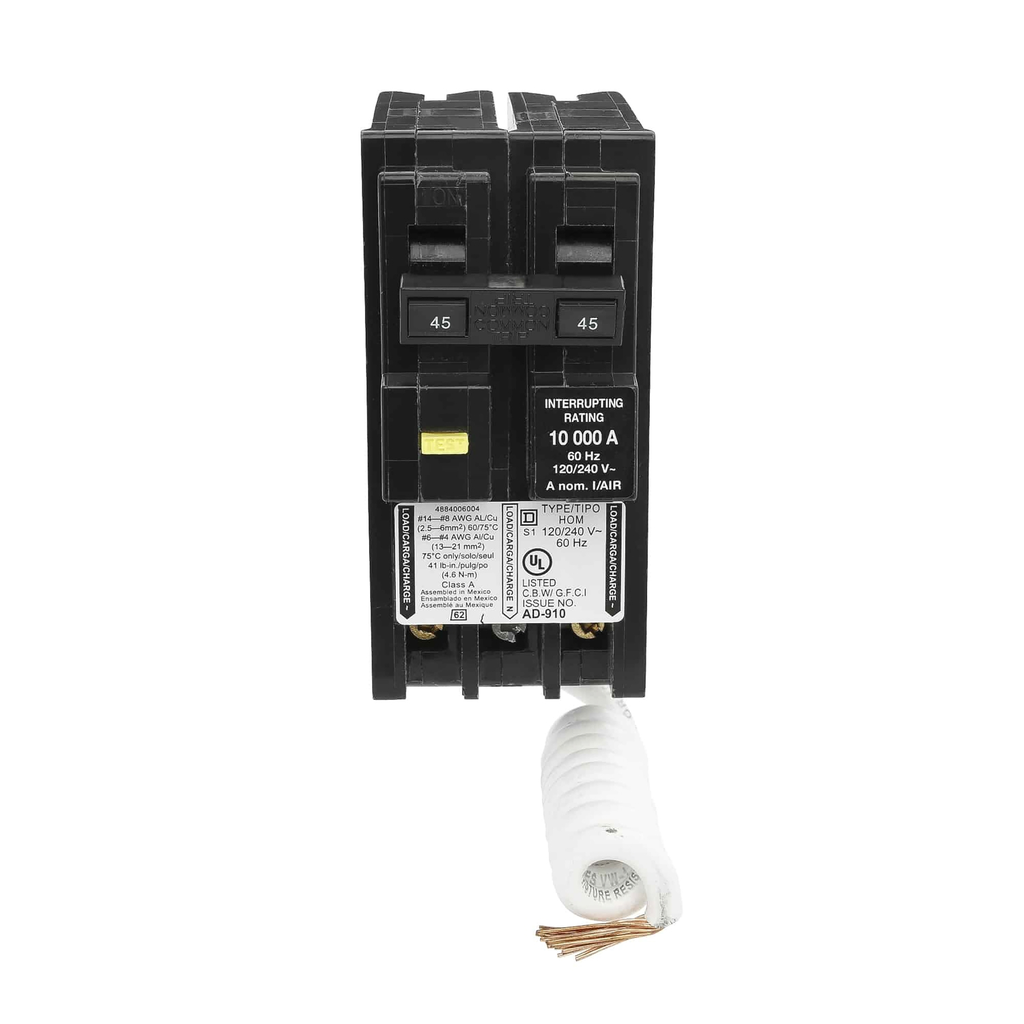

Mini circuit breaker, Homeline, 45A, 2 pole, 120/240VAC, 10kA AIR, ground fault class A, plug in, UL

MINI CIRCUIT BREAKER, HOMELINE

SQDHOM245GFIC HOM245GFIC 785901508267
198.33 / EA
http://schema.org/OutOfStock
Mini circuit breaker, Homeline, 45A, 2 pole, 120/240VAC, 10kA AIR, ground fault class A, plug in, UL
  • Depth: 2.98 in
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 45A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. This Homeline ground fault circuit breakers provide overload and short circuit protection, combined with Class A ground fault protection. Class A denotes a ground fault circuit interrupter that will trip when a fault current to ground is 6 milliamperes or more. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. HOM Homeline miniature circuit breakers are UL Listed. Circuit breaker is consumer packaged.
QTY
  • Product Description
  • Features
  • Specifications
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 45A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. This Homeline ground fault circuit breakers provide overload and short circuit protection, combined with Class A ground fault protection. Class A denotes a ground fault circuit interrupter that will trip when a fault current to ground is 6 milliamperes or more. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. HOM Homeline miniature circuit breakers are UL Listed. Circuit breaker is consumer packaged.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Conformance Attributes
    • Product Certifications : UL Listed
  • Complementary Attributes
    • Line Rated Current : 45 A
    • Ue Rated Operational Voltage : 120/240 V AC
  • Important Information Attributes
    • Carbon Footprint Of The Distribution Phase A4 : 0.022210748384616195, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.9 kg CO2 eq., 0.923773441680772
    • Carbon Footprint Of The Installation Phase A5 : 0.11032511860375463, 0.1 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 6 kg CO2 eq., 5.604640135860135
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 486 kg CO2 eq., 485.6578321951684
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Global Commercial Status : Commercialised
    • Return Indicator : Y
    • Stocking Flag : N
    • Stock Policy : 2
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : yes
    • H And D Enrichment Function : GFCI
    • H And D Enrichment Class 3 : Earth leakage protection devices
    • H And D Enrichment Class 4 : GFCI
    • Device Type : LV equipment - Low voltage circuit breaker
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Average Life Duration : 15 year(s)
    • Legacy Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : Outside of Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2510002EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 2532
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : No
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Product Kit Identifier : N
    • Awg Gauge : 1 x AWG 12...AWG 4 ( aluminium )
    • Circuit Breaker Application : HACR rated
    • Circuit Breaker Type : ground fault protecting class A 6 mA
    • Electrical Connection : screw clamp terminals
    • Energy Efficiency Optimized : False
    • Mounting Mode : plug-in
    • Number Of Spaces Required : 2
    • Poles Description : 2P
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : miniature circuit-breaker
    • Range Of Product : Homeline
    • Returnability : Yes
    • Short Circuit Current : 10 kA
    • Software Version : v6.2.5-6
    • Sustainable Packaging : No
    • Tightening Torque : 4.6-4.6 N.m 2.5-10 mm² (AWG 16...AWG 14)
    • Total Lifecycle Carbon Footprint : 492 kg CO2 eq.
    • Type Of Packing : clam packaging
    • Warranty In Months : 18
    • Pep Code : ENVPEP2510002EN
    • Database Version : 2024-01
    • Pep Verification Date : 2025-10-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icn, and the tripping curve Cd if applicable, and, if applicable, the specific specifications, in the Household/Commercial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
    • Functional Unit Quantity : 1
    • Functional Unit Unit : unit
    • Product Weight In G2 : 560
    • Reference Lifetime In Y2 : 20
    • Energy Consumption On Product Lifetime In Kwh : 1068.72
    • Energy Model Manufacturing A1 A3 2 : Electricity Mix; Low voltage; 2020; Mexico, MX
    • Energy Model Installation A5 2 : No energy used
    • Energy Model Use B6 2 : Electricity Mix; Low voltage; 2020; United States, US
    • Energy Model End Of Life C1 C4 2 : Global, European and French datasets are used.
    • Recyclability Potential In 2 : 41
    • Offer Owner Code : 190788
    • Height Nominal : 4.23 in
    • Width Nominal : 2 in
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • Mercury Free : Yes
    • Carbon Footprint : 492.3187816396977
    • Ambient Air Temperature For Operation : 40 °C
    • Circularity Profile : ENVEOLI2510002EN
    • Environmental Disclosure : ENVPEP2510002EN
    • Eu Rohs Directive : Compliant By Exemption
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2510002EN
    • Pep Verification Date : 2025-10-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : miniature circuit-breaker
    • Range Of Product : Homeline
  • Specifications
    • Depth : 2.98 in
