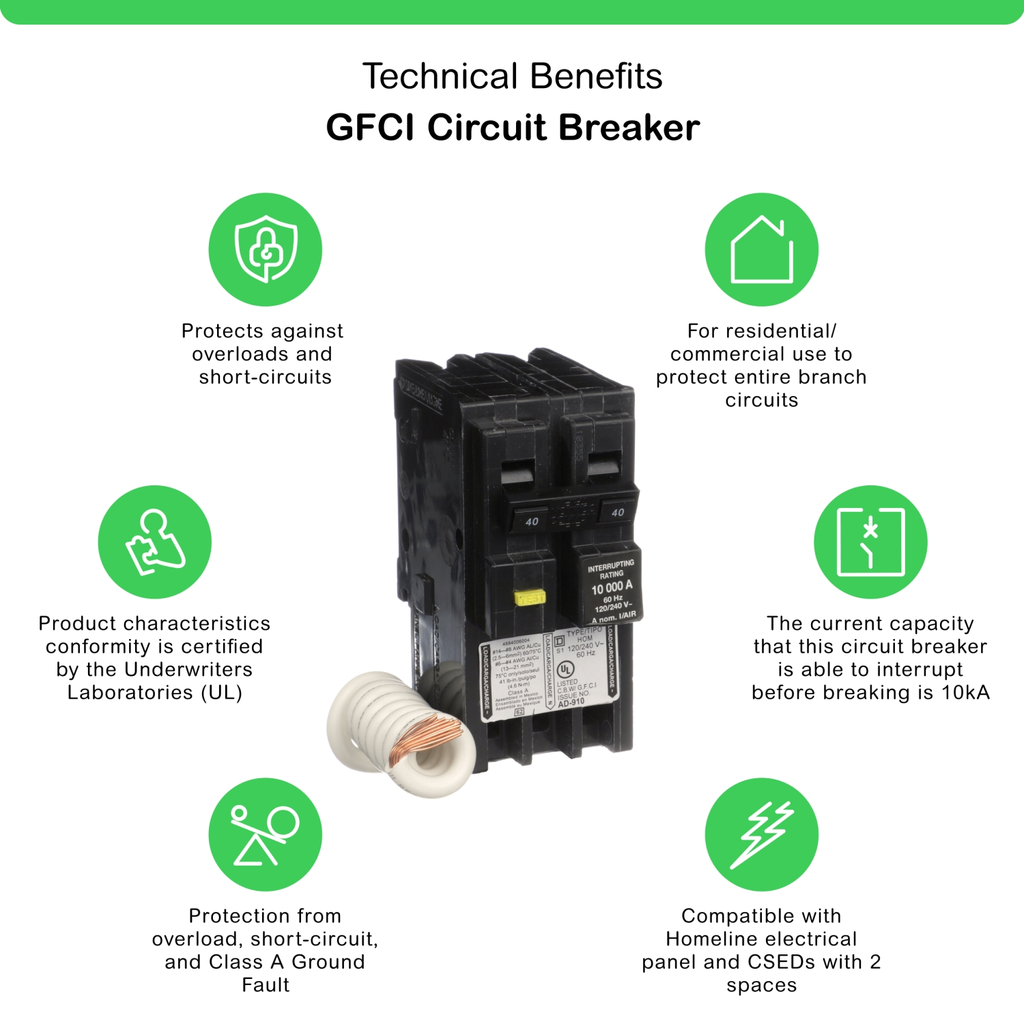

Mini circuit breaker, Homeline, 40A, 2 pole, 120/240 VAC, 10 kA AIR, ground fault class A, plug in, UL [TAA]

MINIATURE CIRCUIT BREAKER 120/

SQDHOM240GFIC HOM240GFIC 785901219293
193.42 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Mini circuit breaker, Homeline, 40A, 2 pole, 120/240 VAC, 10 kA AIR, ground fault class A, plug in, UL [TAA]-2
  • Country of Origin: USA
  • Depth: 2.98 in
  • Height: 3.13 in
  • Short Circuit Current Rating: 10 kA
  • Warranty Length: 18 mth
  • Width: 2 in
Square D® Homeline® Miniature Circuit Breakers are engineered and designed for fast installation and superior circuit protection. Square D® Homeline® Circuit Breakers are designed to plug into Homeline® Load Centers® to provide circuit protection. HOM-GFI circuit breakers provide overload and short circuit protection, combined with Class A ground fault protection . This products is certified to adhere to the specifications listed in the data sheet by UL
QTY
  • Product Description
  • Features
  • Specifications
Square D® Homeline® Miniature Circuit Breakers are engineered and designed for fast installation and superior circuit protection. Square D® Homeline® Circuit Breakers are designed to plug into Homeline® Load Centers® to provide circuit protection. HOM-GFI circuit breakers provide overload and short circuit protection, combined with Class A ground fault protection . This products is certified to adhere to the specifications listed in the data sheet by UL
  • Prop 65
    • "WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
  • Environment
    • Ambient Air Temperature For Operation : 40 °C
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1406034
    • Halogen Content Performance : Halogen free product
    • California Proposition 65 : "WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Circularity Profile : ENVEOLI1406034
    • Take-Back : No
    • Global Warming ; Total Life Cycle​ : 42 kg CO2 eq.
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 42.4223331829
  • Complementary
    • Height : 3.13 in
    • Tightening Torque : 4.6-4.6 N.m 2.5-10 mm² (AWG 16...AWG 14) || 4.6-4.6 N.m 4-20 mm² (AWG 12...AWG 4)
    • Width : 2 in
    • Depth : 2.98 in
  • Specifications
    • Country of Origin : United States
    • Width : 2 in
    • Height : 3.13 in
    • Product Certifications : UL Listed
    • Circuit Breaker Type : ground fault protecting class A 6 mA
    • Range Of Product : Homeline
    • Number Of Spaces Required : 2
    • Product Or Component Type : miniature circuit-breaker
    • Type Of Packing : clam packaging
    • Circuit Breaker Application : HACR rated
    • Mounting Mode : plug-in
    • Short-Circuit Current : 10 kA
    • Poles Description : 2P
    • Electrical Connection : screw clamp terminals
    • Line Rated Current : 40 A
    • [Ue] Rated Operational Voltage : 120/240 V AC
    • Awg Gauge : 1 x AWG 12...AWG 4 ( aluminium ) || 1 x AWG 14...AWG 6 ( copper )
