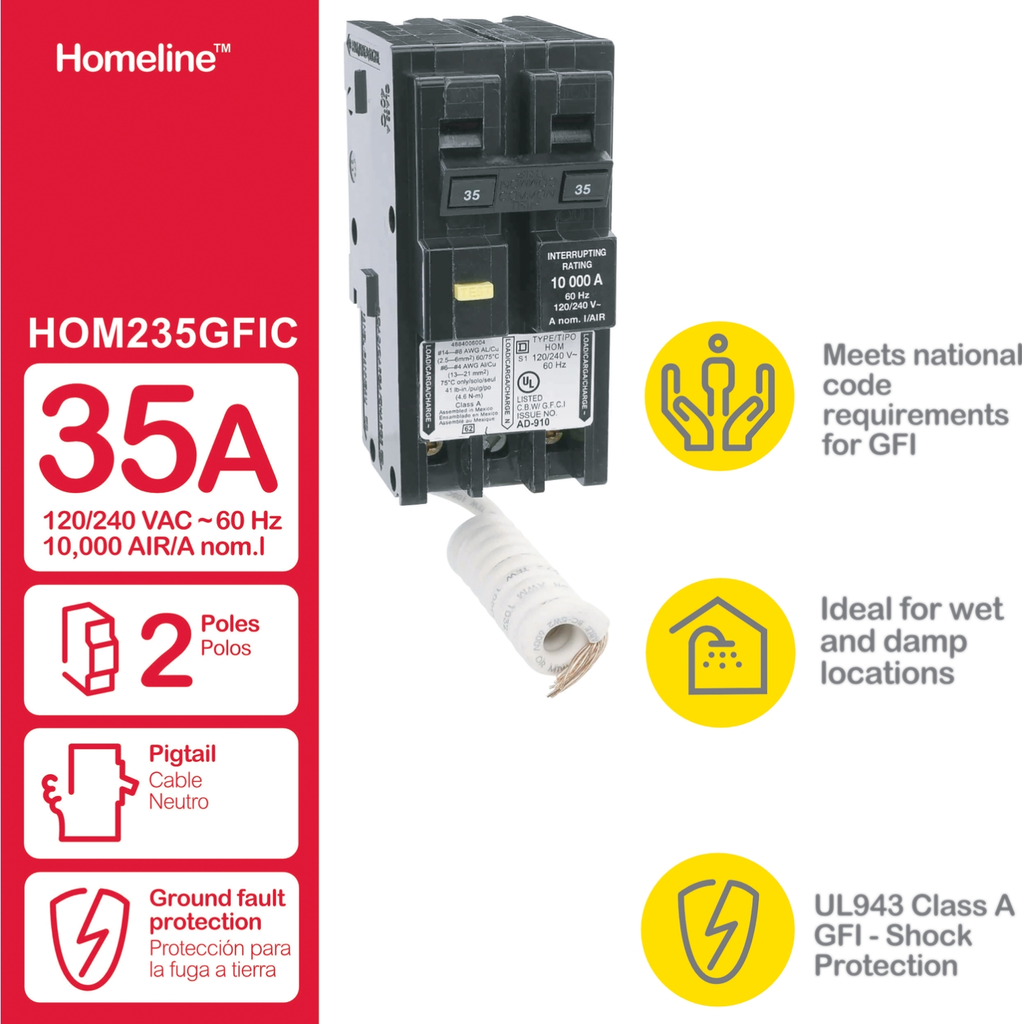

Mini circuit breaker, Homeline, 35A, 2 pole, 120/240VAC, 10kA AIR, ground fault class A, plug in, UL [TAA]

BREAKER - 2P 120/240V 35A

SQDHOM235GFI HOM235GFI 785901508205
153.78 / EA
http://schema.org/OutOfStock

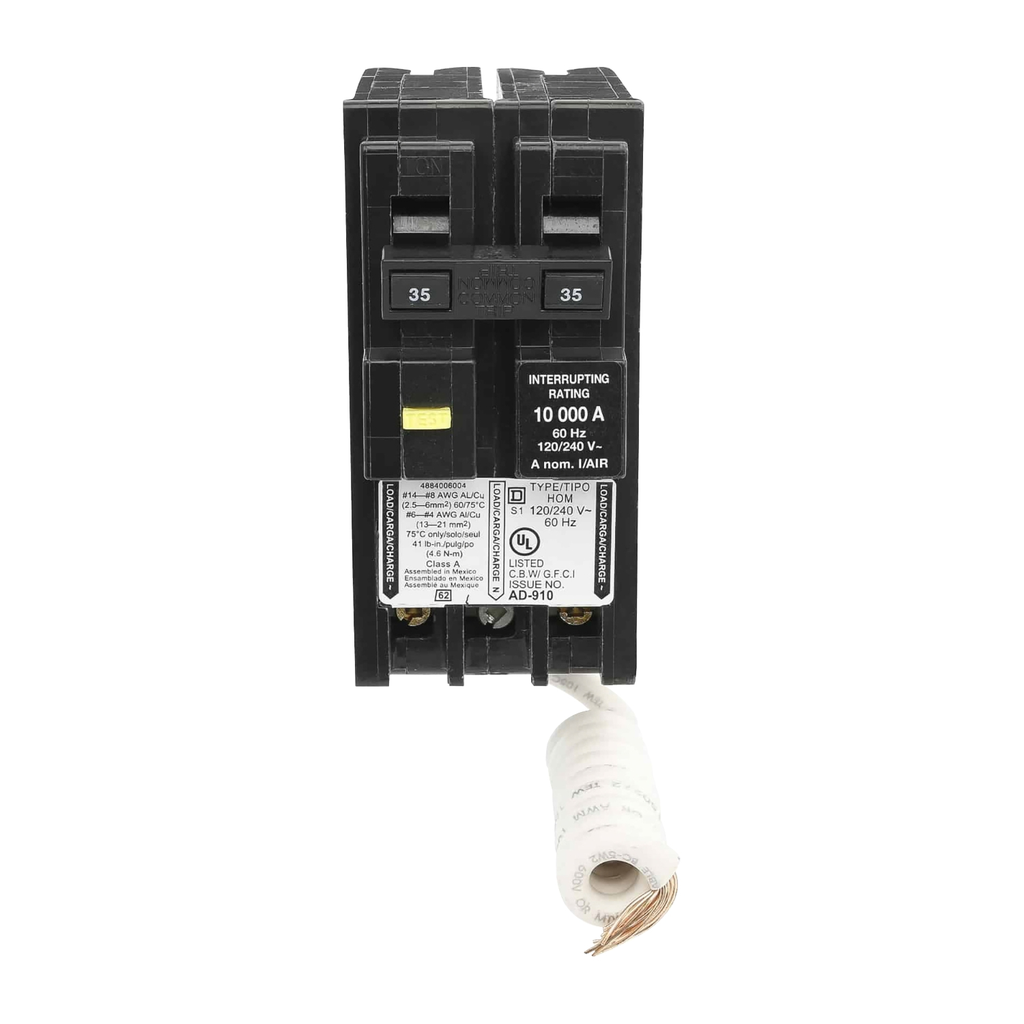

Mayer-DDS-Mini circuit breaker, Homeline, 35A, 2 pole, 120/240VAC, 10kA AIR, ground fault class A, plug in, UL [TAA]-2
  • Depth: 2.98 in
  • Warranty Length: 18 mth
  • Weight: 544.311 g
What are Homeline Breakers and what are the common applications they are used in? Homeline one- and two-pole plug-on thermal-magnetic circuit breakers provide overcurrent protection and switching on residential and light commercial electrical systems. They are designed for use in Homeline load centers and combination service entrance devices (CSEDs) and are commonly used to protect lighting, receptacle, appliance, HVAC, and other branch circuits in residential applications. What are the standard features and characteristics of Homeline breakers? Ground Fault Circuit Interrupter (GFI) breakers provide overload and short-circuit protection. It is detecting ground faults to help protect people from electrical shock in areas where enhanced personnel protection is required. They are UL listed as HACR Type. What are the additional benefits of Homeline breakers? This is a two pole 35A ground fault pigtail breaker. This is UL Listed for compliance with applicable safety standards.
QTY
  • Product Description
  • Features
  • Specifications
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 35A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. This Homeline ground fault circuit breakers provide overload and short circuit protection, combined with Class A ground fault protection. Class A denotes a ground fault circuit interrupter that will trip when a fault current to ground is 6 milliamperes or more. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. HOM Homeline miniature circuit breakers are UL Listed.
  • Features
    • Homeline MCBs provide value through their ease in installation, reliability, and superior circuit protection
    • Designed to protect against equipment overloads and short-circuits
    • Easy plug on design with Homeline Loadcenters
    • Commercially package and ready to be sold
    • This product is TAA compliant.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Line Rated Current : 35 A
    • Ue Rated Operational Voltage : 120/240 V AC
  • Important Information Attributes
    • Persona Type Ids : EU, EUA, LC, SC
    • Persona Type Names : End User, Consumer, Contractor, Electrician
    • Carbon Footprint Of The Distribution Phase A4 : 0.021588490471390758, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.9 kg CO2 eq., 0.8978929389548262
    • Carbon Footprint Of The Installation Phase A5 : 0.10723424220058624, 0.1 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 5 kg CO2 eq., 5.447620137482439
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 486 kg CO2 eq., 485.6578321951684
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-09-04
    • Return Indicator : Y
    • Device Type : LV equipment - Low voltage circuit breaker
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Average Life Duration : 15 year(s)
    • Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : Outside of Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2510002EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 2532
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : No
    • With Recycled Cardboard : No
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • Product Kit Identifier : N
    • Awg Gauge : 1 x 12 AWG...4 AWG ( aluminium )
    • Circuit Breaker Application : HACR rated
    • Circuit Breaker Type : ground fault protecting class A 6 mA
    • Electrical Connection : screw clamp terminals
    • Energy Efficiency Optimized : False
    • Mounting Mode : plug-in
    • Number Of Poles : 2P
    • Number Of Spaces Required : 2
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : miniature circuit-breaker
    • Range Of Product : Homeline
    • Returnability : Yes
    • Software Version : v6.2.5-6
    • Sustainable Packaging : No
    • Tightening Torque : 4.6-4.6 N.m 2.5-10 mm² (16 AWG...14 AWG)
    • Total Lifecycle Carbon Footprint : 492 kg CO2 eq.
    • Connections Terminals : pigtail neutral
    • Database Version : 2024-01
    • Data Source : extrapolated product
    • Height Nominal : 4.23 in
    • Width Nominal : 2 in
    • Certificate Agency : UL Listed
    • Nbr. Of Units In Pkg. : 1
    • Customs Code : 8536200040
    • Short Circuit Current : 10 kA
    • Warranty In Months : 18
    • Functional Unit Description : Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icn, and the tripping curve Cd if applicable, and, if applicable, the specific specifications, in the Household/Commercial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
    • Functional Unit Quantity : 1
    • Functional Unit Unit : unit
    • Reference Lifetime In Y : 20
    • Energy Consumption On Product Lifetime In Kwh : 1068.72
    • Recyclability Potential In % : 41
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • Mercury Free : Yes
    • Carbon Footprint : 492.1321680042777
    • Ambient Air Temperature For Operation : 40 °C
    • Circularity Profile : ENVEOLI2510002EN
    • Environmental Disclosure : ENVPEP2510002EN
    • Eu Rohs Directive : Compliant By Exemption
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2510002EN
    • Pep Verification Date : 2025-10-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : miniature circuit-breaker
    • Range Of Product : Homeline
  • ETIM
    • ETIM 8 : EC000905
    • ETIM 9 : EC000905
    • ETIM 10 : EC000905
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
    • Compliance : TAA Compliant
    • Weight : 544.311 g
    • Depth : 2.98 in
