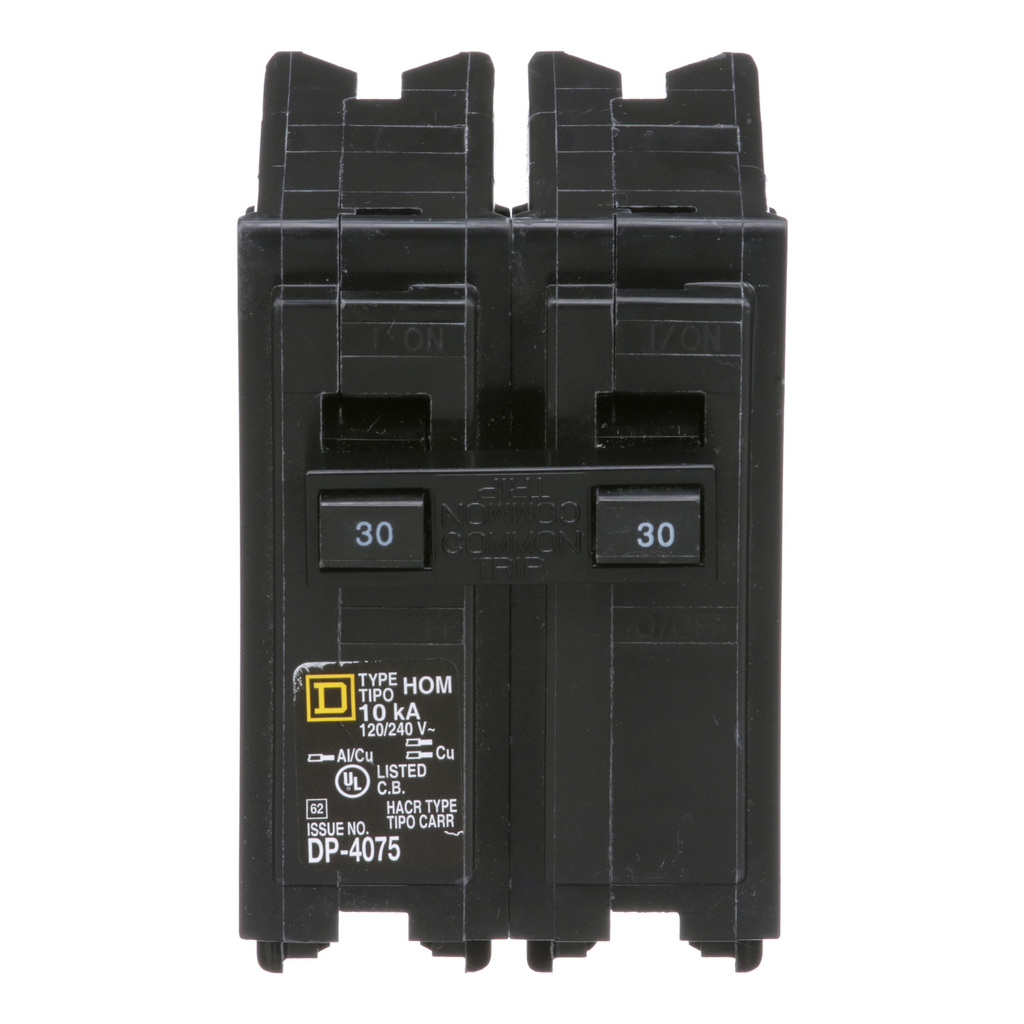

Mini circuit breaker, Homeline, 30A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, high amp lug, UL

Mini circuit breaker, Homeline, 30A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, high amp lug, UL

SQDHOM2305219 HOM2305219 785901304272
25.71 / EACH
http://schema.org/OutOfStock
  • Country of Origin: USA
  • Short Circuit Current Rating: 10 kA
  • Warranty Length: 18 mth
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 30A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a high amperage box lug that will accept 1 wire. The clamp terminal will accept a wire range of 8 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.
QTY
  • Product Description
  • Specifications
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 30A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a high amperage box lug that will accept 1 wire. The clamp terminal will accept a wire range of 8 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.
  • Environment
    • Ambient Air Temperature For Operation : 40 °C
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1308001
    • Toxic Heavy Metal Free : Yes
    • China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Circularity Profile : N/A
    • Take-Back : No
    • Global Warming ; Total Life Cycle​ : 23 kg CO2 eq.
    • Eu Rohs Directive : Compliant
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 23.3854151686
  • Complementary
    • Tightening Torque : 4.0-4.0 N.m 2.5-10 mm² (AWG 16...AWG 14) || 4.0-4.0 N.m 4-20 mm² (AWG 12...AWG 4)
  • Specifications
    • Country of Origin : United States
    • Product Certifications : UL Listed
    • Circuit Breaker Type : standard
    • Range Of Product : Homeline
    • Number Of Spaces Required : 2
    • Product Or Component Type : miniature circuit-breaker
    • Circuit Breaker Application : HACR rated
    • Mounting Mode : plug-in
    • Short-Circuit Current : 10 kA
    • Poles Description : 2P
    • Electrical Connection : box lugs
    • Line Rated Current : 30 A
    • [Ue] Rated Operational Voltage : 120/240 V AC
    • Awg Gauge : 1 x AWG 8...AWG 2 ( aluminium/copper )
