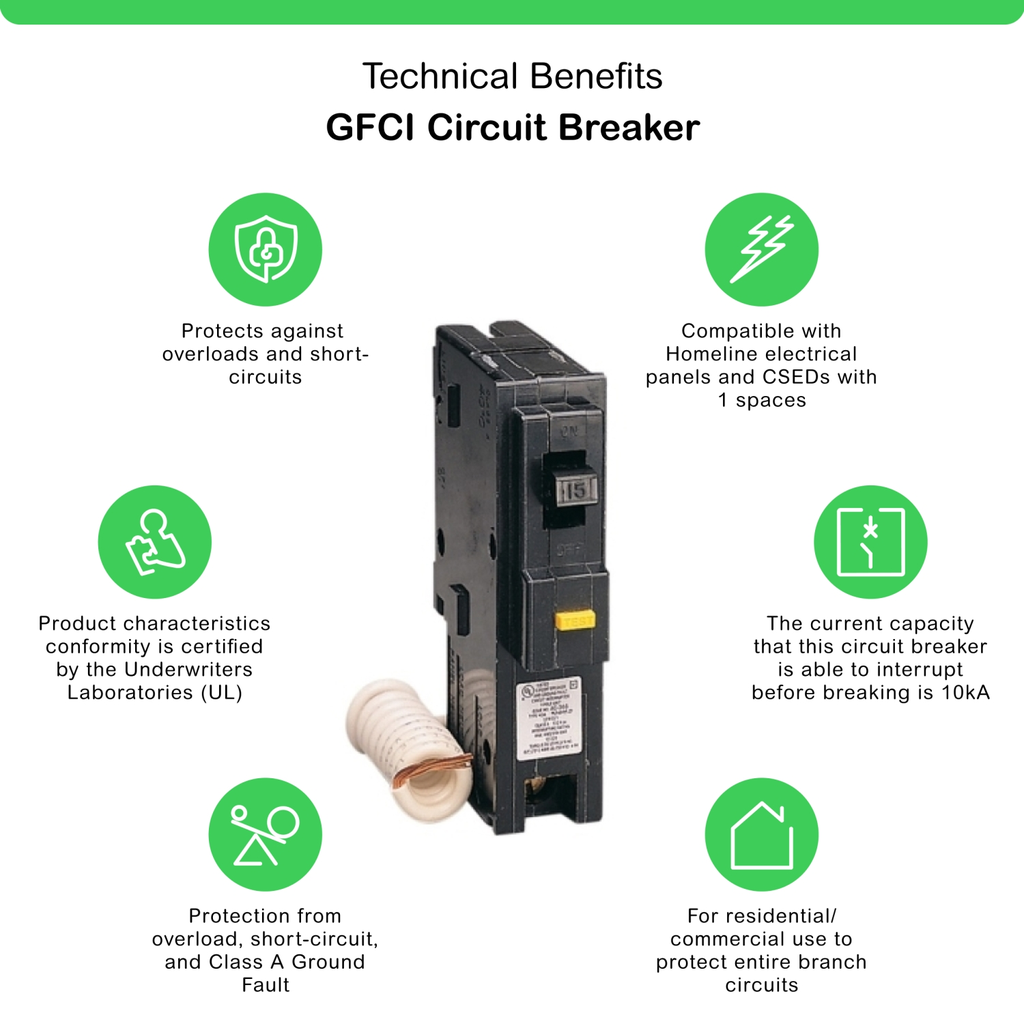

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 15A at 120 VAC. HOM breakers provide 10 kA breaking capacity. This Homeline ground fault circuit breakers provide overload and short circuit protection, combined with Class A ground fault protection. Class A denotes a ground fault circuit interrupter that will trip when a fault current to ground is 6 milliamperes or more. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. HOM Homeline miniature circuit breakers are UL Listed.

• Prop 65
• WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

• Complementary Attributes
• UE Rated Operational Voltage : 120 V AC
• Important Information Attributes
• Persona Type Ids : EU, EUA, LC, OM, SC
• Persona Type Names : End User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
• Carbon Footprint Of The Distribution Phase A4 : 0.0920004339, 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.0991475922
• Carbon Footprint Of The Installation Phase A5 : 0.0020517018, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 4 kg CO2 eq., 3.8520993913
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 37 kg CO2 eq., 37.374584
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-19
• HTML Description : MINIATURE CIRCUIT BREAKERCurrent Rating : 15 AVoltage Rating : 120 V ACNumber of Poles : 1PShort Circuit Current Rating : 10 kACircuit Breaker Type : Ground fault protecting class A 6 mA
• Manufacturer : Schneider Electric
• Device Type : LV equipment - Low voltage circuit breaker
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2212009
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : RESIDENTIAL
• Market Segmentation : Residential
• H And D Domain : Safety
• H And D Subrange : RESI
• H And D Enrichment Assignment : yes
• H And D Enrichment Function : GFCI
• H And D Enrichment Class 3 : Earth leakage protection devices
• H And D Enrichment Class 4 : GFCI
• AWG Gauge : 1 x AWG 14...AWG 10 ( aluminium/copper )
• Circuit Breaker Type : ground fault protecting class A 6 mA
• Energy Efficiency Optimized : False
• Halogen Free Status : Halogen free product
• Package Weight Lbs : 276.691 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : miniature circuit-breaker
• Range Of Product : Homeline
• Returnability : Yes
• Sustainable Packaging : No
• Tightening Torque : 4.1-4.1 N.m 2.5-6 mm² (AWG 14...AWG 10)
• Total Lifecycle Carbon Footprint : 41 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2212009_V1
• Pep Verification Date : 2023-08-01
• PCR Version : PCR-ed3-EN-2015 04 02
• PSR Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent external review
• Functional Unit Description : Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120V and rated current 20A. Product followed the standard UL489. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1p& 10- Rated breaking capacity 10KA
• Functional Unit Unit : unit
• Product Kit Identifier : N
• Product Manager : JORGE HUMBERTO PALACIOS
• Environment Attributes Main
• EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
• ROHS Exemption Information : Yes
• Take Back : No
• Halogene Performance : Halogen free product
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Carbon Footprint : 41.4198831192
• Circularity Profile : ENVEOLI2212009
• Environmental Disclosure : ENVPEP2212009_V1
• Halogen Content Performance : Halogen free product
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2212009_V1
• Pep Verification Date : 2023-08-01
• PCR Version : PCR-ed3-EN-2015 04 02
• PSR Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Product Or Component Type : miniature circuit-breaker
• Range Of Product : Homeline
• Contractual Warranty Attributes
• Warranty Period : Lifetime
• Warranty : Lifetime
• Specifications
• Compliance : TAA
