Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Ue Rated Operational Voltage
• 120 V AC
• Accessories
• HOM1HT
• HOM1PA
• HOMELEC1PA
• QO1LO
• Persona Type Names
• End User
• Consumer
• Contractor
• Original Equipment Manufacturer
• Electrician
• Persona Type Ids
• EU
• EUA
• LC
• OM
• SC
• Tightening Torque
• 4.0-4.0 N.m 2.5-6 mm² (AWG 14...AWG 8)
• AWG Gauge
• 1 x AWG 14...AWG 8 ( aluminium/copper )
• 2 x AWG 14...AWG 10 ( copper )

• Conformance Attributes
• Product Certifications : UL Listed
• Complementary Attributes
• Line Rated Current : 15 A
• Important Information Attributes
• Country Id : US
• B2B Bullet Point 1 : Homeline™ GFCI MCB are designed to protect against irregular electrical current
• B2B Bullet Point 2 : Compatible with Homeline™ electrical panel and CSEDs
• B2B Bullet Point 3 : Protects against overload, short curcuits, and ground faults with a current greater than 6mA
• B2B Bullet Point 4 : Conforms to the electrical characteristics stated in the data sheet per the Underwriters Laboratories (UL)
• B2B Bullet Point 5 : This product is TAA compliant.
• Local Data Status : Publishable
• Local Publishable Date : 2025-05-31
• Device Type : LV equipment - Low voltage circuit breaker
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2212005
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 2532
• ROHS Eur Full Compliance Status : Compliant with Exemptions
• ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : RESIDENTIAL
• Market Segmentation : Residential
• H And D Domain : Safety
• H And D Subrange : RESI
• H And D Enrichment Assignment : yes
• H And D Enrichment Function : DF
• H And D Enrichment Class 3 : Combined electrical protection
• H And D Enrichment Class 4 : CAFI+GFCI (Dual function)
• Circuit Breaker Application : HACR rated
• Circuit Breaker Type : combination ARC-fault and ground fault
• Electrical Connection : screw clamp terminals
• Energy Efficiency Optimized : False
• Halogen Free Status : Halogen free product
• Mounting Mode : plug-in
• Number Of Spaces Required : 1
• Package Weight Lbs : 299.371 g
• Poles Description : 1P
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : miniature circuit-breaker
• Range Of Product : Homeline
• Returnability : Yes
• Short Circuit Current : 10 kA
• Sustainable Packaging : No
• Connections Terminals : pigtail neutral
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : miniature circuit-breaker
• Range Of Product : Homeline
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=423253497&lang=en-us
• Take Back : No
• Halogene Performance : Halogen free product
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Ambient Air Temperature For Operation : 40 °C
• Circularity Profile : ENVEOLI2212005
• Environmental Disclosure : ENVPEP2212005
• Eu Rohs Directive : Compliant with Exemptions
• Halogen Content Performance : Halogen free product
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : Lifetime
• Warranty : Lifetime
• Specifications
• Country of Origin : Mexico

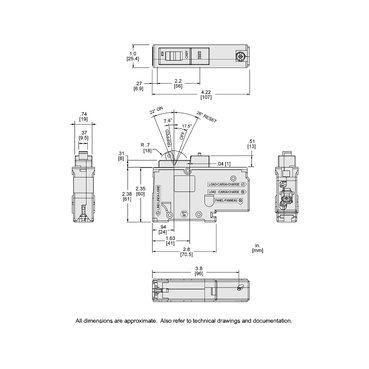

• Height : 3.13 in
• Width : 1 in
• Compliance : TAA
• Depth : 2.98 in
