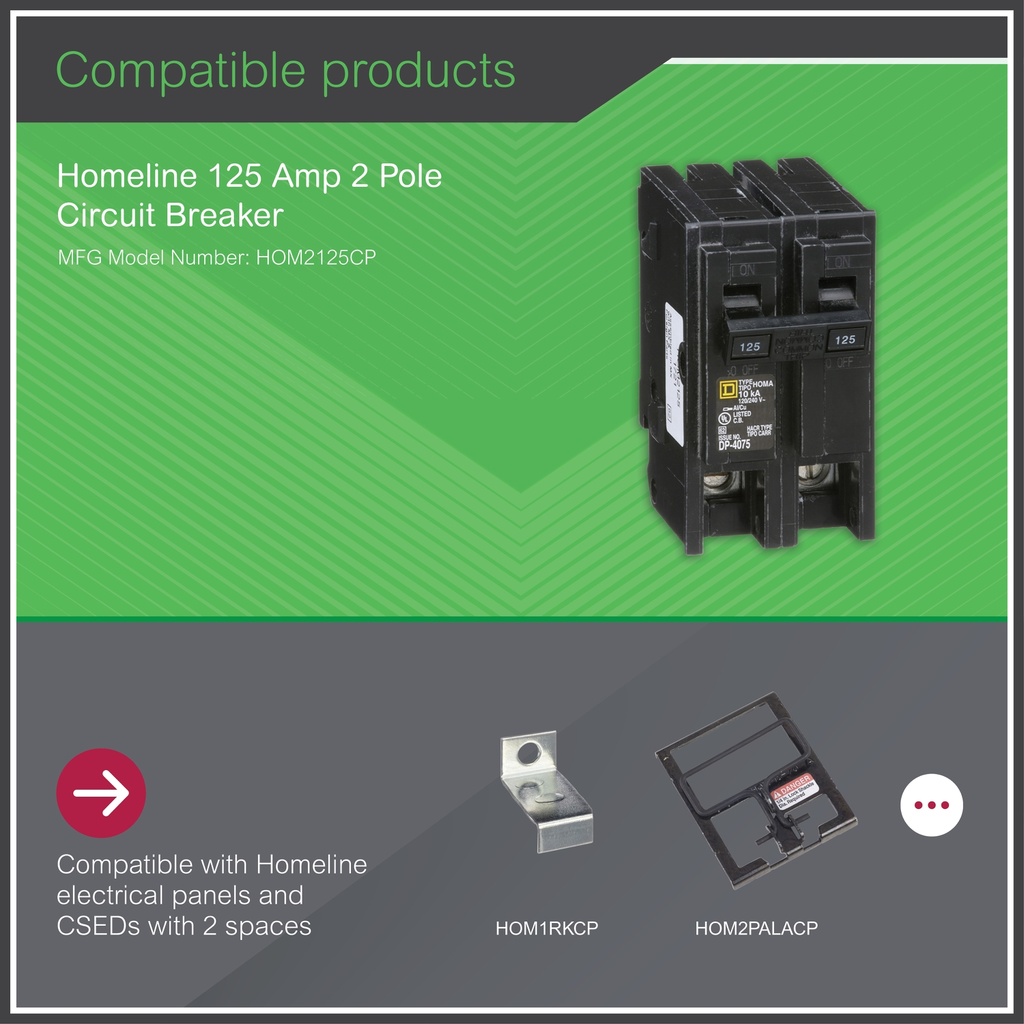

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 125A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connections are box lugs that will accept 1 wires. The box lugs will accept a wire range of 4 AWG to 2/0 AWG copper or aluminum wire. HOM Homeline miniature circuit breakers are UL Listed.

• Features
• Homeline™ MCBs provide value through their ease in installation, reliability, and superior circuit protection
• Designed to protect against equipment overloads and short-circuits
• Easy plug on design with SE Homeline Loadcenters
• Residential and Commercial circuit protection
• Product characteristics conformity is certified by the Underwriters Laboratories (UL)
• Prop 65
• WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Conformance Attributes
• Product Certifications : UL Listed
• Complementary Attributes
• Line Rated Current : 125 A
• Important Information Attributes
• Persona Type Ids : EU, EUA, LC, OM, SC
• Persona Type Names : End User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
• Carbon Footprint Of The Distribution Phase A4 : 0.0981813261, 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.0802007399
• Carbon Footprint Of The Installation Phase A5 : 0.0003902908, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 2 kg CO2 eq., 1.6078978779
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 22 kg CO2 eq., 21.872
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-18
• Manufacturer : Schneider Electric
• Device Type : LV equipment - Low voltage circuit breaker
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Legacy WEEE Scope : In
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Compliant
• ROHS EUR Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : RESIDENTIAL
• Market Segmentation : Residential
• H And D Domain : Safety
• H And D Subrange : RESI
• H And D Enrichment Assignment : no
• H And D Enrichment Function : MCB
• H And D Enrichment Class 3 : Circuit Breakers
• H And D Enrichment Class 4 : MCB UL 2P
• AWG Gauge : 1 x AWG 4...AWG 2/0 ( aluminium/copper )
• Circuit Breaker Application : HACR rated
• Circuit Breaker Type : standard
• Electrical Connection : box lugs
• Energy Efficiency Optimized : False
• Mounting Mode : plug-in
• Package Weight Lbs : 390.089 g
• Poles Description : 2P
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : miniature circuit-breaker
• Range Of Product : Homeline
• Returnability : Yes
• Short Circuit Current : 10 kA
• Sustainable Packaging : Yes
• Tightening Torque : 4.8-4.8 N.m (AWG 4...2/0 kcmil)
• Total Lifecycle Carbon Footprint : 24 kg CO2 eq.
• Ue Rated Operational Voltage2 : 120/240 V AC
• Medium Desc : Mini circuit breaker, Homeline, 125A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL
• Stocking Flag : N
• Product Kit Identifier : N
• Pep Code : ENVPEP1308001EN
• Database Version : 2016-11
• Pep Verification Date : 2021-12-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120/240 VAC and rated current 20A In. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1 Pole;& 10- Rated breaking capacity 10 kA;
• Functional Unit Unit : unit
• Energy Model Manufacturing A1 A3 2 : Energy model used: USA
• Energy Model Installation A5 2 : Electricity mix AC; Europe consistent; consumption mix, at power plant; US
• Energy Model Use B6 2 : Electricity mix AC; Europe consistent; consumption mix, at power plant; US
• Energy Model End Of Life C1 C4 2 : Electricity mix AC; Europe consistent; consumption mix, at power plant; US
• Global Commercial Status : Commercialised
• Ue Rated Operational Voltage5 : 120/240 V AC
• Environment Attributes Main
• China ROHS Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
• EU ROHS Directive : Compliant , Compliant
• ROHS Exemption Information : Yes
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 23.6586702347
• Ambient Air Temperature For Operation : 40 °C
• Environmental Disclosure : ENVPEP1308001EN
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1308001EN
• Pep Verification Date : 2021-12-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : miniature circuit-breaker
• Range Of Product : Homeline
• Contractual Warranty Attributes
• Warranty Period : Lifetime
• Warranty : Lifetime
• Specifications
• Depth : 2.98 in
