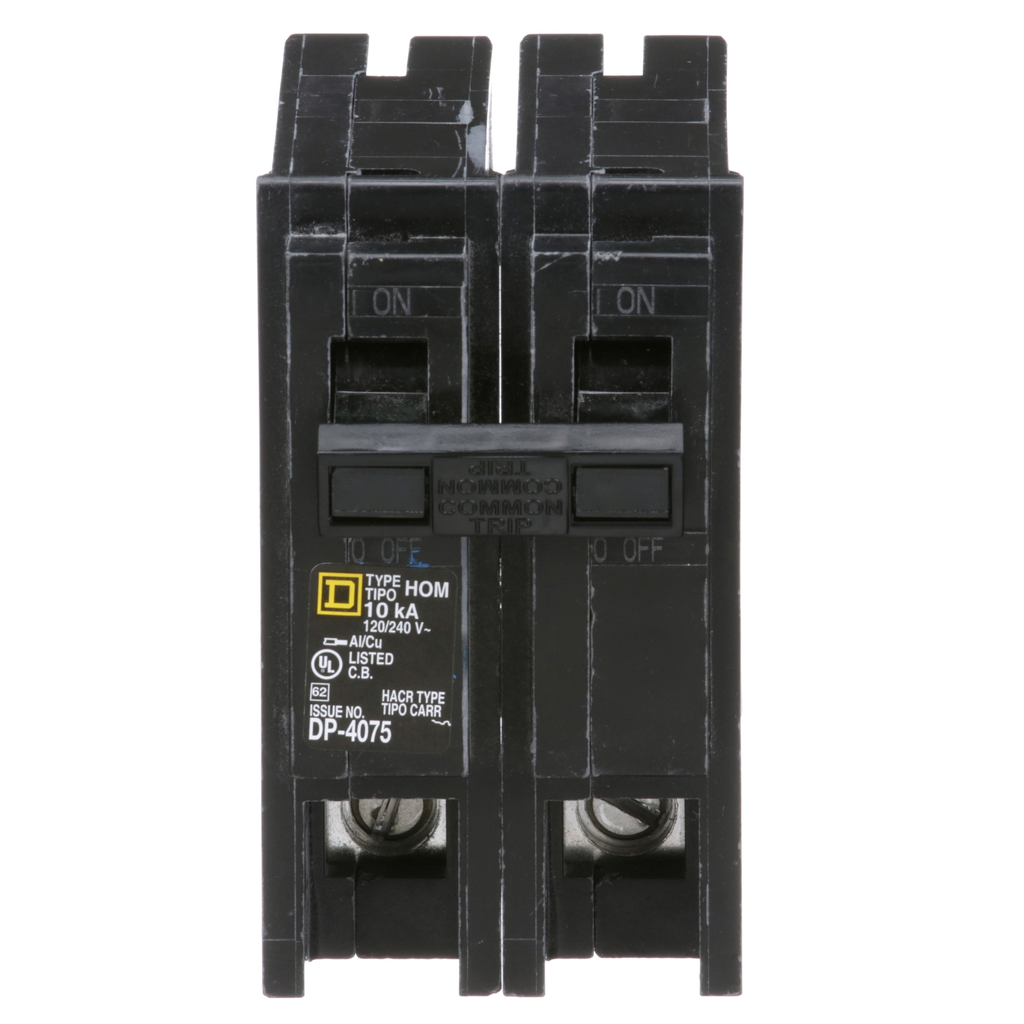

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 110A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connections are box lugs that will accept 1 wires. The box lugs will accept a wire range of 4 AWG to 2/0 AWG copper or aluminum wire. HOM Homeline miniature circuit breakers are UL Listed.

• Prop 65
• WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Accessories
• HOM1HT
• HOM2HBD
• HOM2PAHA
• QOM1PA
• HOML2125
• Persona Type Names
• End User
• Contractor
• Persona Type Ids
• EU
• LC
• Tightening Torque
• 4.8-4.8 N.m (AWG 4...2/0 kcmil)
• AWG Gauge
• 1 x AWG 4...AWG 2/0 ( aluminium/copper )
• UE Rated Operational Voltage
• 120/240 V AC

• Assets
• CAD : https://download.schneider-electric.com/files?p_Doc_Ref=48852-121-01&p_File_name=48852-121-01.DWG
• Important Information Attributes
• B2B Bullet Point 1 : Homeline™ MCBs provide value through their ease in installation, reliability, and superior circuit protection
• B2B Bullet Point 2 : Designed to protect against equipment overloads and short-circuits
• B2B Bullet Point 3 : Easy plug on design with SE Homeline Loadcenters
• B2B Bullet Point 4 : Residential and Commercial circuit protection
• B2B Bullet Point 5 : Product characteristics conformity is certified by the Underwriters Laboratories (UL)
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-18
• HTML Description : MINIATURE CIRCUIT BREAKERCurrent Rating : 110 AVoltage Rating : 120/240 V ACNumber of Poles : 2PShort Circuit Current Rating : 10 kACircuit Breaker Type : Standard
• Manufacturer : Schneider Electric
• Device Type : LV equipment - Low voltage circuit breaker
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant
• ROHS EUR Conformity Date : 2534
• ROHS EUR Full Compliance Status : Compliant
• ROHS EUR Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : RESIDENTIAL
• Market Segmentation : Residential
• H And D Domain : Safety
• H And D Subrange : RESI
• H And D Enrichment Assignment : no
• H And D Enrichment Function : MCB
• H And D Enrichment Class 3 : Circuit Breakers
• H And D Enrichment Class 4 : MCB UL 2P
• Circuit Breaker Type : standard
• Energy Efficiency Optimized : False
• Number Of Spaces Required : 2
• Package Weight Lbs : 390.089 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : miniature circuit-breaker
• Range Of Product : Homeline
• Returnability : Yes
• Sustainable Packaging : Yes
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP1308001
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : miniature circuit-breaker
• Range Of Product : Homeline
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=398055&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP1308001
• EU ROHS Directive : Compliant
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1308001
• Contractual Warranty Attributes
• Warranty Period : Lifetime
• Warranty : Lifetime
• Specifications
• Country of Origin : Mexico
