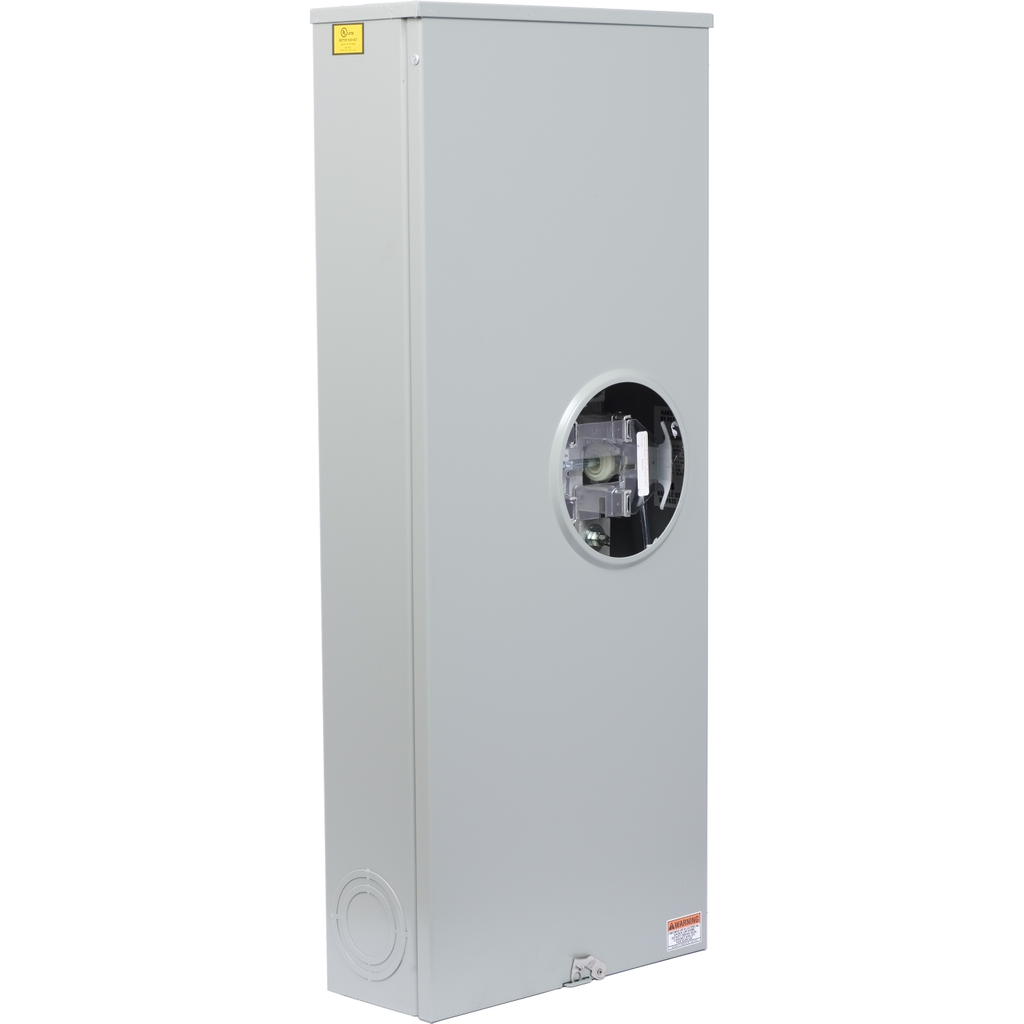

Meter socket, ringless, 1 phase, 3 wire, 4 jaws, Series A-L, lever bypass, jaw release

MTR SKT 320A 1PH OH/UG RINGLES

SQDUTH43369T UTH43369T 785901230502
1153.46 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Meter socket, ringless, 1 phase, 3 wire, 4 jaws, Series A-L, lever bypass, jaw release-1
  • Number of Jaws: 4 With Jaw Release, 4 With Jaw Release
  • Warranty Length: 18 mth
Square D individual meter sockets have provisions to feed a downstream main lug load center, main breaker load center, or an individually enclosed service disconnect. Units can have a combination of releases, horn, or no bypasses to handle any meter socket situation. Units supplied with hub opening in top end wall require the use of a bolt-on hub or closing plate. With 200 A, 600 V, 1 phase, 4 jaws, ringless socket your product can provide 10 kA RMS short circuit rating. These units are supplied with a bonded neutral to the NEMA 3R enclosure. Meter sockets are UL Listed. This meter has horn bypass allowing for continued service during meter maintenance or replacement.
QTY
  • Product Description
  • Features
  • Specifications
Square D individual meter sockets have provisions to feed a downstream main lug load center, main breaker load center, or an individually enclosed service disconnect. Units can have a combination of releases, horn, or no bypasses to handle any meter socket situation. Units supplied with hub opening in top end wall require the use of a bolt-on hub or closing plate. With 200 A, 600 V, 1 phase, 4 jaws, ringless socket your product can provide 10 kA RMS short circuit rating. These units are supplied with a bonded neutral to the NEMA 3R enclosure. Meter sockets are UL Listed. This meter has horn bypass allowing for continued service during meter maintenance or replacement.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer, and Toluene, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • UE Rated Operational Voltage : 600 V AC, 600 V AC
    • Meter Socket Rated Current : 320 A
  • Important Information Attributes
    • Persona Type Ids : EU, LC
    • Persona Type Names : End User, Contractor
    • AWG Gauge : AWG 6...350 kcmil aluminium/copper)service ground, AWG 6...350 kcmil aluminium/copper)service ground, AWG 6...350 kcmil aluminium/copper)service ground, AWG 4...600 kcmil aluminium/copper)line side, AWG 4...600 kcmil aluminium/copper)line side, AWG 4...600 kcmil aluminium/copper)line side
    • Electrical Connection : lugs 0.5" hex, lugs 0.5" hex
    • Hub Type : A-L ACPL closing plate, A-L ACPL closing plate
    • Number Of Jaws : 4 with jaw release, 4 with jaw release
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Full Compliance Status : Under investigation
    • ROHS EUR Full Compliance Status Id : UNDER_INVESTIGATION
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • Energy Efficiency Optimized : False
    • Meter Socket Type : ringless
    • Package Weight Lbs : 18.144 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Meter Socket
    • Returnability : Yes
    • Sustainable Packaging : No
    • Wiring Configuration : 3-wire
    • Relationship Type : Compatible relationship
    • Product Kit Identifier : N
  • Environment Attributes Main
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • EU ROHS Directive : Under investigation
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • General Attributes
    • Product Or Component Type : Meter Socket
  • Output Attributes
    • Bypass Type : lever bypass
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
