Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 8 spaces, 16 circuits, Class 320 with lever bypass

METER MAIN 400A RINGLESS

SQDQU816D400SL QU816D400SL 785901468455
4036.42 / EACH
http://schema.org/OutOfStock

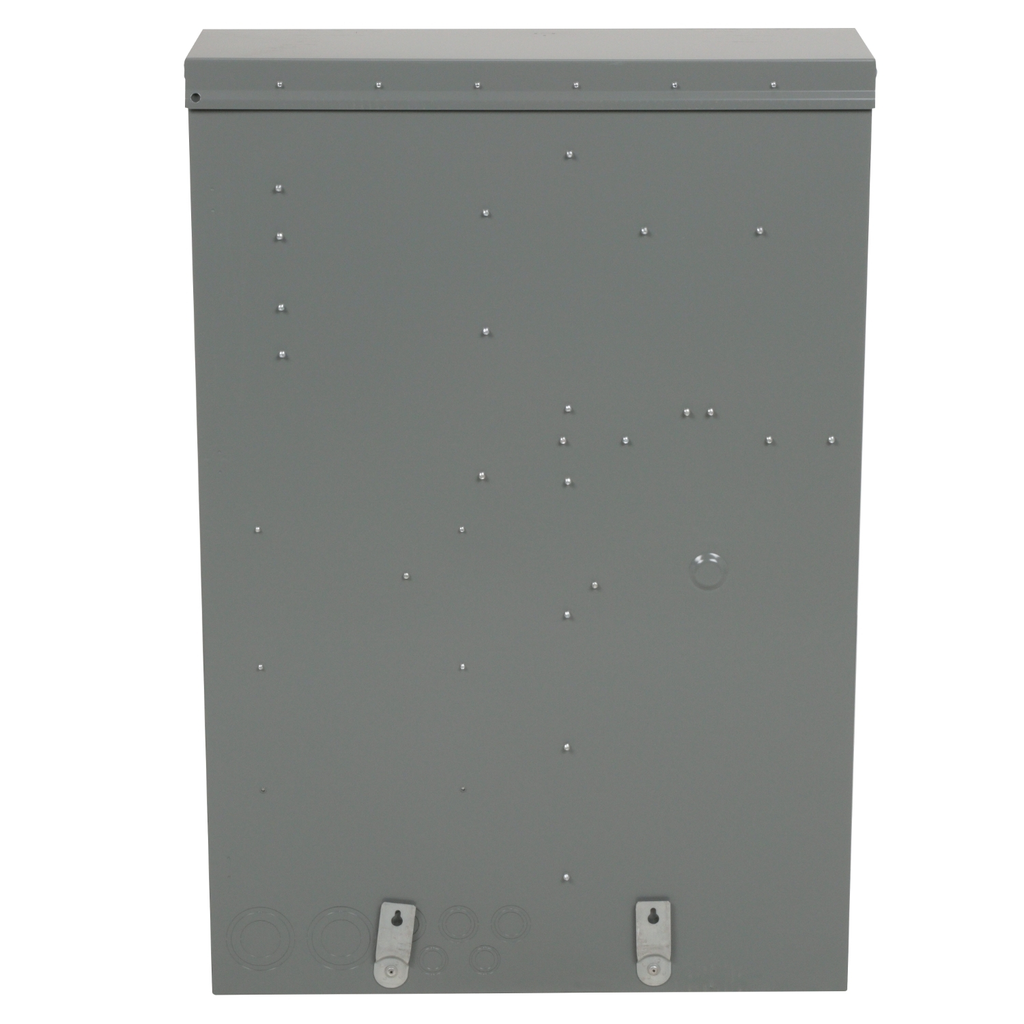

Mayer-DDS-Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 8 spaces, 16 circuits, Class 320 with lever bypass-2
  • Country of Origin: Mexico
  • Depth: 7.87 in
  • Height: 43.00 in
  • Number of Circuits: 16
  • Number of Spaces: 8
  • Short Circuit Current Rating: 25 kA
  • Warranty Length: 18 mth
  • Width: 28.25 in
Square D meter mains devices are single phase power distribution panels ideal for residential use for when the local codes require the service disconnect to be located outside the dwelling. These devices come with a meter socket that supports a standard utility meter and a main disconnect breaker and include provisions for field installation of service disconnect(s) to feed downstream devices. Square D meter mains products are single compact solution provides a time and space saving solution for contractors and installers as well as meet a wide range of applications in use today. This meter main is designed for QO range, has 8 spaces, is rated at 400A and has a short circuit current rating of 25 kA. This device has a lever bypass type, uses a ringless meter socket type and can only be service feed underground. This CSED uses studs on the line side and uses lugs on the service ground side of the device, has a wire range of 4 AWG–250 kcmil on the service ground side. The dimensions for this product are 43.00 in (H) x 28.25 in (W) x 7.87 in (D).
QTY
  • Product Description
  • Features
  • Specifications
Square D meter mains devices are single phase power distribution panels ideal for residential use for when the local codes require the service disconnect to be located outside the dwelling. These devices come with a meter socket that supports a standard utility meter and a main disconnect breaker and include provisions for field installation of service disconnect(s) to feed downstream devices. Square D meter mains products are single compact solution provides a time and space saving solution for contractors and installers as well as meet a wide range of applications in use today. This meter main is designed for QO range, has 8 spaces, is rated at 400A and has a short circuit current rating of 25 kA. This device has a lever bypass type, uses a ringless meter socket type and can only be service feed underground. This CSED uses studs on the line side and uses lugs on the service ground side of the device, has a wire range of 4 AWG–250 kcmil on the service ground side. The dimensions for this product are 43.00 in (H) x 28.25 in (W) x 7.87 in (D).
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL E-6294
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2212001
    • Packaging Without Single Use Plastic : No
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Circularity Profile : N/A
    • Take-Back : No
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 399.6480406611
  • Complementary
    • Height : 43.00 in
    • Branch Circuit Breaker Rated Current : 200 A
    • Bypass Type : class 320 lever bypass
    • Service Feed Location : UG
    • Bus Rated Current : 200.0 A
    • Electrical Connection : studs, line side || feed-thru lugs, service ground
    • Number Of Circuits : 16
    • Number Of Spaces : 8
    • Short-Circuit Current : 25 kA
    • Number Of Tandem Circuit Breakers : 8
    • Hub Type : A-L
    • Meter Socket Type : ringless
    • Service Disconnect Rated Current : 200 A
    • Line Rated Current : 400 A
    • Awg Gauge : AWG 4...250 kcmil aluminium)service ground || AWG 4...250 kcmil copper)service ground
    • Width : 28.25 in
    • Depth : 7.87 in
    • Network Number Of Phases : 1
    • Device Composition : service disconnect (factory installed)
    • Device Mounting : surface
  • Specifications
    • Country of Origin : Mexico
    • Width : 28.25 in
    • Height : 43.00 in
    • Range Of Product : QO
    • Product Or Component Type : Meter Mains
