SQUARE D

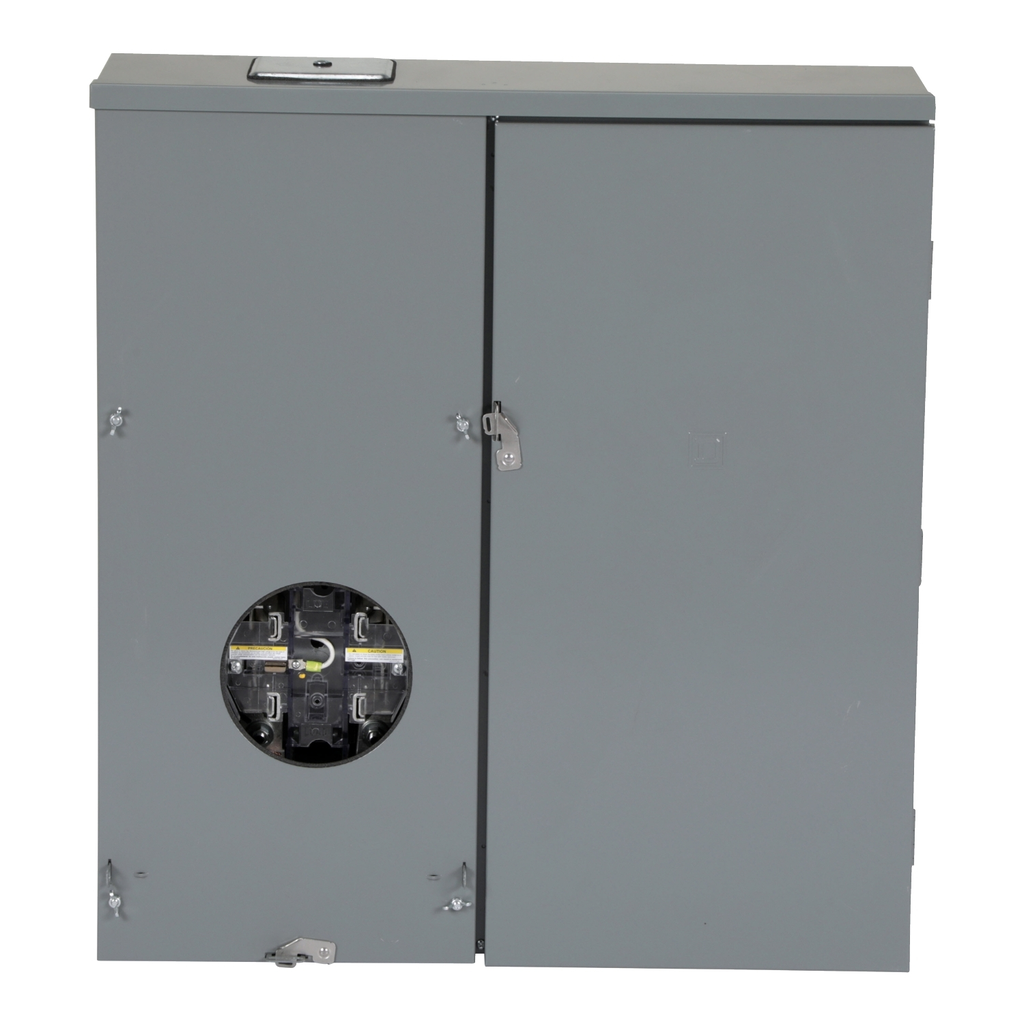

Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 8 spaces, 16 circuits, Class 320 with lever bypass

Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 8 spaces, 16 circuits, Class 320 with lever bypass

SQDQC816D400SL QC816D400SL 785901127284
1545.96 / EA
http://schema.org/OutOfStock
Mayer-DDS-Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 8 spaces, 16 circuits, Class 320 with lever bypass-2
Square D™ Meter Mains are single phase power distribution panels used in residential applications where local codes require service disconnects to be located outside the dwelling. The meter socket supports a standard utility meter and a main disconnect breaker which provides a time and space saving solution for contractors and installers. Meter mains are surface or semiflush mount with provisions. This is for the field installation of the service disconnect(s) that feed devices downstream. Interior subfeed load centers are typically used with these. This CSED is a QO ringless type, class 320 socket with lever bypass, and combination overhead/underground feed. With a current rating of 400A, this product has a short circuit current rating of 22kA. This unit is supplied with factory installed QOM2100VH main breaker. Dual main service disconnects with feedthru lugs option is also available. Devices meet the Electric Utility Service Equipment Requirements Committee (EUSERC) standards, Federal Specifications W-P-115C for government housing.
QTY
  • Product Description
  • Features
  • Specifications
Square D™ Meter Mains are single phase power distribution panels used in residential applications where local codes require service disconnects to be located outside the dwelling. The meter socket supports a standard utility meter and a main disconnect breaker which provides a time and space saving solution for contractors and installers. Meter mains are surface or semiflush mount with provisions. This is for the field installation of the service disconnect(s) that feed devices downstream. Interior subfeed load centers are typically used with these. This CSED is a QO ringless type, class 320 socket with lever bypass, and combination overhead/underground feed. With a current rating of 400A, this product has a short circuit current rating of 22kA. This unit is supplied with factory installed QOM2100VH main breaker. Dual main service disconnects with feedthru lugs option is also available. Devices meet the Electric Utility Service Equipment Requirements Committee (EUSERC) standards, Federal Specifications W-P-115C for government housing.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Conformance Attributes
    • Product Certifications : UL listed file E-6294
  • Complementary Attributes
    • Bus Rated Current : 200.0 A
  • Important Information Attributes
    • Persona Type Ids : EU, LC
    • Persona Type Names : End User, Contractor
    • AWG Gauge : AWG 4...600 kcmil 1 aluminium/copper), AWG 4...600 kcmil 1 aluminium/copper), AWG 4...600 kcmil 1 aluminium/copper), AWG 1/0...350 kcmil 2 aluminium/copper), AWG 1/0...350 kcmil 2 aluminium/copper), AWG 1/0...350 kcmil 2 aluminium/copper)
    • Provided Equipment : circuit-breaker 1 ) 200 A 240 V AC, circuit-breaker 1 ) 200 A 240 V AC, circuit-breaker 1 ) 200 A 240 V AC, circuit-breaker 1 ) 200 A 240 V AC, circuit-breaker 1 ) 200 A 240 V AC
    • Service Feed Location : OH, UG
    • Carbon Footprint Of The Distribution Phase A4 : 23.196555889027298, 23 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 54 kg CO2 eq., 54.14221836314223
    • Carbon Footprint Of The Installation Phase A5 : 0.4530712629059614, 0.5 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 216 kg CO2 eq., 216.26544319054915
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 220 kg CO2 eq., 219.92644545809503
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • H And D Hub : SESA768490 - MILLER, Brandon
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • H And D Enrichment Class 3 : Meter enclosures
    • H And D Enrichment Class 4 : Combination service entrance device
    • Energy Efficiency Optimized : False
    • Meter Socket Type : ringless
    • Package Weight Lbs : 997.902 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Meter Mains
    • Range Of Product : QO
    • Returnability : Yes
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 514 kg CO2 eq.
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2509019EN
    • Pep Verification Date : 2025-09-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : When a product covered by this PSR includes additional functions, the functional unit defined in the PSR shall be used and shall be completed in order to take into account these additional functionsThe installation must be protected against overloads and short circuits in accordance with the circuit’s rated voltage (Ue), rated current (In), number of poles (Np), rated breaking capacity (Icn), and tripping curve (Cd). The protective device should be capable of establishing, carrying, and interrupting the rated current at the rated voltage. It must be suitable for wall-mounted or enclosure/cabinet installations in household or commercial environments, depending on the intended use. Additionally, the device should be designed to maintain reliable performance throughout a reference service life of 20 years.
    • Functional Unit Unit : unit
    • Product Kit Identifier : N
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Carbon Footprint : 513.9837341637196
    • Environmental Disclosure : ENVPEP2509019EN
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Pep Code : ENVPEP2509019EN
    • Pep Verification Date : 2025-09-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Provided Equipment : circuit-breaker 1 ) 200 A 240 V AC, circuit-breaker 1 ) 200 A 240 V AC, circuit-breaker 1 ) 200 A 240 V AC, circuit-breaker 1 ) 200 A 240 V AC, circuit-breaker 1 ) 200 A 240 V AC
    • Product Or Component Type : Meter Mains
    • Range Of Product : QO
  • Output Attributes
    • Bypass Type : class 320, lever bypass
