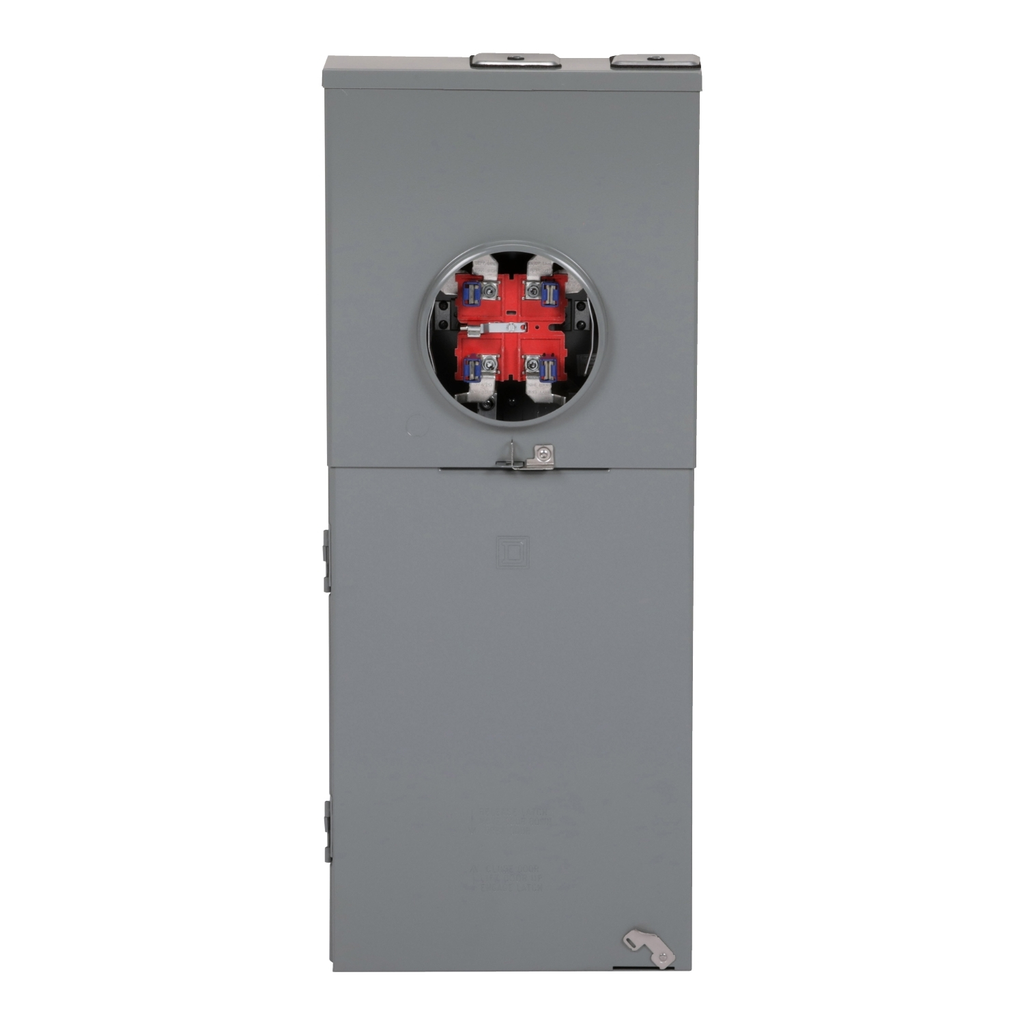

Meter mains, QO, CSED, ringless socket, 200A, surface mount, maximum 8 spaces, 16 circuits, horn bypass

METER MAIN RINGLESS HORN OH/UG

SQDQC816F200CH QC816F200CH 785901001089
1380.63 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Meter mains, QO, CSED, ringless socket, 200A, surface mount, maximum 8 spaces, 16 circuits, horn bypass-1
  • Country of Origin: Mexico
  • Depth: 5.07 in
  • Number of Circuits: 16
  • Number of Spaces: 8
  • Warranty Length: 18 mth
Square D meter mains devices are single phase power distribution panels ideal for residential use for when the local codes require the service disconnect to be located outside the dwelling. These devices come with a meter socket that supports a standard utility meter and a main disconnect breaker and include provisions for field installation of service disconnect(s) to feed downstream devices. Square D meter mains products are single compact solution provides a time and space saving solution for contractors and installers as well as meet a wide range of applications in use today. This meter main is designed for QO range, has 8 spaces, is rated at 200A and has a short circuit current rating of 22 kA. This device has a horn bypass type, uses a ringless meter socket type and can be service feed either overhead or underground. This CSED uses lugs on the line side and feed thru lugs service ground side of the device, has a wire range of 6 AWG to 350 kcmil on the line side and 12 AWG to 2/0 AWG on the service ground side. The dimensions for this product are 35.15 in (H) x 14.37 in (W) x 5.07 in (D).
QTY
  • Product Description
  • Features
  • Specifications
Square D meter mains devices are single phase power distribution panels ideal for residential use for when the local codes require the service disconnect to be located outside the dwelling. These devices come with a meter socket that supports a standard utility meter and a main disconnect breaker and include provisions for field installation of service disconnect(s) to feed downstream devices. Square D meter mains products are single compact solution provides a time and space saving solution for contractors and installers as well as meet a wide range of applications in use today. This meter main is designed for QO range, has 8 spaces, is rated at 200A and has a short circuit current rating of 22 kA. This device has a horn bypass type, uses a ringless meter socket type and can be service feed either overhead or underground. This CSED uses lugs on the line side and feed thru lugs service ground side of the device, has a wire range of 6 AWG to 350 kcmil on the line side and 12 AWG to 2/0 AWG on the service ground side. The dimensions for this product are 35.15 in (H) x 14.37 in (W) x 5.07 in (D).
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Branch Circuit Breaker Rated Current : 200 A
    • Bus Rated Current : 200.0 A
    • Line Rated Current : 200 A
    • Service Disconnect Rated Current : 200 A
  • Important Information Attributes
    • Persona Type Ids : EU, LC, OM
    • Persona Type Names : End User, Contractor, Original Equipment Manufacturer
    • Awg Gauge : AWG 6...350 kcmil aluminium/copper)line side, AWG 12...AWG 2/0 aluminium/copper)service ground
    • Electrical Connection : feed-thru lugs, line side, feed-thru lugs, service ground
    • Service Feed Location : OH, UG
    • Tightening Torque : main lugs 250 lb.in, AWG 6...350 kcmil, aluminium/copper, service ground 50 lb.in, AWG 14...AWG 2/0, copper, service ground 50 lb.in, AWG 12...AWG 2/0, aluminium, branch lugs 35 lb.in, AWG 6...AWG 4, aluminium/copper, branch lugs 25 lb.in, AWG 8, aluminium/copper, branch lugs 20 lb.in, AWG 14...AWG 10, copper, branch lugs 20 lb.in, AWG 12...AWG 10, aluminium, Cover 10 lb.in
    • Carbon Footprint Of The Distribution Phase A4 : 12.999289615939855, 13 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 30 kg CO2 eq., 30.341158416748726
    • Carbon Footprint Of The Installation Phase A5 : 0.25389995787953107, 0.3 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 121 kg CO2 eq., 121.19459213698909
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 20 kg CO2 eq., 19.79338009122855
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-03-26
    • Return Indicator : Y
    • Stocking Flag : N
    • Stock Policy : 2
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • H And D Enrichment Class 3 : Meter enclosures
    • H And D Enrichment Class 4 : Combination service entrance device
    • Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : Outside of Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 2534
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : No
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • Product Kit Identifier : N
    • Device Composition : service disconnect (factory installed)
    • Energy Efficiency Optimized : False
    • Hub Type : A
    • Meter Socket Type : ringless
    • Network Number Of Phases : 1
    • Number Of Circuits : 16
    • Number Of Spaces : 8
    • Number Of Tandem Circuit Breakers : 8
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Meter Mains
    • Range Of Product : QO
    • Returnability : Yes
    • Short Circuit Current : 22 kA
    • Software Version : v6.2.5-6
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 185 kg CO2 eq.
    • Warranty In Months : 18
    • Pep Code : ENVPEP2509019EN
    • Database Version : 2024-01
    • Pep Verification Date : 2025-09-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional-unit Description : When a product covered by this PSR includes additional functions, the functional unit defined in the PSR shall be used and shall be completed in order to take into account these additional functionsThe installation must be protected against overloads and short circuits in accordance with the circuit’s rated voltage (Ue), rated current (In), number of poles (Np), rated breaking capacity (Icn), and tripping curve (Cd). The protective device should be capable of establishing, carrying, and interrupting the rated current at the rated voltage. It must be suitable for wall-mounted or enclosure/cabinet installations in household or commercial environments, depending on the intended use. Additionally, the device should be designed to maintain reliable performance throughout a reference service life of 20 years.
    • Functional-unit Quantity : 1
    • Functional-unit Unit : unit
    • Energy Model - Manufacturing [A1-a3] : Electricity Mix; Low voltage; 2020; Mexico, MX
    • Energy Model - Installation [A5] : No energy used
    • Energy Model - Use [B6] : Electricity Mix; Low voltage; 2020; United States, US
    • Energy Model - End Of Life [C1-c4] : Global, European and French datasets are used.
    • Recyclability Potential, In % : 89
    • Offer Owner Code : 190788
    • Pn : 1
    • Height Nominal : 35.15 in
    • Width Nominal : 14.37 in
    • Certificate Agency : UL E-6294
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • Mercury Free : Yes
    • Carbon Footprint : 184.58232021878575
    • Environmental Disclosure : ENVPEP2509019EN
    • Eu Rohs Directive : Compliant By Exemption
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2509019EN
    • Pep Verification Date : 2025-09-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : Meter Mains
    • Range Of Product : QO
  • Output Attributes
    • Bypass Type : horn bypass
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
    • Depth : 5.07 in
