SQUARE D

Meter mains, QO, CSED, ringed socket, 400A, surface mount, maximum 8 spaces, 16 circuits, Class 320 manual bypass

MTR MAIN RING T-MANUAL TEST BY

SQDCU816D400CB CU816D400CB 785901583608
4121.81 / EACH
http://schema.org/OutOfStock

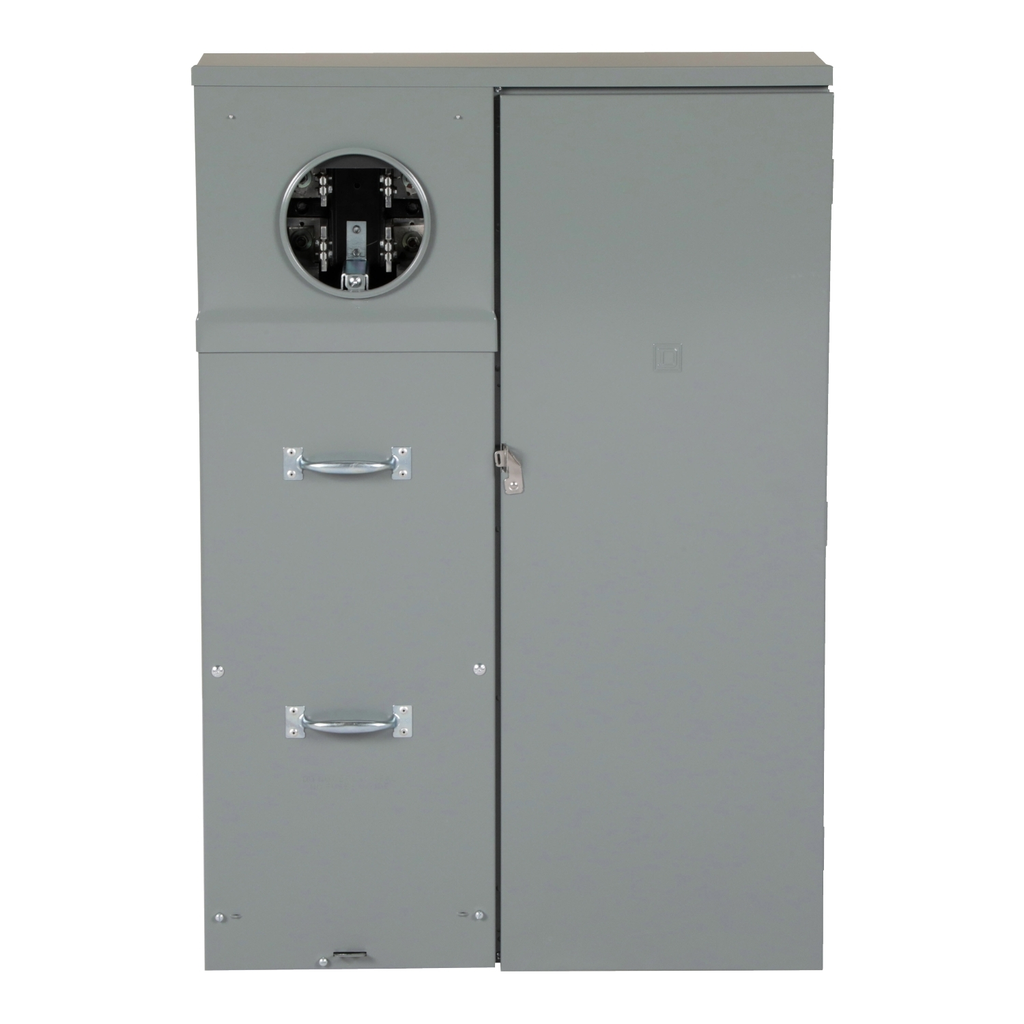

Mayer-DDS-Meter mains, QO, CSED, ringed socket, 400A, surface mount, maximum 8 spaces, 16 circuits, Class 320 manual bypass-2
  • Country of Origin: USA
  • Depth: 7.87 in
  • Height: 43.00 in
  • Number of Circuits: 16
  • Number of Spaces: 8
  • Short Circuit Current Rating: 25 kA
  • Warranty Length: 18 mth
  • Width: 28.25 in
Square D™ Meter Mains are single phase power distribution panels used in residential applications where local codes require service disconnects to be located outside the dwelling. The meter socket supports a standard utility meter and a main disconnect breaker which provides a time and space saving solution for contractors and installers. Meter mains are surface or semiflush mount with provisions. This is for the field installation of the service disconnect(s) that feed devices downstream. Interior subfeed load centers are typically used with these. This CSED is a QO ring type, class 320 socket with test block bypass, and underground feed. With a current rating of 400A, this product has a short circuit current rating of 25kA. Main lug interior option is also available. Devices meet the Electric Utility Service Equipment Requirements Committee (EUSERC) standards, Federal Specifications W-P-115C for government housing.
QTY
  • Product Description
  • Features
  • Specifications
Square D™ Meter Mains are single phase power distribution panels used in residential applications where local codes require service disconnects to be located outside the dwelling. The meter socket supports a standard utility meter and a main disconnect breaker which provides a time and space saving solution for contractors and installers. Meter mains are surface or semiflush mount with provisions. This is for the field installation of the service disconnect(s) that feed devices downstream. Interior subfeed load centers are typically used with these. This CSED is a QO ring type, class 320 socket with test block bypass, and underground feed. With a current rating of 400A, this product has a short circuit current rating of 25kA. Main lug interior option is also available. Devices meet the Electric Utility Service Equipment Requirements Committee (EUSERC) standards, Federal Specifications W-P-115C for government housing.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL E-6294
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1407020EN
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Circularity Profile : N/A
    • Take-Back : No
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 318.7781429417
  • Complementary
    • Height : 43.00 in
    • Branch Circuit Breaker Rated Current : 200 A
    • Bypass Type : manual bypass || class 320
    • Service Feed Location : UG
    • Bus Rated Current : 200.0 A
    • Electrical Connection : studs, line side || feed-thru lugs, service ground
    • Number Of Circuits : 16
    • Number Of Spaces : 8
    • Short-Circuit Current : 25 kA
    • Number Of Tandem Circuit Breakers : 8
    • Hub Type : A-L
    • Meter Socket Type : ringed
    • Service Disconnect Rated Current : 200 A
    • Line Rated Current : 400 A
    • Awg Gauge : AWG 4...250 kcmil aluminium)service ground || AWG 4...250 kcmil copper)service ground
    • Width : 28.25 in
    • Depth : 7.87 in
    • Network Number Of Phases : 1
    • Device Composition : service disconnect (factory installed)
    • Device Mounting : surface || semi flush with field installed flange kit
  • Specifications
    • Country of Origin : United States
    • Width : 28.25 in
    • Height : 43.00 in
    • Range Of Product : QO
    • Product Or Component Type : Meter Mains
