SQUARE D

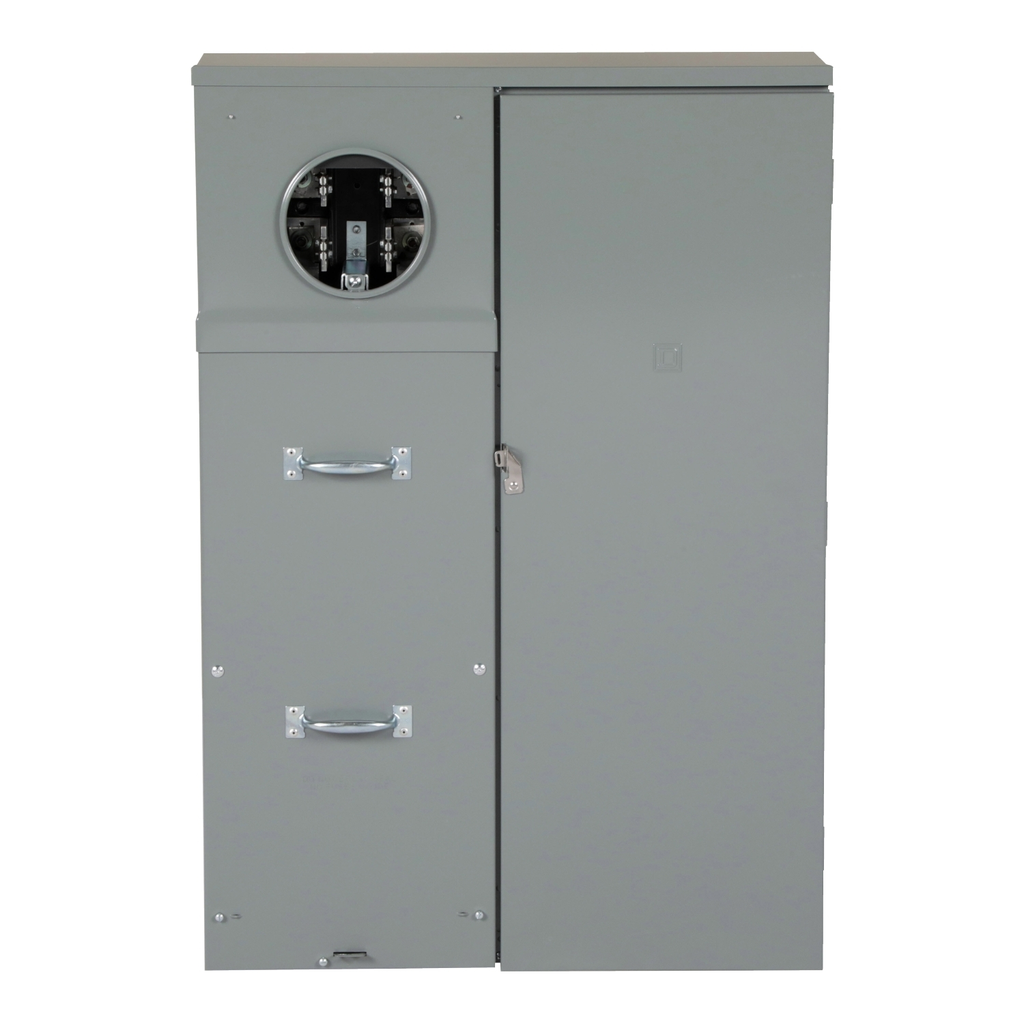

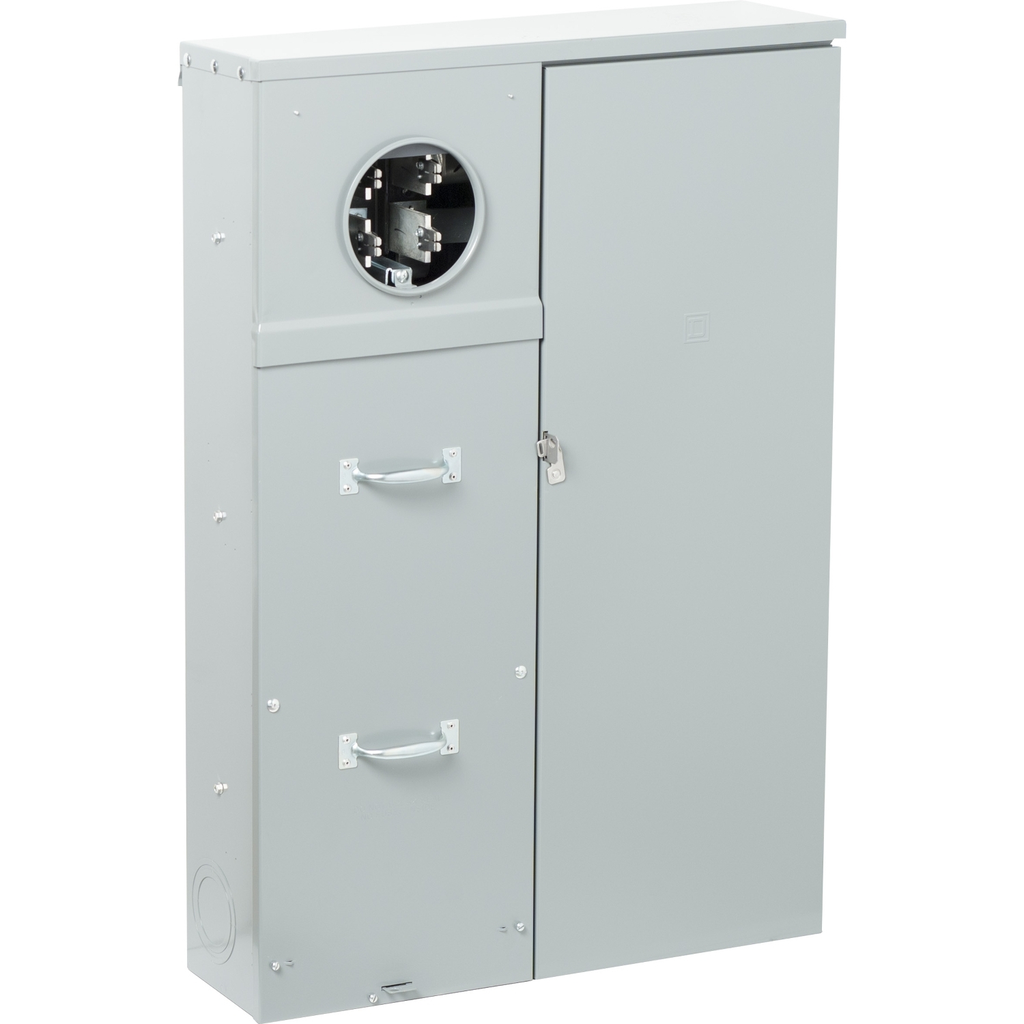

Meter mains, QO, CSED, ringed socket, 400A, surface mount, maximum 8 spaces, 16 circuits, class 320, no bypass

METER MAIN 400A RING TYPE

SQDCU816D400CN CU816D400CN 785901545293
3699.33 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Meter mains, QO, CSED, ringed socket, 400A, surface mount, maximum 8 spaces, 16 circuits, class 320, no bypass-3
  • Certifications: UL E-6294
  • Depth: 7.87 in
  • Height: 43.00 in
  • Line Rated Current: 400 A
  • Mounting Type: Semi Flush With Field Installed Flange Kit, Surface
  • Number of Circuits: 16
  • Number of Phases: 1
  • Short Circuit Current: 25 kA
  • Warranty Length: 18 mth
  • Width: 28.25 in
Square D™ Meter Mains are single phase power distribution panels used in residential applications where local codes require service disconnects to be located outside the dwelling. The meter socket supports a standard utility meter and a main disconnect breaker which provides a time and space saving solution for contractors and installers. Meter mains are surface or semiflush mount with provisions. This is for the field installation of the service disconnect(s) that feed devices downstream. Interior subfeed load centers are typically used with these. This CSED is a QO ring type, class 320 socket with no bypass, and underground feed. With a current rating of 400A, this product has a short circuit current rating of 25kA. This unit is supplied with factory installed QDL22200 main breaker. Dual main service disconnects with feedthru lugs option is also available. Devices meet the Electric Utility Service Equipment Requirements Committee (EUSERC) standards, Federal Specifications W-P-115C for government housing.
QTY
  • Product Description
  • Specifications
Square D™ Meter Mains are single phase power distribution panels used in residential applications where local codes require service disconnects to be located outside the dwelling. The meter socket supports a standard utility meter and a main disconnect breaker which provides a time and space saving solution for contractors and installers. Meter mains are surface or semiflush mount with provisions. This is for the field installation of the service disconnect(s) that feed devices downstream. Interior subfeed load centers are typically used with these. This CSED is a QO ring type, class 320 socket with no bypass, and underground feed. With a current rating of 400A, this product has a short circuit current rating of 25kA. This unit is supplied with factory installed QDL22200 main breaker. Dual main service disconnects with feedthru lugs option is also available. Devices meet the Electric Utility Service Equipment Requirements Committee (EUSERC) standards, Federal Specifications W-P-115C for government housing.
  • Environment
    • Product Certifications : UL E-6294
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1407020EN
    • Sustainable Offer Status : Green Premium product
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Circularity Profile : N/A
    • Eu Rohs Directive : Compliant with Exemptions
  • Complementary
    • Height : 43.00 in
    • Branch Circuit Breaker Rated Current : 200 A
    • Bypass Type : class 320 || no bypass
    • Service Feed Location : UG
    • Bus Rated Current : 200.0 A
    • Electrical Connection : studs, line side || feed-thru lugs, service ground
    • Number Of Circuits : 16
    • Number Of Spaces : 8
    • Short-Circuit Current : 25 kA
    • Number Of Tandem Circuit Breakers : 8
    • Hub Type : A-L
    • Meter Socket Type : ringed
    • Service Disconnect Rated Current : 200 A
    • Line Rated Current : 400 A
    • Awg Gauge : AWG 4...250 kcmil aluminium)service ground || AWG 4...250 kcmil copper)service ground
    • Width : 28.25 in
    • Depth : 7.87 in
    • Network Number Of Phases : 1
    • Device Composition : service disconnect (ordered separately)
    • Device Mounting : surface || semi flush with field installed flange kit
  • Specifications
    • Range Of Product : QO
    • Product Or Component Type : Meter Mains
