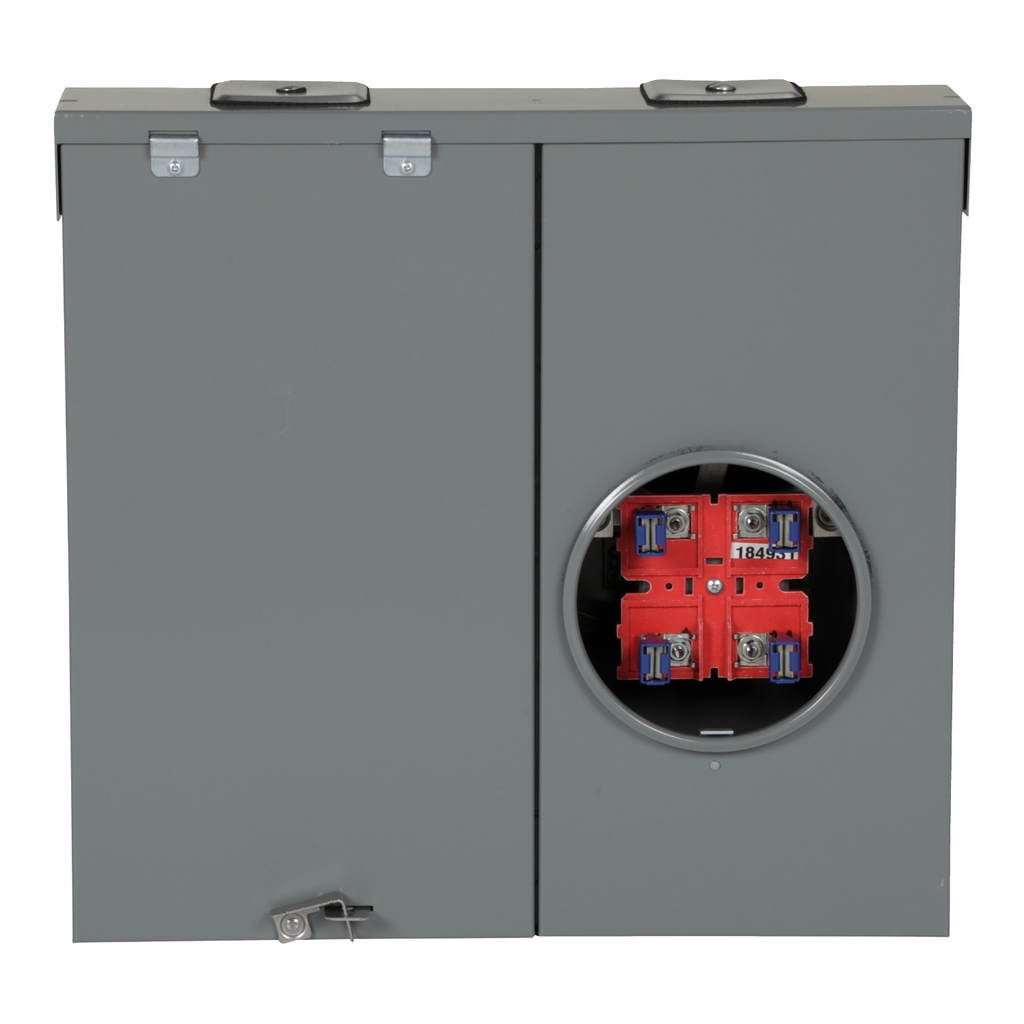

Meter mains, QO, CSED, ringed socket, 200A, surface mount, no bypass

METER MAIN RING TYPE SURFACE 2

SQDCM200S CM200S 785901291763
299.43 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Meter mains, QO, CSED, ringed socket, 200A, surface mount, no bypass-2
  • Country of Origin: Mexico
  • Number of Spaces: 0
  • Warranty Length: 18 mth
Square D™ Meter Mains are single phase power distribution panels used in residential applications where local codes require service disconnects to be located outside the dwelling. The meter socket supports a standard utility meter and a main disconnect breaker which provides a time and space saving solution for contractors and installers. Meter mains are surface mount with provisions. This is for the field installation of the service disconnect(s) that feed devices downstream. Interior subfeed load centers are typically used with these. This CSED is a QO ring type, class 320 socket with no bypass, and underground feed. With a current rating of 200A, this product has a short circuit current rating of 10kA. This unit is supplied with a factory installed QOM2-VH main breaker. Main lug interior option is also available. Devices meet the Electric Utility Service Equipment Requirements Committee (EUSERC) standards, Federal Specifications W-P-115C for government housing.
QTY
  • Product Description
  • Features
  • Specifications
Square D™ Meter Mains are single phase power distribution panels used in residential applications where local codes require service disconnects to be located outside the dwelling. The meter socket supports a standard utility meter and a main disconnect breaker which provides a time and space saving solution for contractors and installers. Meter mains are surface mount with provisions. This is for the field installation of the service disconnect(s) that feed devices downstream. Interior subfeed load centers are typically used with these. This CSED is a QO ring type, class 320 socket with no bypass, and underground feed. With a current rating of 200A, this product has a short circuit current rating of 10kA. This unit is supplied with a factory installed QOM2-VH main breaker. Main lug interior option is also available. Devices meet the Electric Utility Service Equipment Requirements Committee (EUSERC) standards, Federal Specifications W-P-115C for government housing.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Electrical Connection
    • lugs, line side
    • lugs, service ground
  • Accessories
    • A100
    • A125
    • A150
    • A200
    • A250
    • ACP
    • 5J
  • Persona Type Names
    • End User
    • Contractor
    • Original Equipment Manufacturer
  • Persona Type Ids
    • EU
    • LC
    • OM
  • Service Feed Location
    • OH
    • UG
  • AWG Gauge
    • AWG 4...250 kcmil aluminium/copper)line side
    • AWG 8...AWG 2/0 2 aluminium/copper)service ground
  • Product Certifications
    • UL E-6294
  • Complementary Attributes
    • Service Disconnect Rated Current : 200 A
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-18
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 2534
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : A - SELECTED - PCE ONLY (Migration)
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • H And D Enrichment Class 3 : Meter enclosures
    • H And D Enrichment Class 4 : Combination service entrance device
    • Energy Efficiency Optimized : False
    • Meter Socket Type : ringed
    • Network Number Of Phases : 1
    • Number Of Spaces : 0
    • Number Of Tandem Circuit Breakers : 0
    • Package Weight Lbs : 12.351 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Meter Mains
    • Range Of Product : QO
    • Returnability : Yes
    • Sustainable Packaging : No
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2509019EN
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : Meter Mains
    • Range Of Product : QO
  • Output Attributes
    • Bypass Type : no bypass
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=357197&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2509019EN
    • EU ROHS Directive : Compliant with Exemptions
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2509019EN
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
